TUNCMATIK UPS Изчерпан

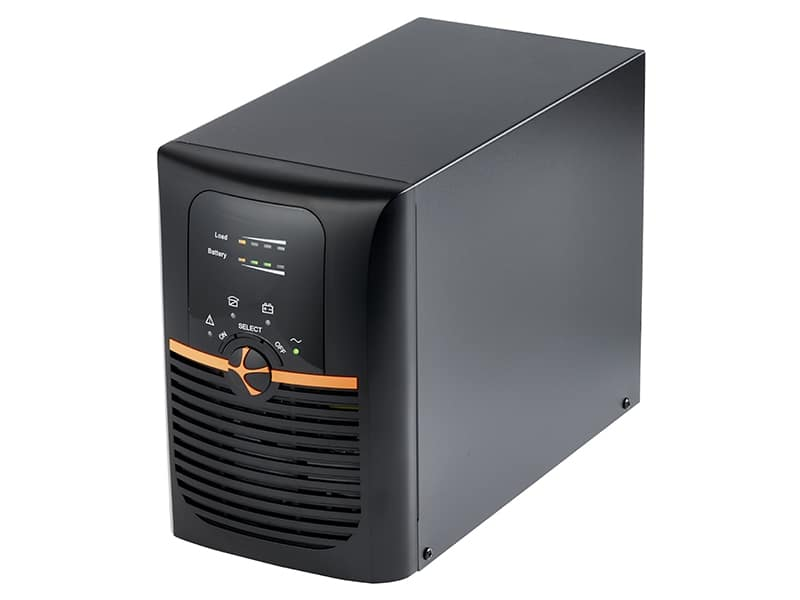

TUNCMATIK NEWTECH PRO3 1KVA
EAN:
242,50 €
Цена с включено ДДС
Наложен платеж или банков превод Защитено SSL плащане
Доставка утре до 18:00 при поръчка до 16:00 днес
Основни характеристики
Capacity
1000VA / 1000W
Battery
Standard Model:;Battery Type: 12V 9AH;Battery Numbers: 2;Recharge Time: 4 hours recover to 90% capacity (Typical);Charging Current: 1.5A (Max);Charging Voltage: 27.4VDC ±%1;Long Run Model:;Battery Numbers: 2;Charging Current: 1.0A / 2.0A / 4.0A / 6.0A / 8.0A;Charging Voltage: 27.4 VDC ±%1
Input
Nominal Voltage: 200 / 208 / 220 / 230 / 240 VAC;Voltage Range:;Low Line Transfer: 160VAC ±5% @ 100% - 80% load, 140VAC ±5% @ 80% - 70% load, 120VAC ±5% @ 70% - 60% load, 110VAC ±5% @ 60% - 0 (<35°C);High Line Transfer: 300VAC ±5%;Frequency Range: 40Hz ~ 70 Hz;Phase: Single phase with ground;Power Factor: ≥0.99 @ nominal voltage (input voltage);THDi: 220-230VAC'da ≤%5
Output
Output voltage: 200 / 208 / 220 / 230 / 240 VAC;Power Factor: 1;AC Voltage Regulation: ±1% (Batt. Mode);Frequenc Range:;Synchronized Mode: 47 ~ 53 Hz or 57 ~ 63 Hz;Battery Mode: 50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz;Overload: %105 - %110: UPS shuts down after 10min , %110 - %130: UPS shuts down after 1min , >%130: UPS shuts down after 3sec (<35°C);Crest Ratio: 3:1;Transfer Time: ≤%2 (linear load), ≤%4 (non-linear load);Waveform: Pure Sinewave
Type
Online
| Capacity | 1000VA / 1000W |
| Battery | Standard Model:;Battery Type: 12V 9AH;Battery Numbers: 2;Recharge Time: 4 hours recover to 90% capacity (Typical);Charging Current: 1.5A (Max);Charging Voltage: 27.4VDC ±%1;Long Run Model:;Battery Numbers: 2;Charging Current: 1.0A / 2.0A / 4.0A / 6.0A / 8.0A;Charging Voltage: 27.4 VDC ±%1 |
| Input | Nominal Voltage: 200 / 208 / 220 / 230 / 240 VAC;Voltage Range:;Low Line Transfer: 160VAC ±5% @ 100% - 80% load, 140VAC ±5% @ 80% - 70% load, 120VAC ±5% @ 70% - 60% load, 110VAC ±5% @ 60% - 0 (<35°C);High Line Transfer: 300VAC ±5%;Frequency Range: 40Hz ~ 70 Hz;Phase: Single phase with ground;Power Factor: ≥0.99 @ nominal voltage (input voltage);THDi: 220-230VAC'da ≤%5 |
| Output | Output voltage: 200 / 208 / 220 / 230 / 240 VAC;Power Factor: 1;AC Voltage Regulation: ±1% (Batt. Mode);Frequenc Range:;Synchronized Mode: 47 ~ 53 Hz or 57 ~ 63 Hz;Battery Mode: 50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz;Overload: %105 - %110: UPS shuts down after 10min , %110 - %130: UPS shuts down after 1min , >%130: UPS shuts down after 3sec (<35°C);Crest Ratio: 3:1;Transfer Time: ≤%2 (linear load), ≤%4 (non-linear load);Waveform: Pure Sinewave |
| Type | Online |
| Тегло | 9.8 kg |
| Dimensions | 145 x 282 x 220 mm |
| Environment | Operating Temeperature: 0 - 50°C;Humidity: %20-90 (non-condensing);Noise Level: <50dBA @ 1 meter |
| Уебсайт на производителя | https://tuncmatik.com/bg/%D0%BF%D1%80%D0%BE%D0%B4%D1%83%D0%BA%D1%82%D0%B8/newtech-pro3-one-led-1-kva/ |
| Производител | TUNCMATIK |
