FORTRON UPS В наличност

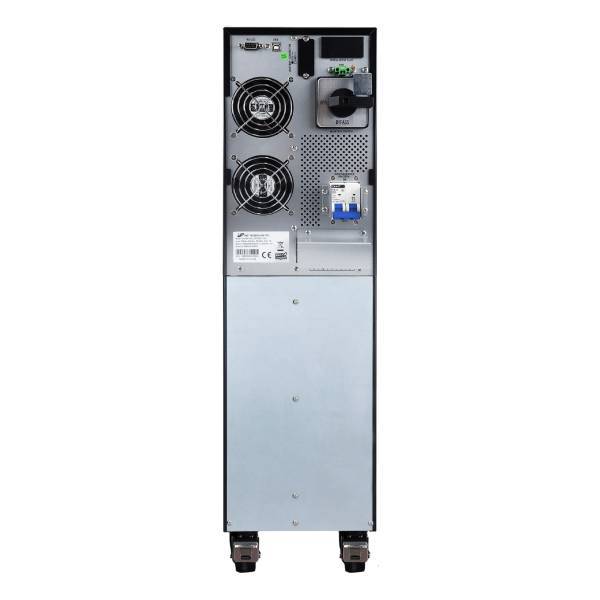

FORTRON CHAMP 10K TOWER ONLINE
EAN:
1519,52 €
Цена с включено ДДС
Наложен платеж или банков превод Защитено SSL плащане
Доставка утре до 18:00 при поръчка до 16:00 днес
Основни характеристики
Capacity
10000 VA / 9000W
Battery
Battery Type 9Ah / 10Ah;Numbers 16 – 20pcs(Adjustable);Charging Current (max) 1A, 2A, 4A, 6A (Adjustable,6A only for 16pcs baterries);Charging Voltage 218.4V ±1%(based on 16pcs batteries)
Input
Input Voltage Range 110-300 VAC (50% load), 176-300VAC (100% load);Input Frequency 46Hz ~ 54Hz or 56Hz ~ 64Hz;Power Factor ≥ 0.99 @ Nominal Voltage (100% load)
Output
Output Voltage 208/220/230/240 VAC;AC Voltage Regulation ±1%;Output Frequency Range 46Hz ~ 54Hz or 56Hz ~ 64Hz;Current Crest Ratio 3:1;Harmonic Distortion ≤ 3 % THD (Linear Load), ≤ 5 % THD (Non-linear Load);Output Transfer Time (Typical) Zero (AC to DC), Zero (Inverter to Bypass);Output Waveform (Batt. Mode) Pure Sinewave;
Other
Management Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/ 2003/ 2008/ 2012/ 2016, Linux, and MAC
| Capacity | 10000 VA / 9000W |
| Battery | Battery Type 9Ah / 10Ah;Numbers 16 – 20pcs(Adjustable);Charging Current (max) 1A, 2A, 4A, 6A (Adjustable,6A only for 16pcs baterries);Charging Voltage 218.4V ±1%(based on 16pcs batteries) |
| Input | Input Voltage Range 110-300 VAC (50% load), 176-300VAC (100% load);Input Frequency 46Hz ~ 54Hz or 56Hz ~ 64Hz;Power Factor ≥ 0.99 @ Nominal Voltage (100% load) |
| Output | Output Voltage 208/220/230/240 VAC;AC Voltage Regulation ±1%;Output Frequency Range 46Hz ~ 54Hz or 56Hz ~ 64Hz;Current Crest Ratio 3:1;Harmonic Distortion ≤ 3 % THD (Linear Load), ≤ 5 % THD (Non-linear Load);Output Transfer Time (Typical) Zero (AC to DC), Zero (Inverter to Bypass);Output Waveform (Batt. Mode) Pure Sinewave; |
| Other | Management Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/ 2003/ 2008/ 2012/ 2016, Linux, and MAC |
| Alarms | Battery Mode Sounding every 4 seconds;Low Battery Sounding every second;Overload Sounding twice per second;Fault Continuously sounding |
| Standarts | Safety / EMC IEC 62040-1(Safety) / IEC 62040-2 (EMC) / CE |
| Dimensions | 442 x 190 x 318mm (DxWxH) |
| Environment | Humidity 0-95 % RH @ 0- 40°C (non-condensing);Noise Level Less than 58dB @ 1 Meter |
| Model | Champ TW 10K |
| Уебсайт на производителя | https://energy.fsp-europe.com/product/champ-tower-10k/ |
