PSU GB GP-UD1300GM PG5

Name: PSU GB GP-UD1300GM PG5
Brand: GIGABYTE
SKU: 4719331553388
Price: 252.76 EUR
Availability: InStock

EAN: 4719331553388

252,76 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Форм-фактор

Intel Form Factor ATX 12V v3.0

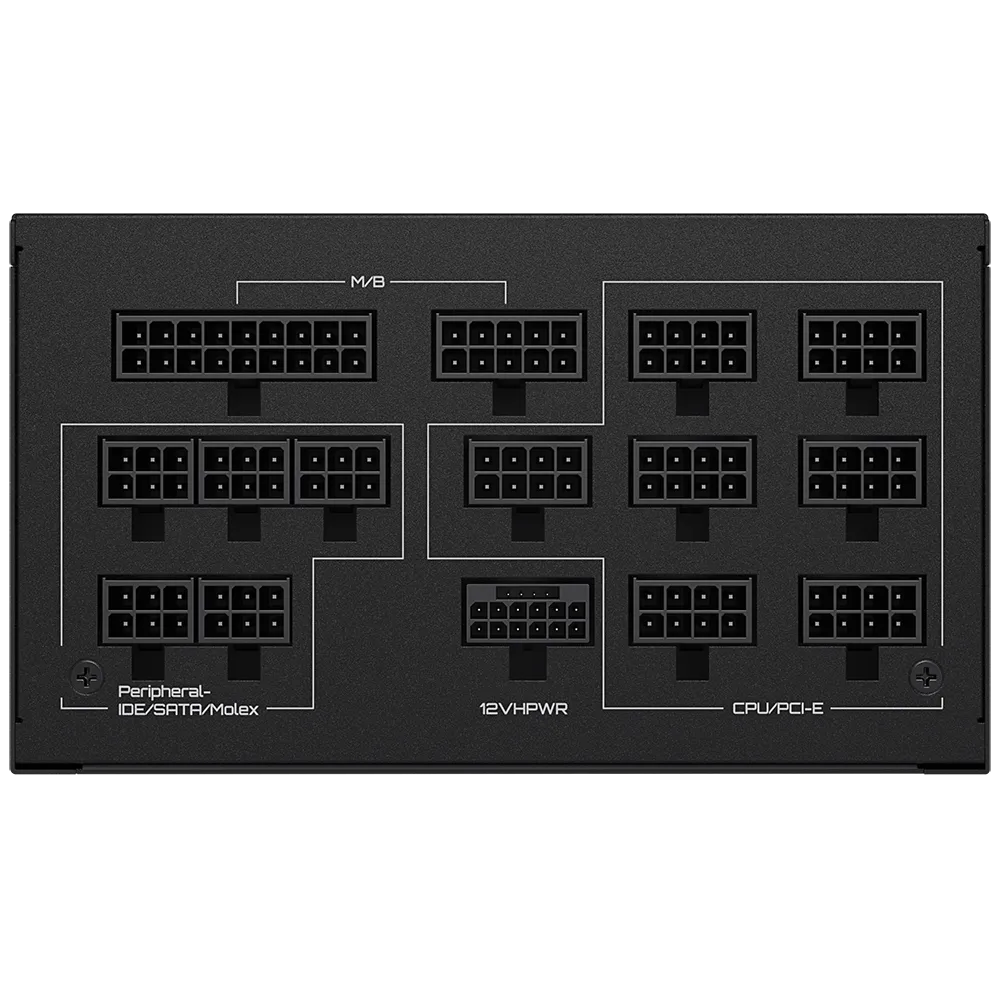

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1;CPU/EPS 4+4 Pin x 2 : 650mm*2;PCIe 16 Pin x 1: 700mm*1;PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2;SATA x 12 : 650mm+150mm+150mm+150mm*3;4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2

AC Input

Input Voltage: 100-240 Vac (full range);Input Current: 15-6.5A;Input Frequency: 60-50 Hz

PFC type

Active PFC (>0.9 typical)

Dimensions

150 x 160 x 86 mm

Форм-фактор	Intel Form Factor ATX 12V v3.0
Connectors	ATX/MB 20+4 Pin x 1 : 610mm1;CPU/EPS 4+4 Pin x 2 : 650mm2;PCIe 16 Pin x 1: 700mm1;PCIe 6+2 Pin x 8 : 650mm+150mm3, 650mm2;SATA x 12 : 650mm+150mm+150mm+150mm3;4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
AC Input	Input Voltage: 100-240 Vac (full range);Input Current: 15-6.5A;Input Frequency: 60-50 Hz
PFC type	Active PFC (>0.9 typical)
Dimensions	150 x 160 x 86 mm
Power [Watts]	1300W, Power Good Signal: 100-150ms

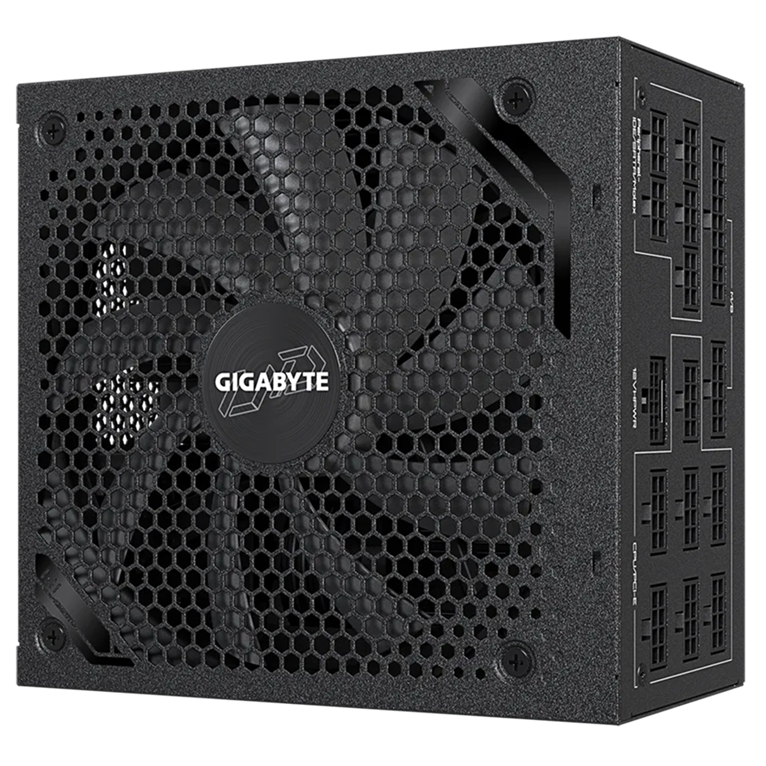

Fan information	140mm double ball bearing fan
Cable information	Flat, All black
Safety and Environmental	Protection: OVP/OPP/SCP/UVP/OCP/OTP;Efficiency: 90% at typical load
Model	GP-UD1300GM PG5
Уебсайт на производителя	https://www.gigabyte.com/Power-Supply/GP-UD1300GM-PG5#kf
