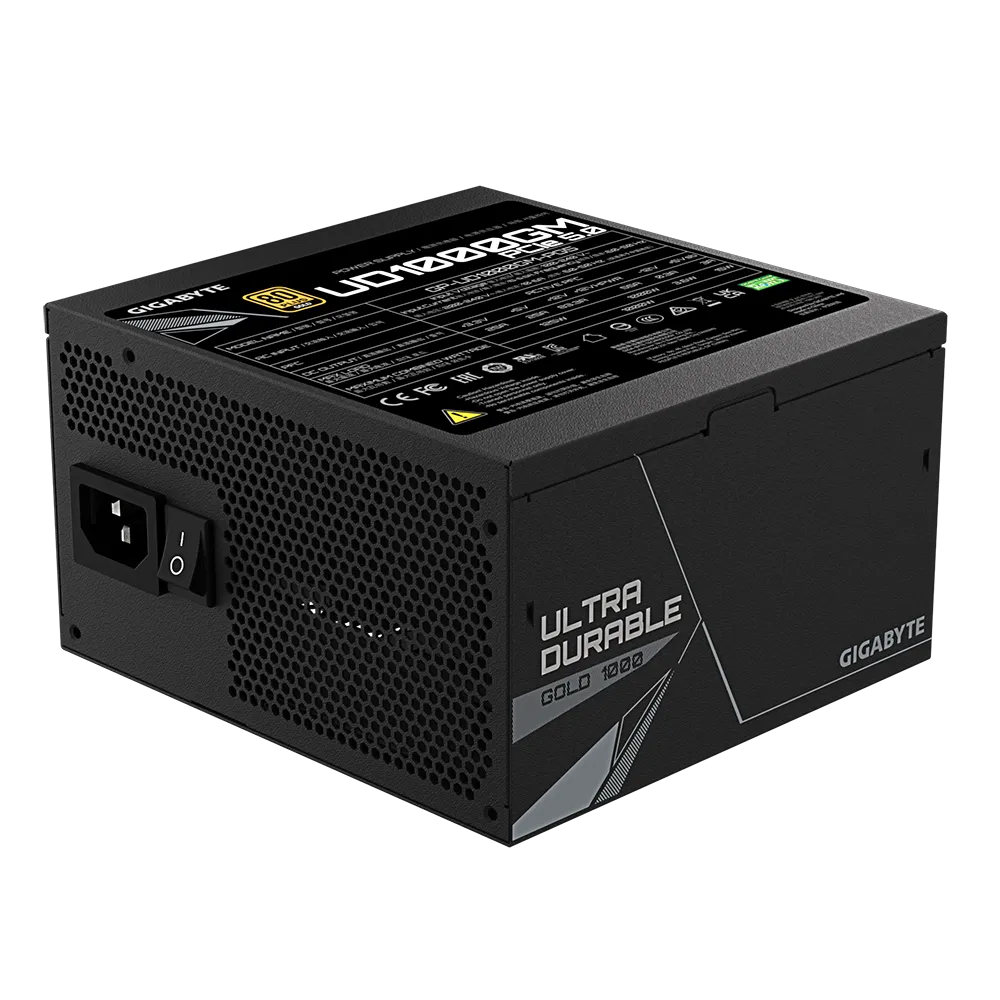

PSU GB GP-UD1000GM PG5

Name: PSU GB GP-UD1000GM PG5
Brand: GIGABYTE
SKU: 4719331553234
Price: 177.79 EUR
Availability: OutOfStock

EAN: 4719331553234

177,79 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Форм-фактор

Intel Form Factor ATX 12V

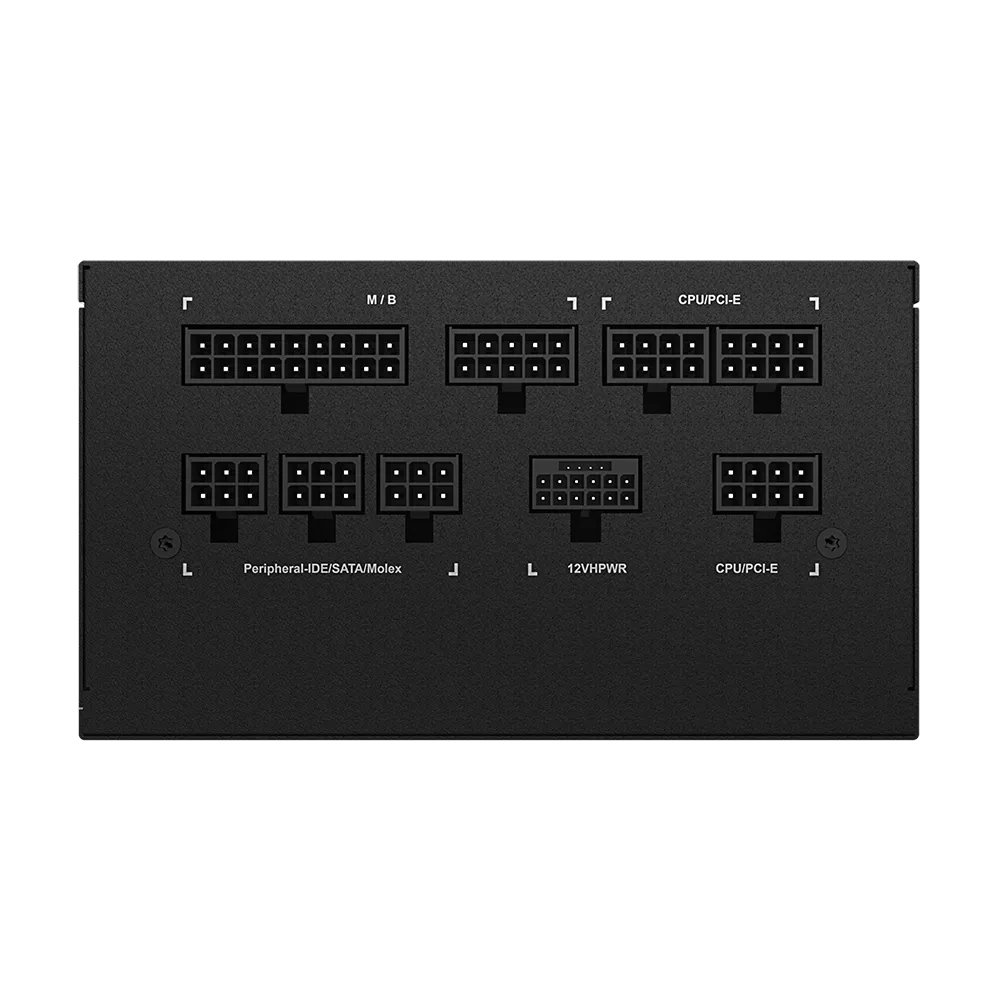

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1;CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1;PCI-e 16 Pin x 1: 700mm*1;PCI-e 6+2 Pin x 4 : 600mm+150mm*2;SATA x 8 :600mm+150mm+150mm+150mm*2;4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

AC Input

Input Voltage: 100-240 Vac (full range);Input Current: 15-6.5A;Input Frequency: 60-50 Hz

PFC type

Active PFC (>0.9 typical)

Dimensions

150 x 140 x 86 mm

Форм-фактор	Intel Form Factor ATX 12V
Connectors	ATX/MB 20+4 Pin x 1 : 610mm1;CPU/EPS 4+4 Pin x 2 : 600mm+200mm1;PCI-e 16 Pin x 1: 700mm1;PCI-e 6+2 Pin x 4 : 600mm+150mm2;SATA x 8 :600mm+150mm+150mm+150mm2;4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm1
AC Input	Input Voltage: 100-240 Vac (full range);Input Current: 15-6.5A;Input Frequency: 60-50 Hz
PFC type	Active PFC (>0.9 typical)
Dimensions	150 x 140 x 86 mm
Power [Watts]	1000W, Power Good Signal: 100-150ms

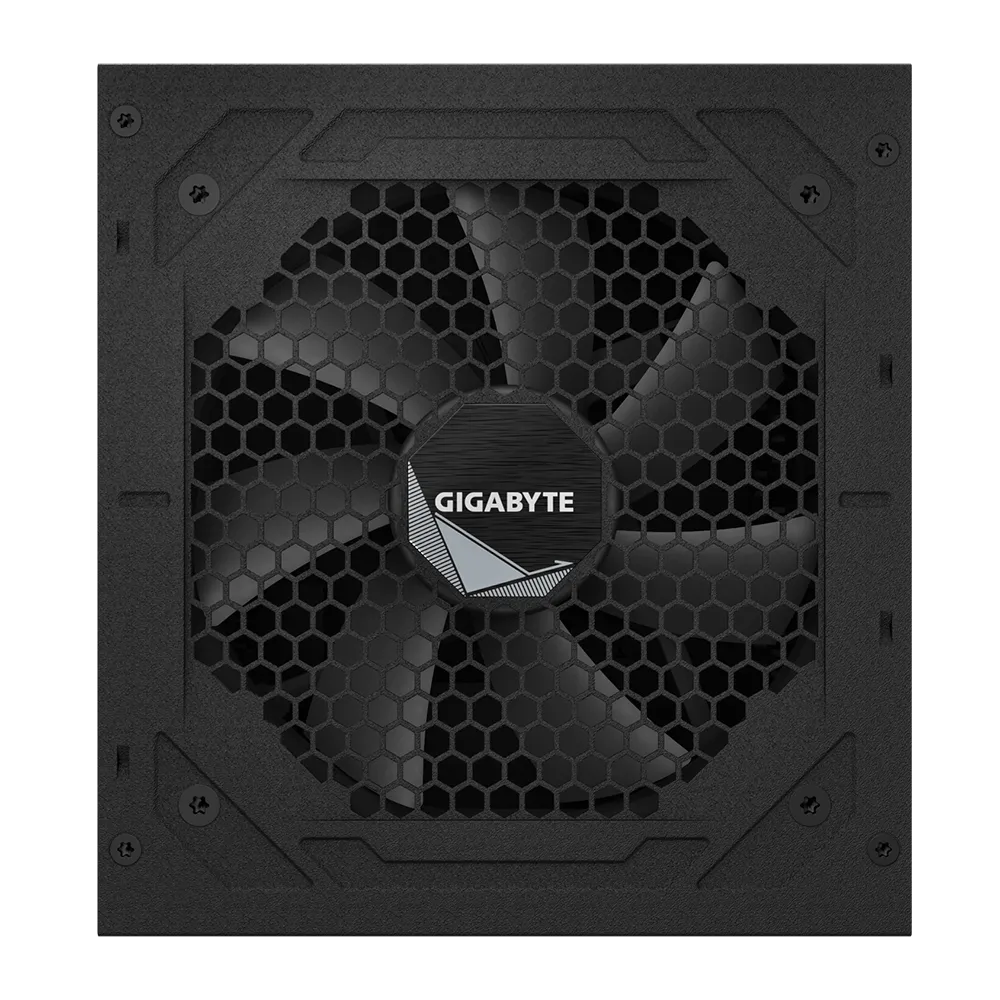

Fan information	120mm Hydraulic Bearing(HYB)fan
Cable information	Flat, All black
Safety and Environmental	Protection: OVP/OPP/SCP/UVP/OCP/OTP;Efficiency: 90% at typical load
Model	GP-UD1000GM PG5
Уебсайт на производителя	https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-rev-10#kf
