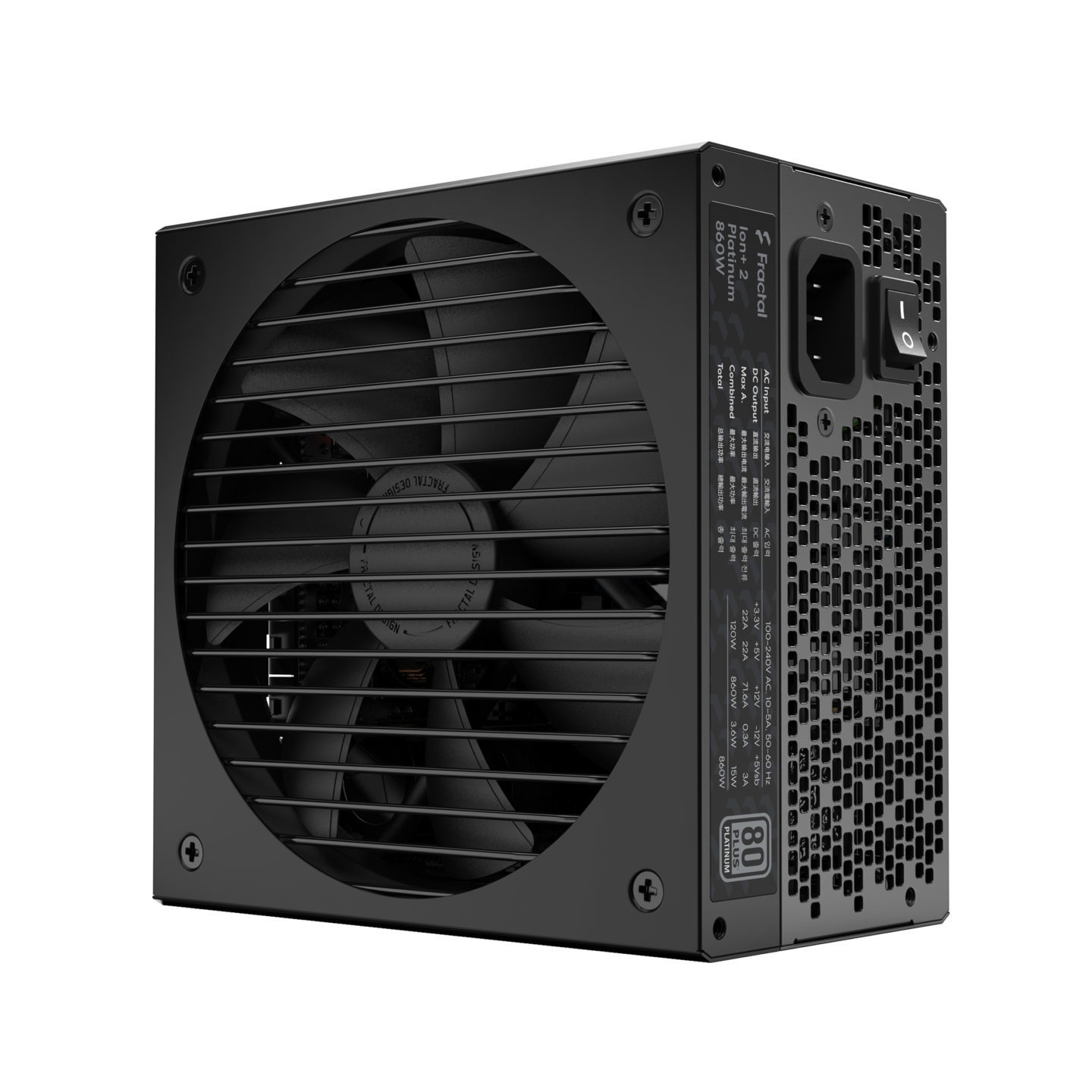

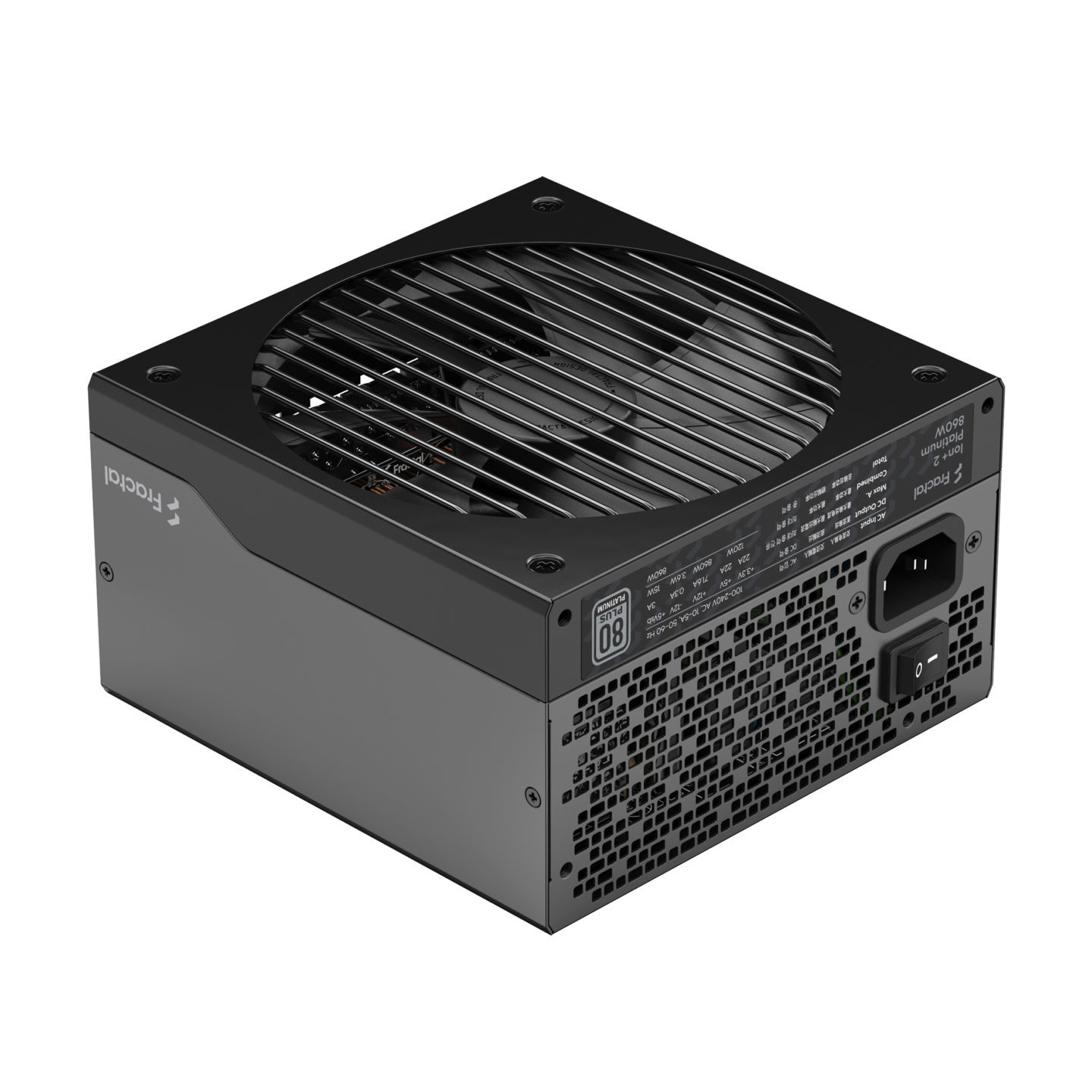

PSU FD ION+2 PLATINUM 860W ATX

Name: PSU FD ION+2 PLATINUM 860W ATX
Brand: FRACTAL DESIGN
Price: 189.58 EUR
Availability: OutOfStock

EAN:

189,58 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Connectors

ATX 24-pin: 1; ATX12V 4+4 pin / EPS12V 8-pin: 2; PCIe 6+2 pin: 6; SATA: 10; Peripheral: 4; ATX 20+4 pin: 600 mm; ATX 12V 4+4 pin: 700 mm; EPS12V 8-pin: 600 mm; PCIe 6+2 pin: 550 + 120 mm; SATA: 400+150+150+150 mm & 650+150mm; Peripheral: 400+150+150+150 mm

AC Input

Input voltage: 100-240V C; Input frequency: 50-60 Hz; Input current: 10A/5A

Features

Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection

DC Output

3.3V: 22A; 5V: 22A; 3.3V and 5V combined: 120W; 12V: 71.6A; -12V: 0.3A; +5Vsb: 3A; Total Power: 860W

Dimensions

150 x 150 x 86 mm

Connectors	ATX 24-pin: 1; ATX12V 4+4 pin / EPS12V 8-pin: 2; PCIe 6+2 pin: 6; SATA: 10; Peripheral: 4; ATX 20+4 pin: 600 mm; ATX 12V 4+4 pin: 700 mm; EPS12V 8-pin: 600 mm; PCIe 6+2 pin: 550 + 120 mm; SATA: 400+150+150+150 mm & 650+150mm; Peripheral: 400+150+150+150 mm
AC Input	Input voltage: 100-240V C; Input frequency: 50-60 Hz; Input current: 10A/5A
Features	Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
DC Output	3.3V: 22A; 5V: 22A; 3.3V and 5V combined: 120W; 12V: 71.6A; -12V: 0.3A; +5Vsb: 3A; Total Power: 860W
Dimensions	150 x 150 x 86 mm

Fan information	140 mm FDB bearing Fractal Design Dynamic series fan
Cable information	Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires
Safety and Environmental	ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb);CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Уебсайт на производителя	https://www.fractal-design.com/products/power-supplies/ion/ion-2-platinum-860w/Black/
