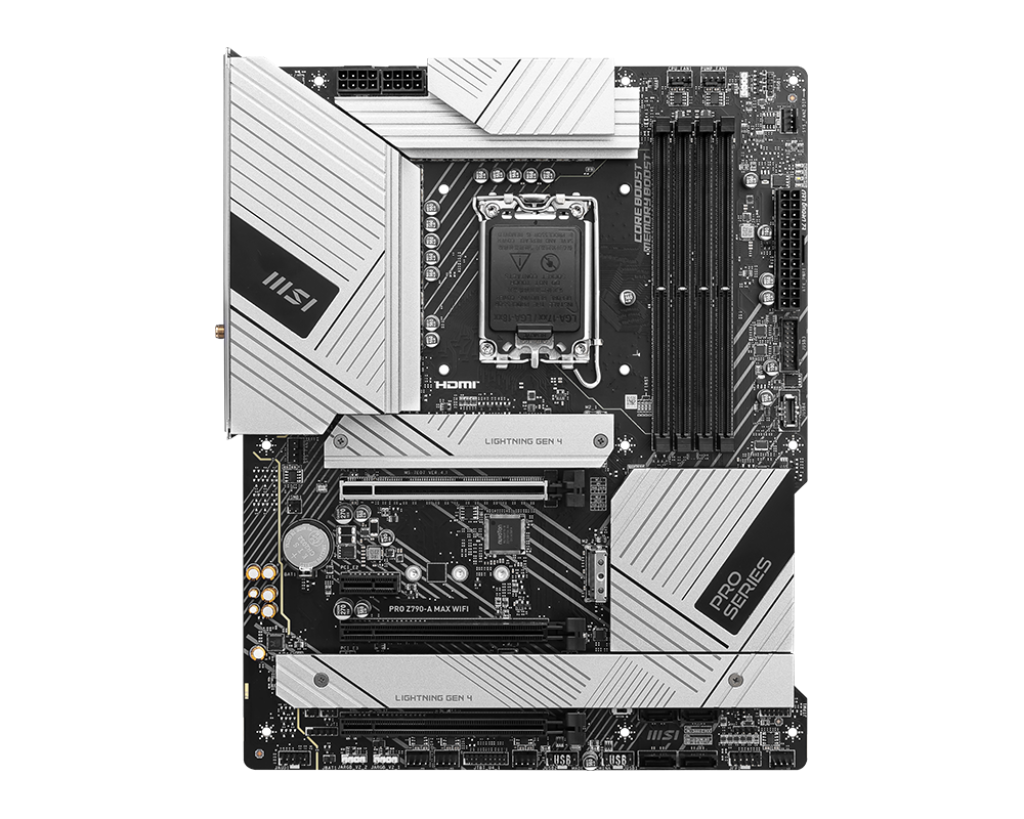

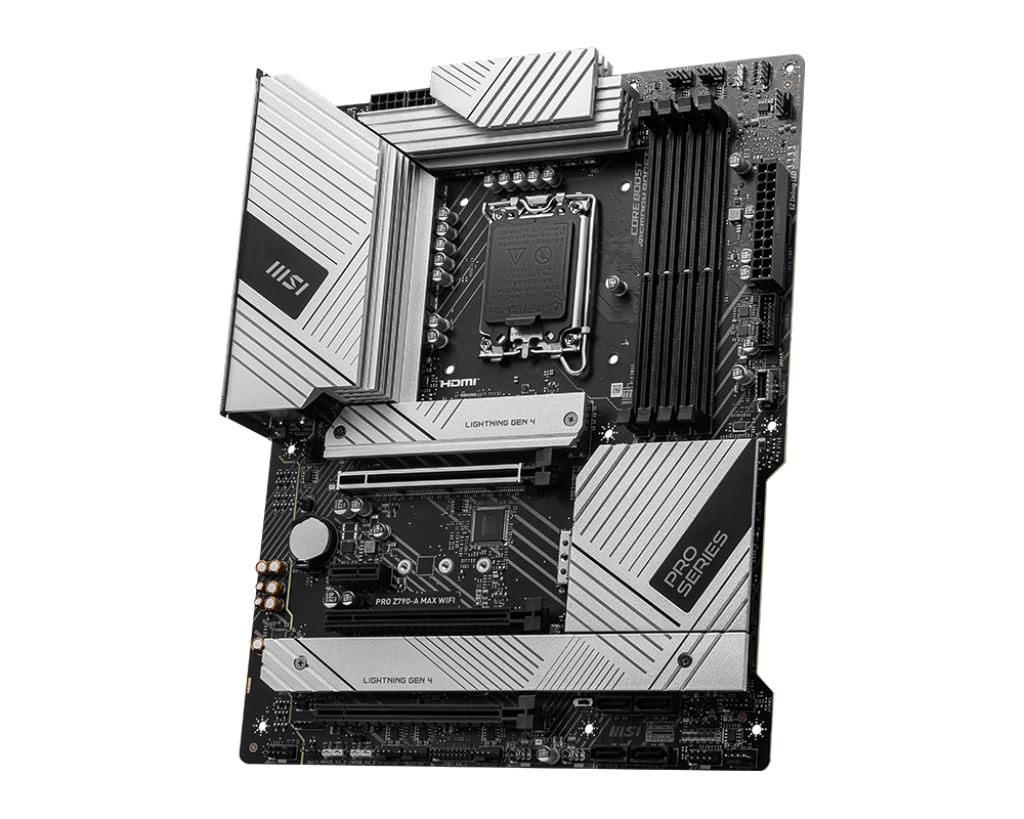

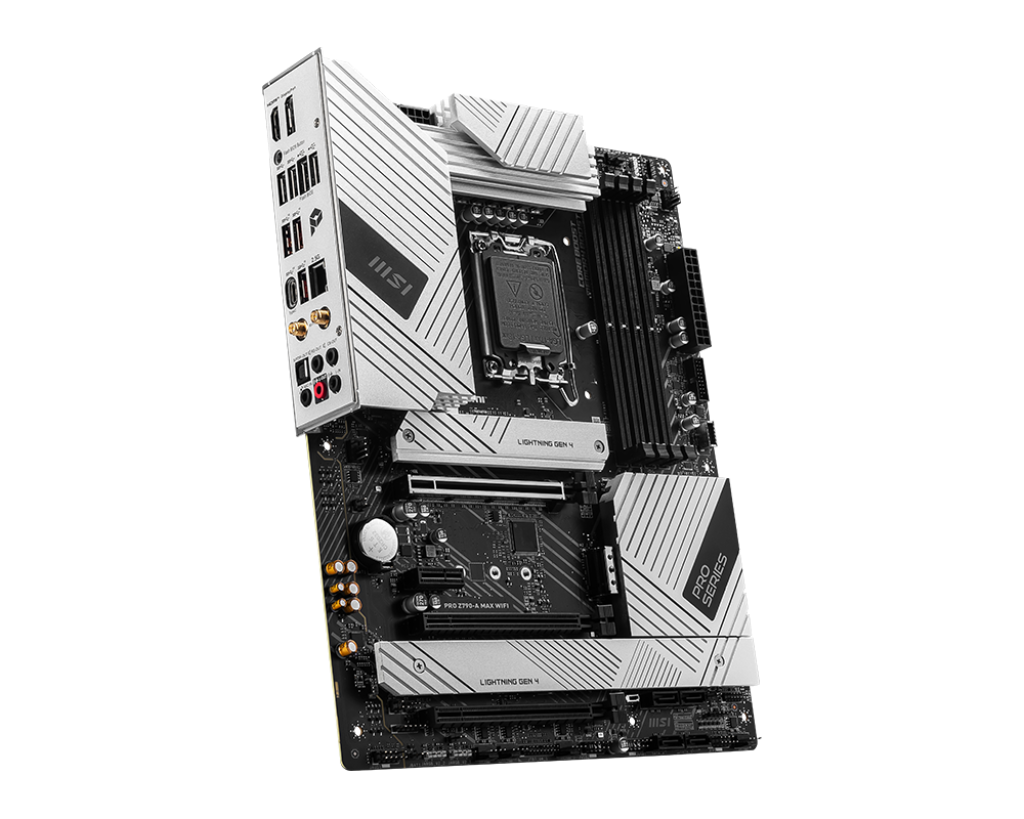

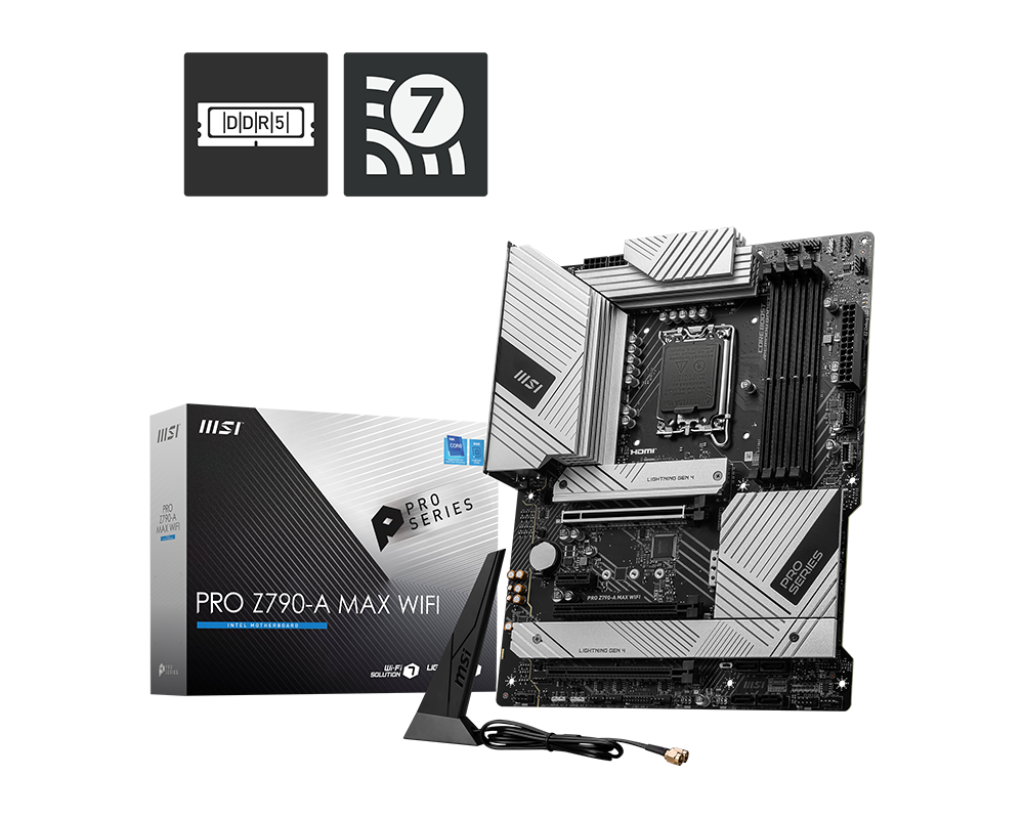

MSI PRO Z790-A MAX WIFI /1700

Name: MSI PRO Z790-A MAX WIFI /1700
Brand: MSI
SKU: 4711377139939
Price: 258.12 EUR
Availability: OutOfStock

EAN: 4711377139939

258,12 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Тип памет

4x DDR5 UDIMM, Maximum Memory Capacity 192GB; Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6600+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory

Гаранция

36 Months

Support for Windows® 11 64-bit

Lan

Intel® 2.5Gbps LAN

Audio

Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports S/PDIF output

Тип памет	4x DDR5 UDIMM, Maximum Memory Capacity 192GB; Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6600+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Гаранция	36 Months
OS	Support for Windows® 11 64-bit
Lan	Intel® 2.5Gbps LAN
Audio	Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports S/PDIF output
Other	Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth® 5.4**, MLO, 4KQAM
Съхранение	4x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 6x SATA 6G

Графика	1x HDMI™; Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz
Connectors	1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports; 1x USB4 card connector (JTBT_U4_1, supports RTD3)
Форм-фактор	ATX; 243.84mmx304.8mm

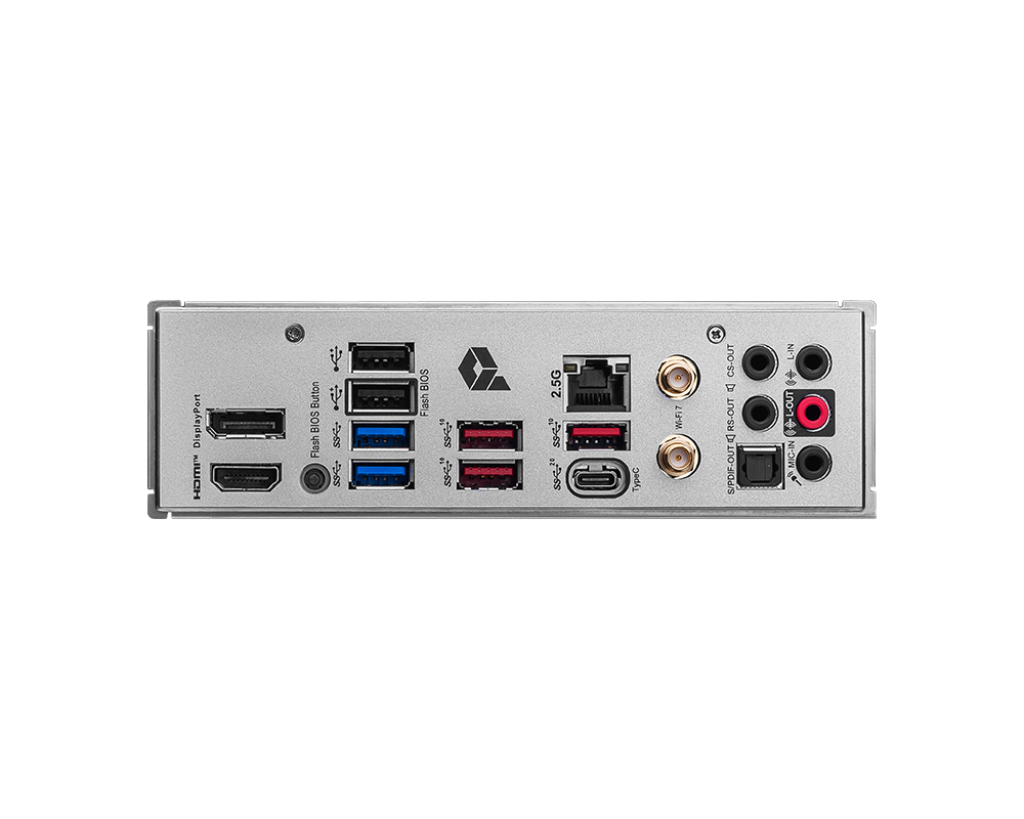

Rear panel I/O	DisplayPort; USB 2.0; 2.5G LAN; Wi-Fi / Bluetooth; Audio Connectors; HDMI™; Flash BIOS Button; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); S/PDIF-OUT
Expansion slots	3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Уебсайт на производителя	https://www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI/Specification
