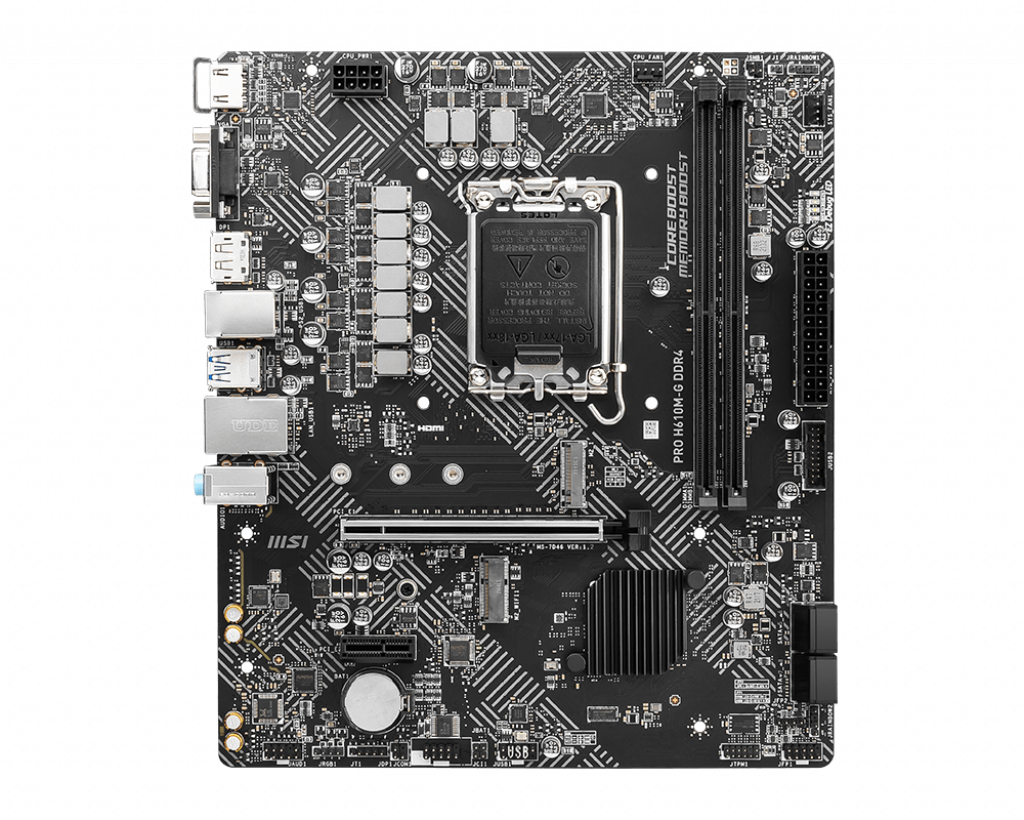

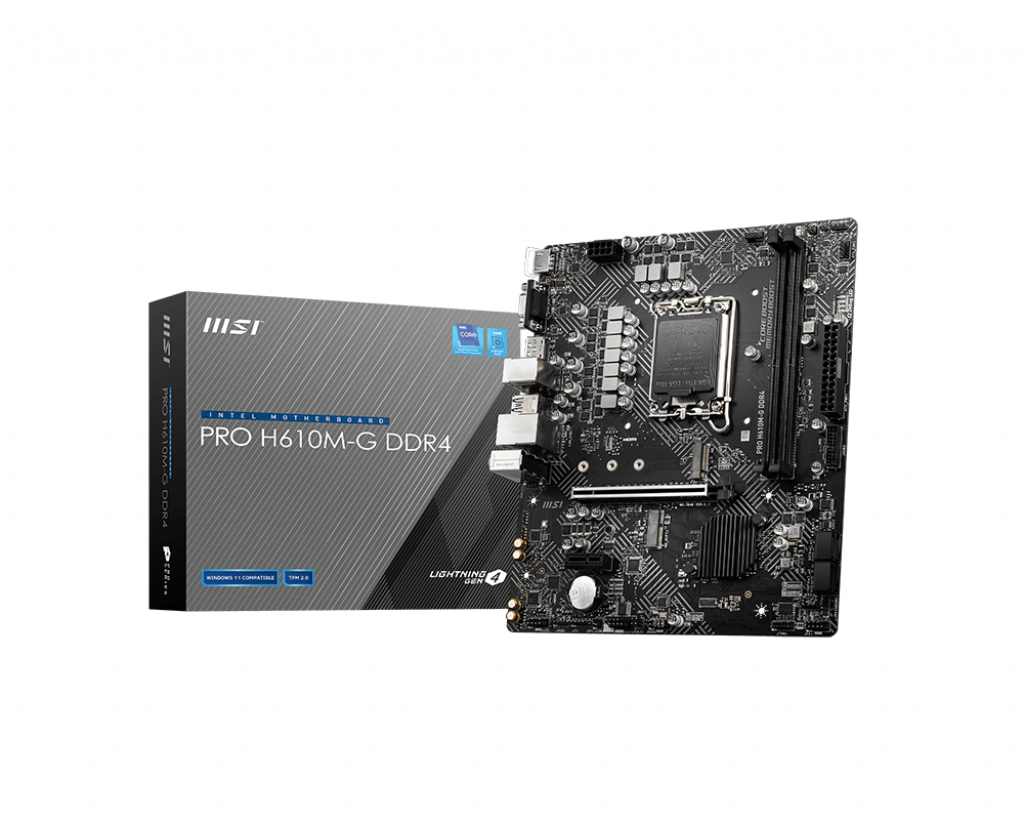

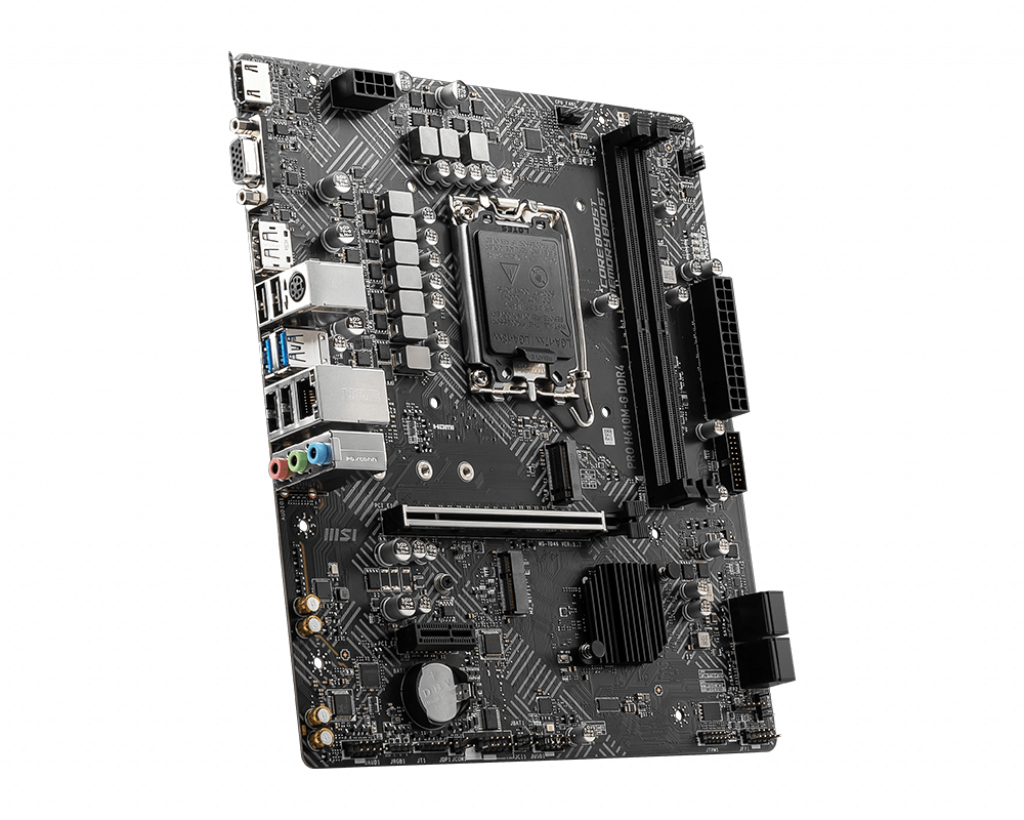

MSI PRO H610M-G DDR4 /LGA1700

Name: MSI PRO H610M-G DDR4 /LGA1700
Brand: MSI
SKU: 4719072925024
Price: 71.22 EUR
Availability: OutOfStock

EAN: 4719072925024

71,22 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® H610 Chipset

Графика

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1; x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2

Тип памет

2x DDR4 memory slots, support up to 64GB1; Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory

Expansion slots

1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot; Supports PCIe 3.0 x1; 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

Форм-фактор

mATX Form Factor; 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

Чипсет	Intel® H610 Chipset
Графика	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1; x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2
Тип памет	2x DDR4 memory slots, support up to 64GB1; Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory
Expansion slots	1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot; Supports PCIe 3.0 x1; 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
Форм-фактор	mATX Form Factor; 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Connectors	1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x Clear CMOS jumper; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LED; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector
Гаранция	36 Months

OS	Support for Windows® 11 64-bit
Lan	1x Intel® I219V 1Gbps LAN controller
Audio	Realtek® ALC892/ ALC897 Codec; 7.1-Channel High Definition Audio
Съхранение	4x SATA 6Gb/s ports1;1x M.2 slot (Key M, from chipset)1; Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Supports Intel® Smart Response Technology for Intel Core™ processors

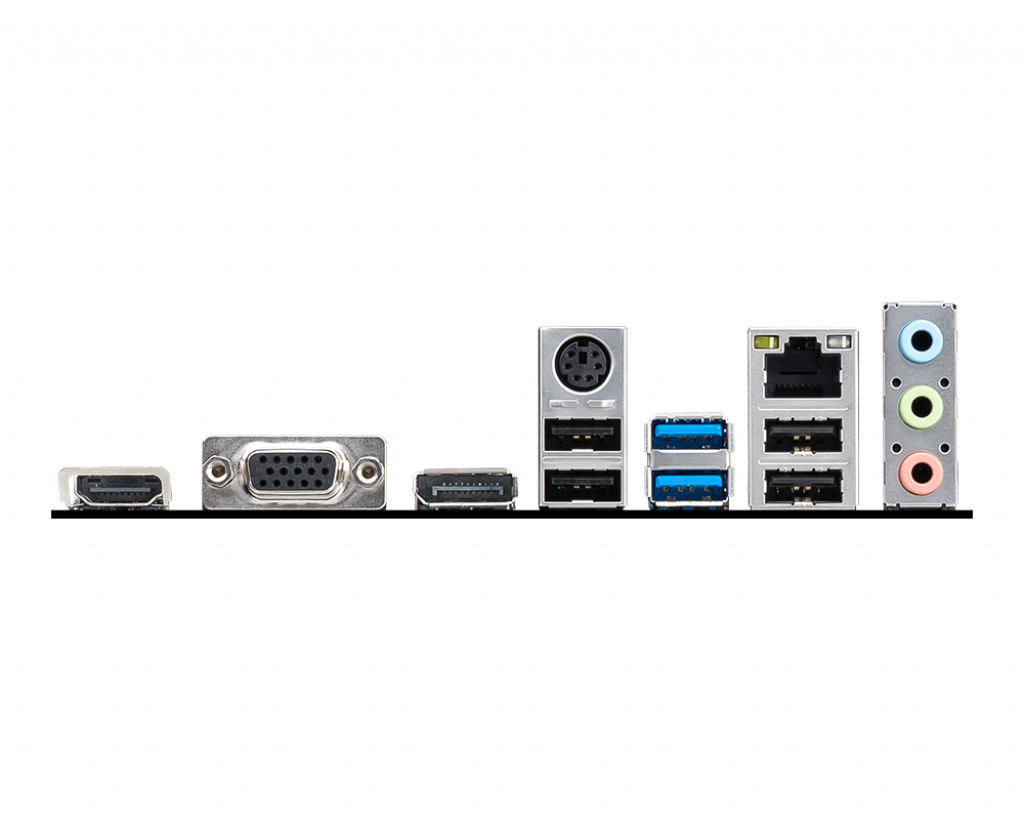

Rear panel I/O	HDMI; VGA; DisplayPort; Keyboard/Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0
Уебсайт на производителя	https://www.msi.com/Motherboard/PRO-H610M-G-DDR4/Specification
