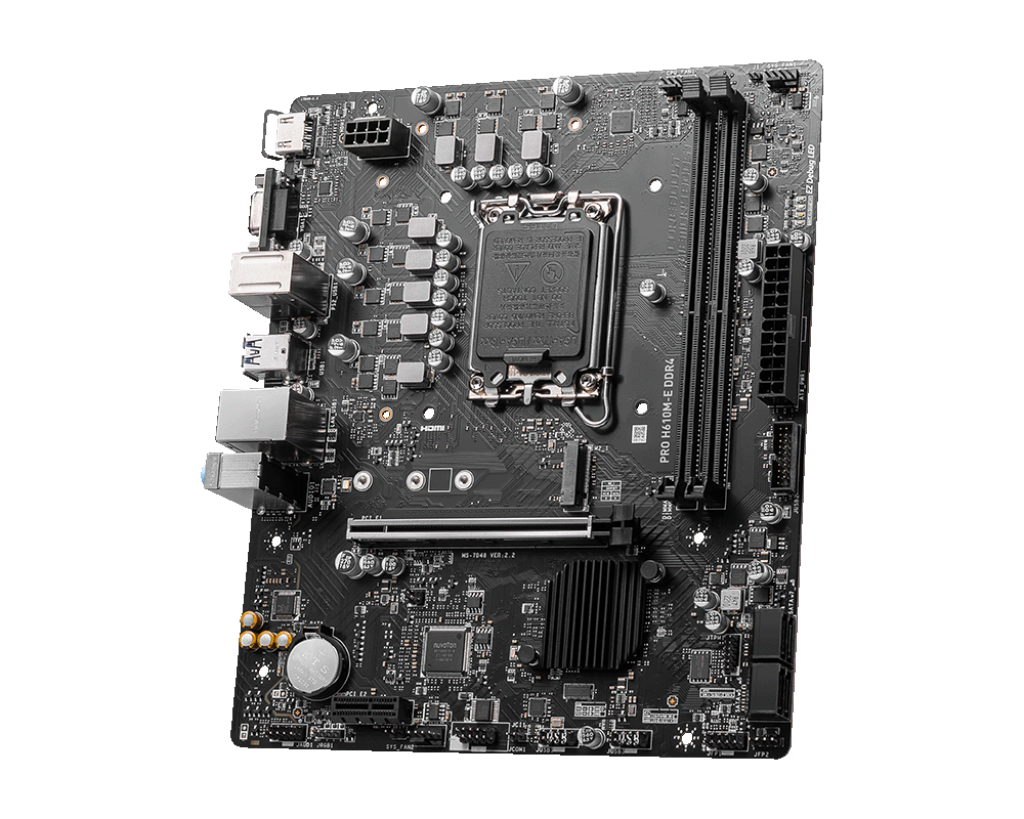

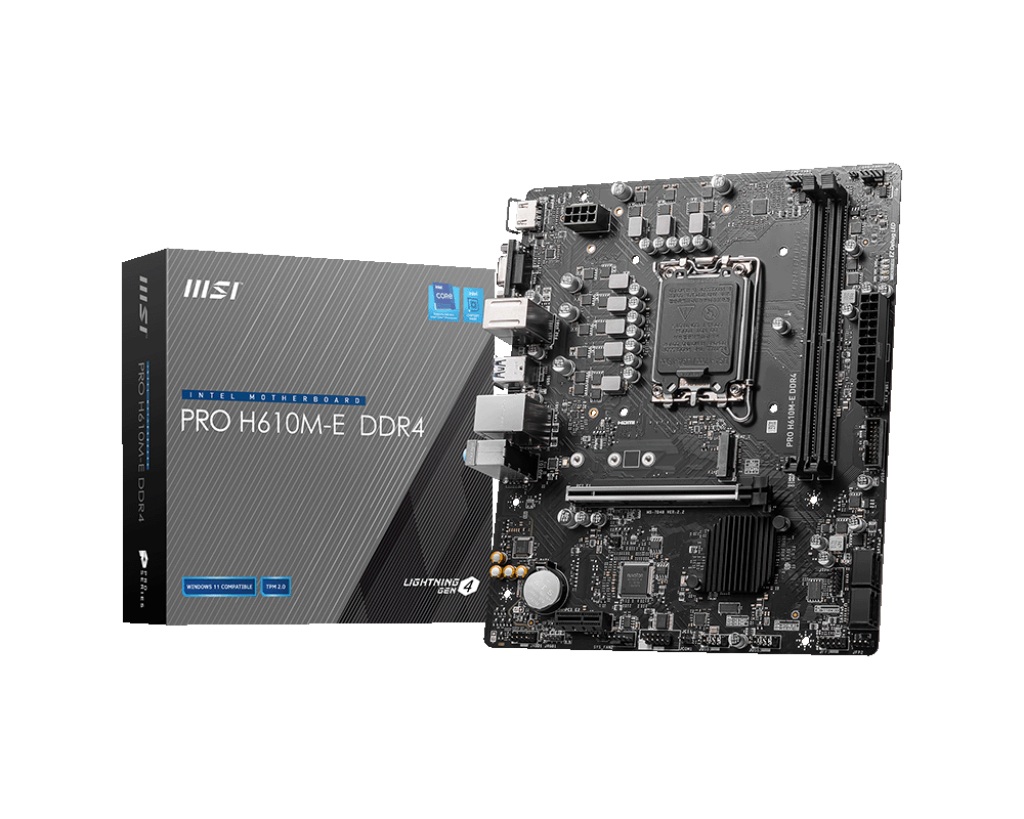

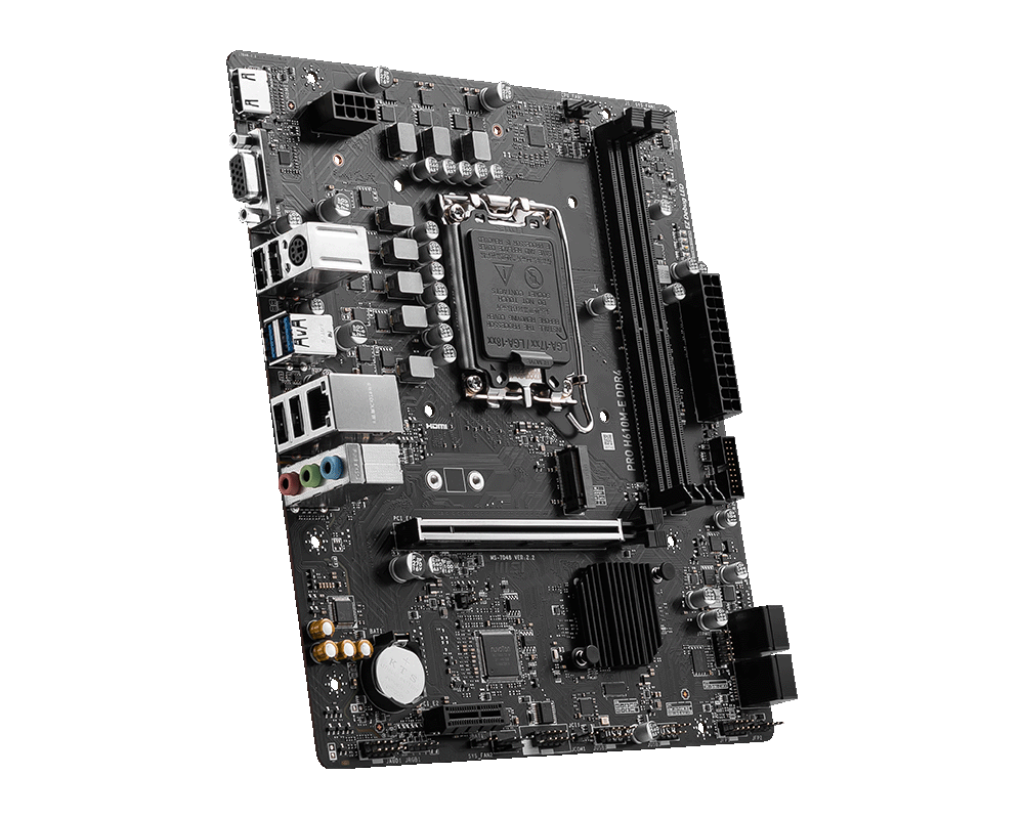

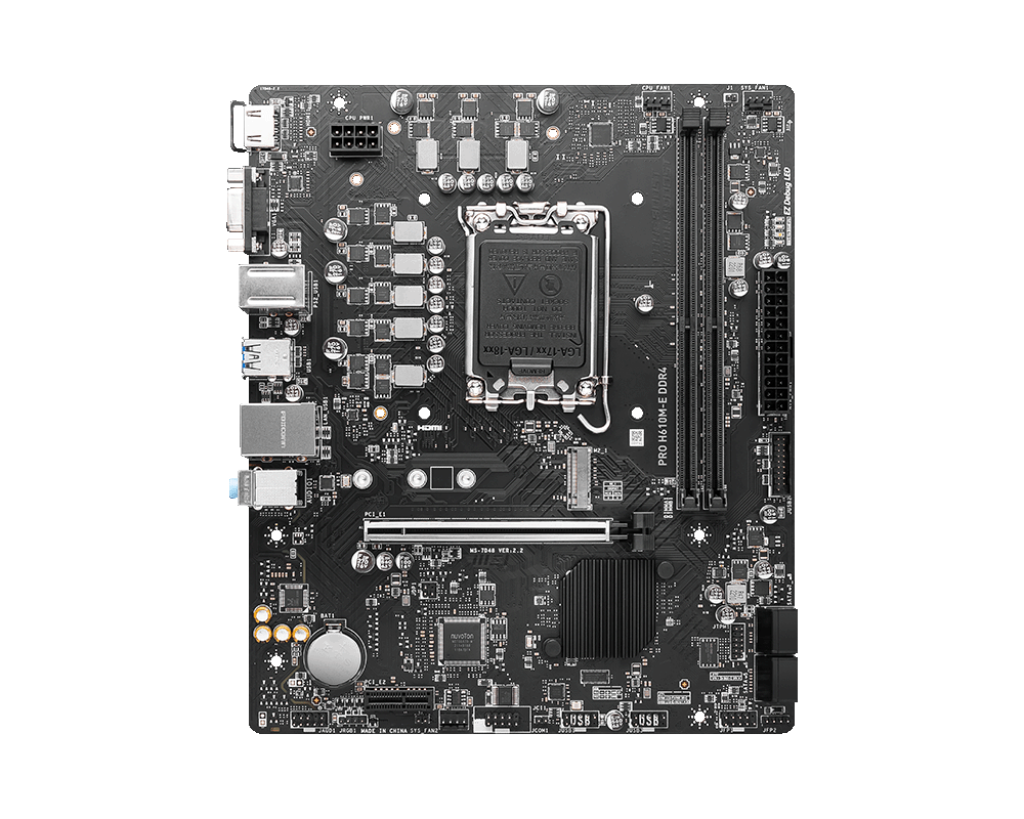

MSI PRO H610M-E DDR4 /LGA1700

Name: MSI PRO H610M-E DDR4 /LGA1700
Brand: MSI
SKU: 4711377002660
Price: 64.15 EUR
Availability: InStock

EAN: 4711377002660

64,15 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® H610 Chipset

Графика

1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2

Тип памет

2x DDR4 memory slots, support up to 64GB 1; Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory

Expansion slots

1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From H610 chipset); Supports PCIe 3.0 x1

Форм-фактор

M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Чипсет	Intel® H610 Chipset
Графика	1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
Тип памет	2x DDR4 memory slots, support up to 64GB 1; Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory
Expansion slots	1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From H610 chipset); Supports PCIe 3.0 x1
Форм-фактор	M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Connectors	4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper

Гаранция	36 Months
Lan	1x Realtek® RTL8111H 1Gbps LAN controller
Audio	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio

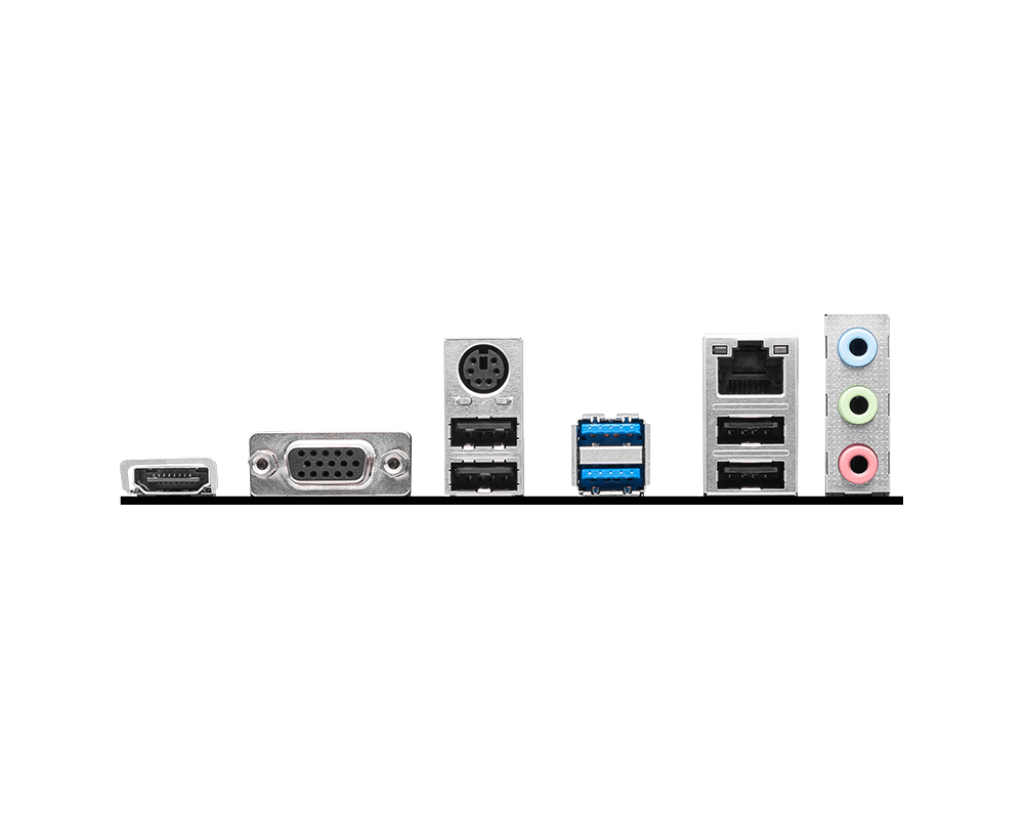

Rear panel I/O	HDMI™; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0
Уебсайт на производителя	https://www.msi.com/Motherboard/PRO-H610M-E-DDR4/Specification
