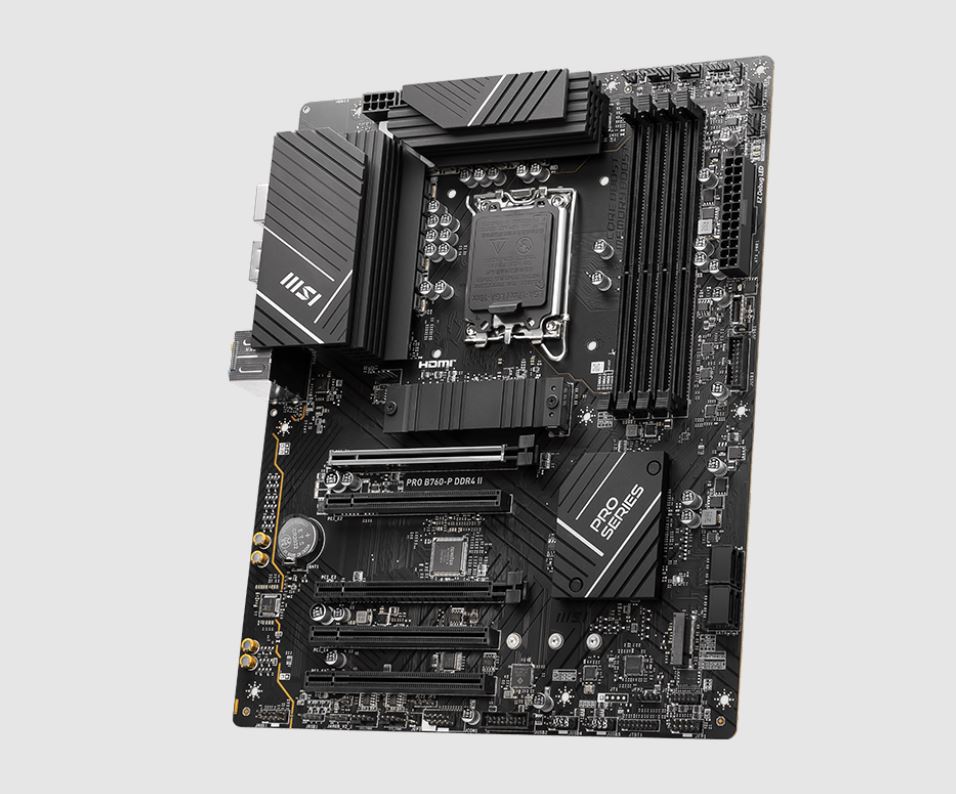

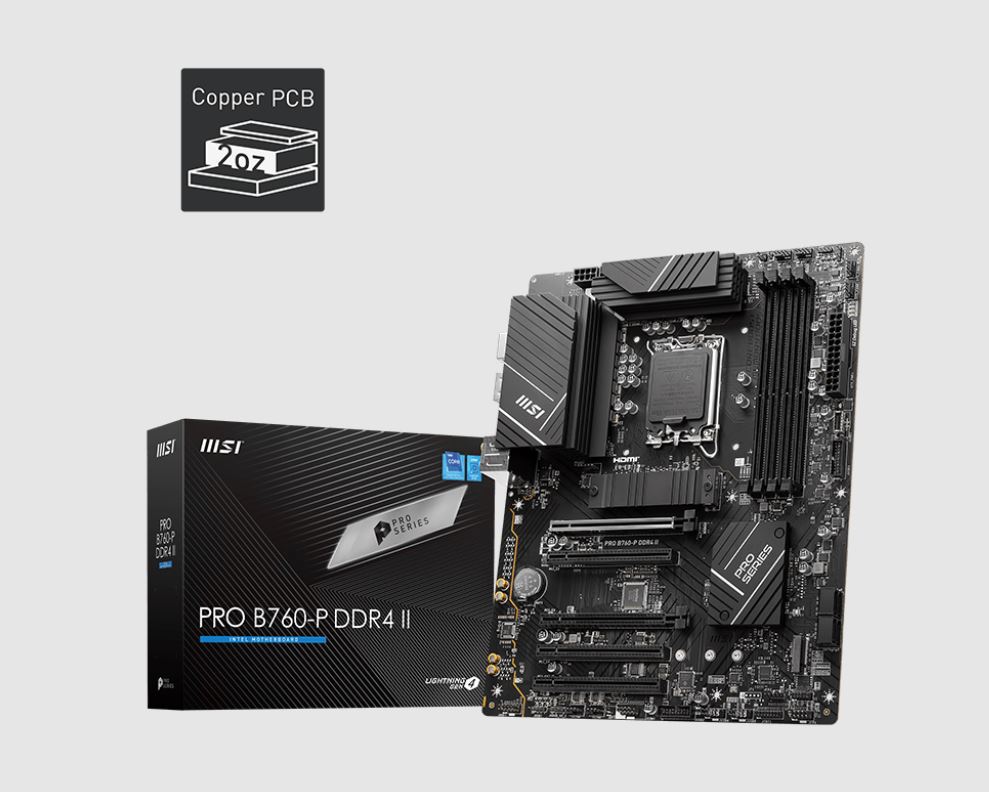

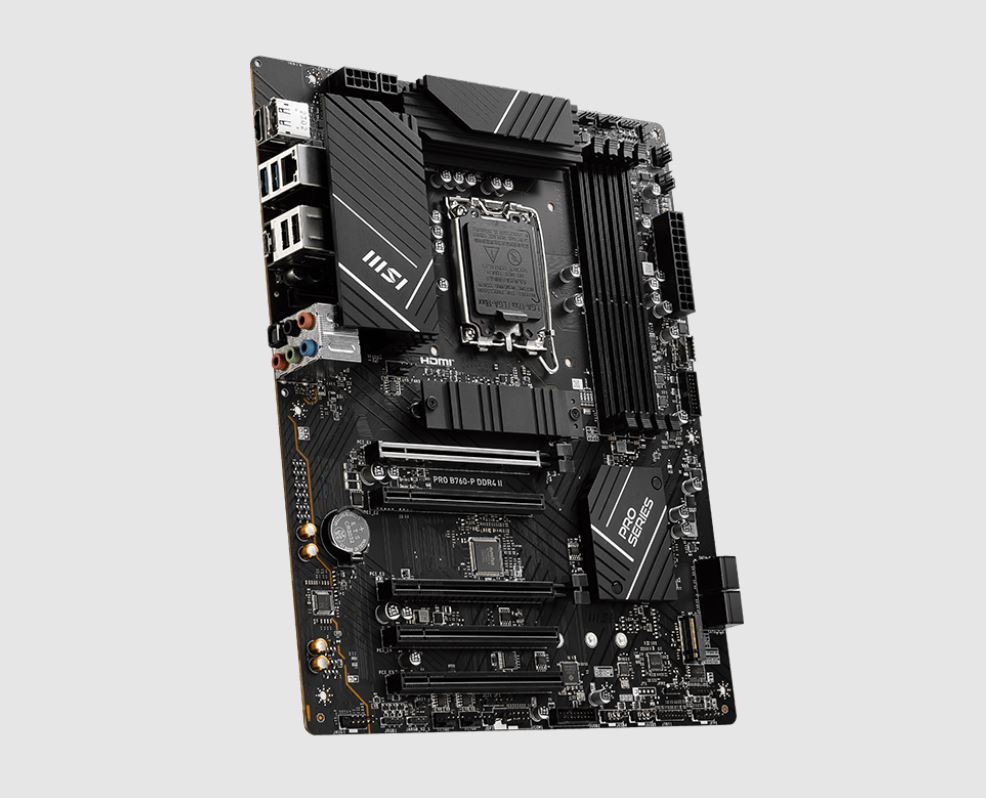

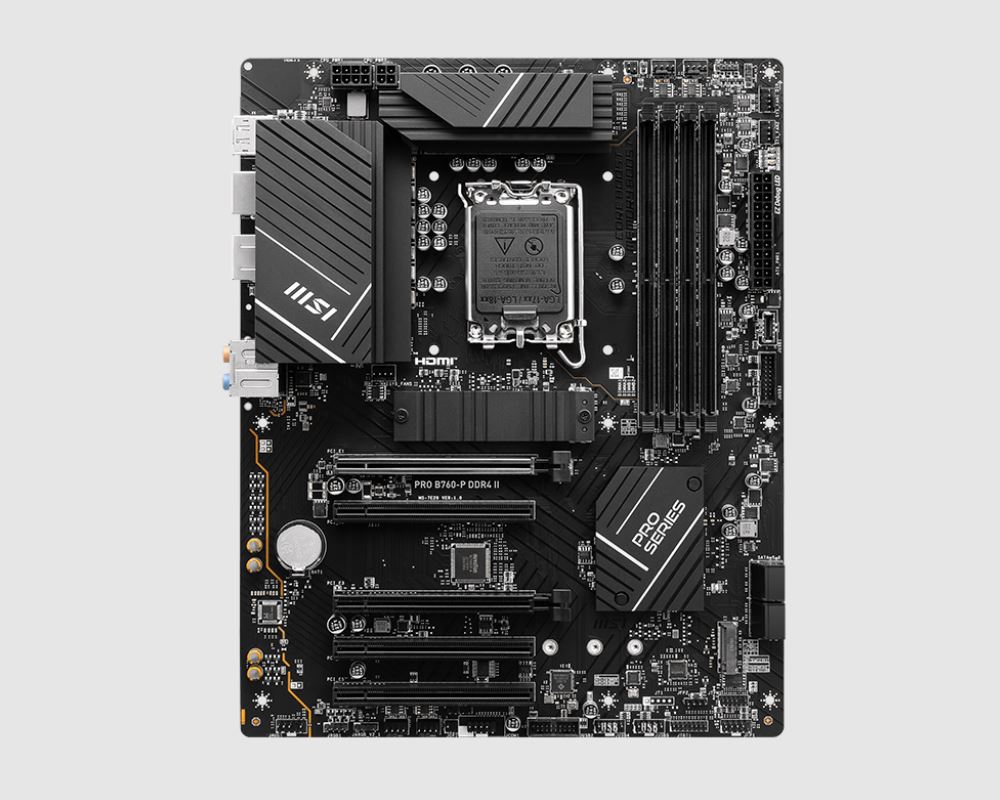

MSI PRO B760-P II

Name: MSI PRO B760-P II
Brand: MSI
SKU: 4711377193887
Price: 131.88 EUR
Availability: InStock

EAN: 4711377193887

131,88 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Socket

LGA 1700

Чипсет

INTEL B760

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

Графика

1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Тип памет

4x DDR5, Maximum Memory Capacity 256GB; Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory

Socket	LGA 1700
Чипсет	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Графика	1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Тип памет	4x DDR5, Maximum Memory Capacity 256GB; Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Expansion slots	5x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Форм-фактор	ATX, 243.84mmx304.8mm
Connectors	1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
OS	Support for Windows® 11 64-bit, Windows® 10 64-bit
Lan	Realtek® RTL8125BG 2.5G LAN

USB	2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type C (Rear)
BIOS	1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
Съхранение	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; 4x SATA 6G

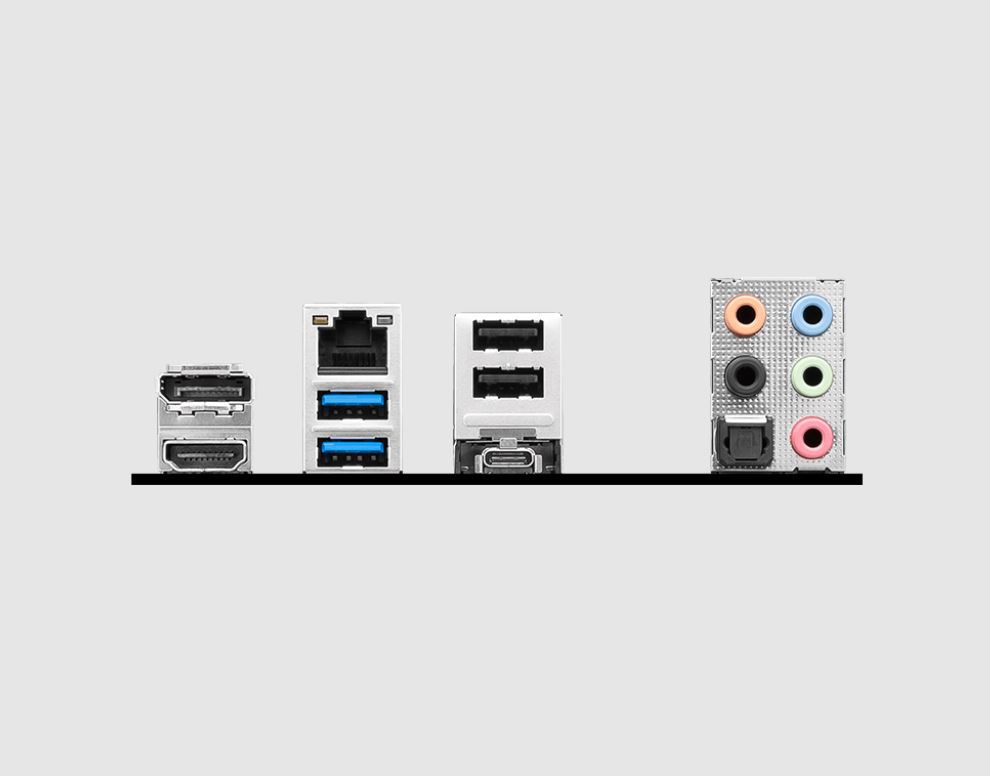

Rear panel I/O	DisplayPort; 2.5G LAN; USB 2.0; Audio Connectors; HDMI™; USB 5Gbps (Type-A); USB 10Gbps (Type-C); S/PDIF-OUT
Model	PRO B760-P II
Уебсайт на производителя	https://www.msi.com/Motherboard/PRO-B760-P-II/Overview
Производител	MSI
