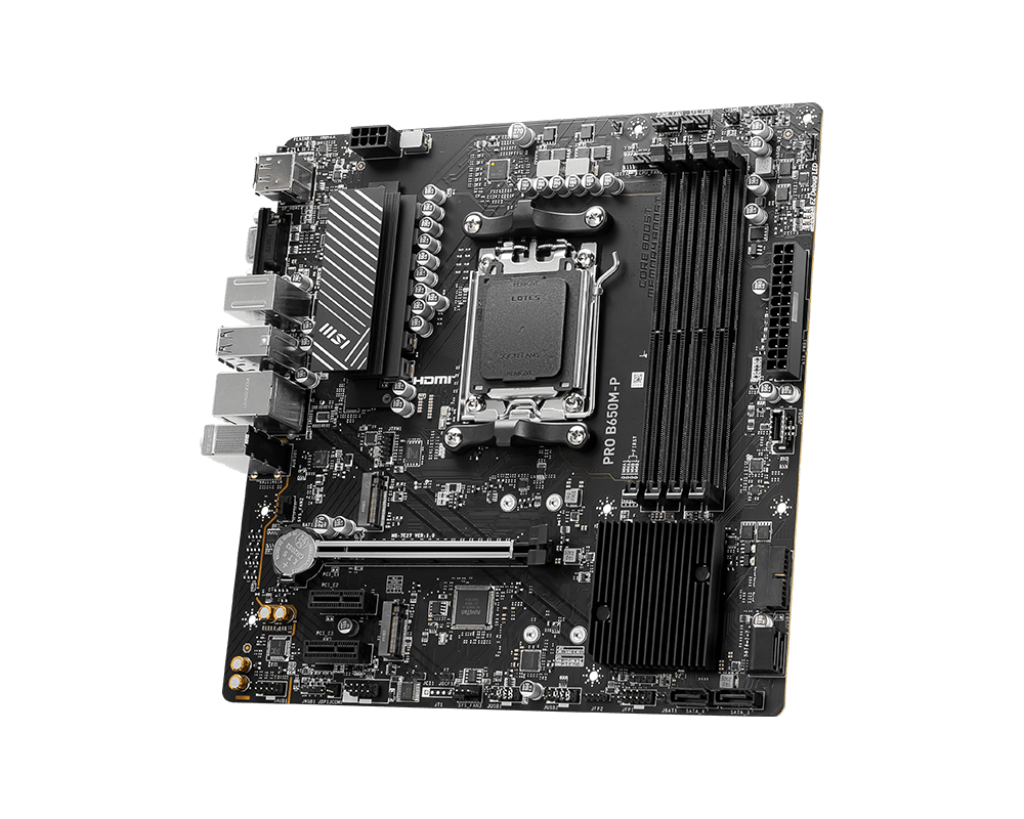

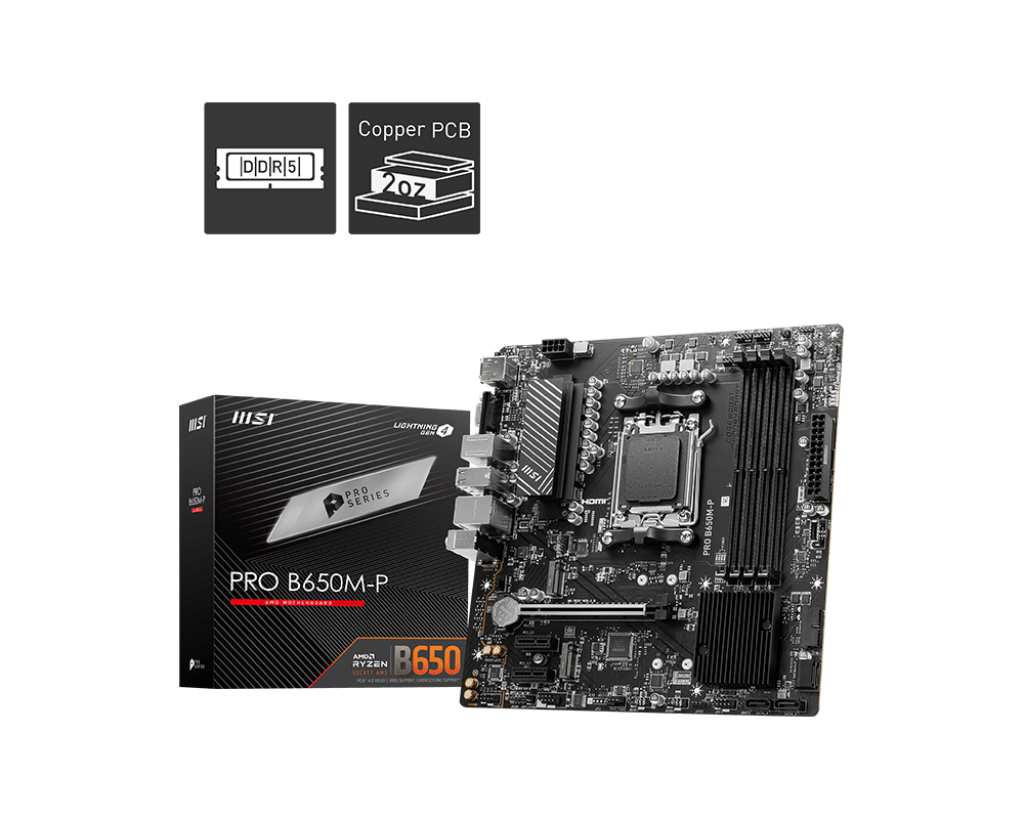

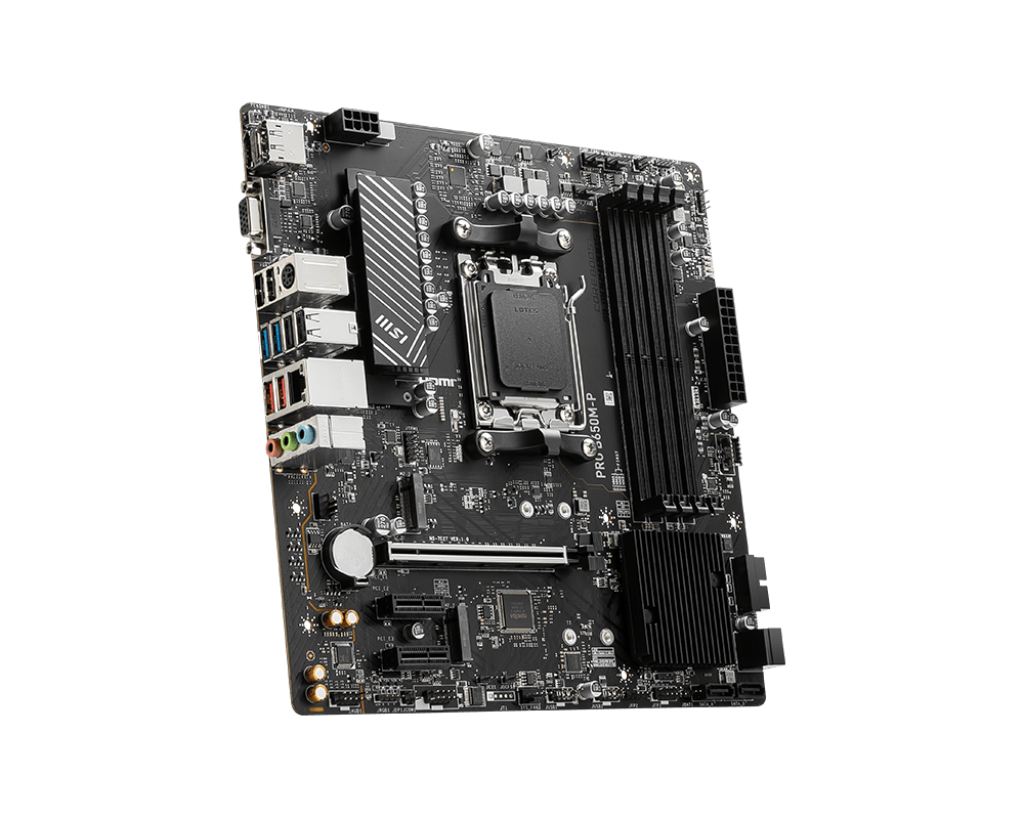

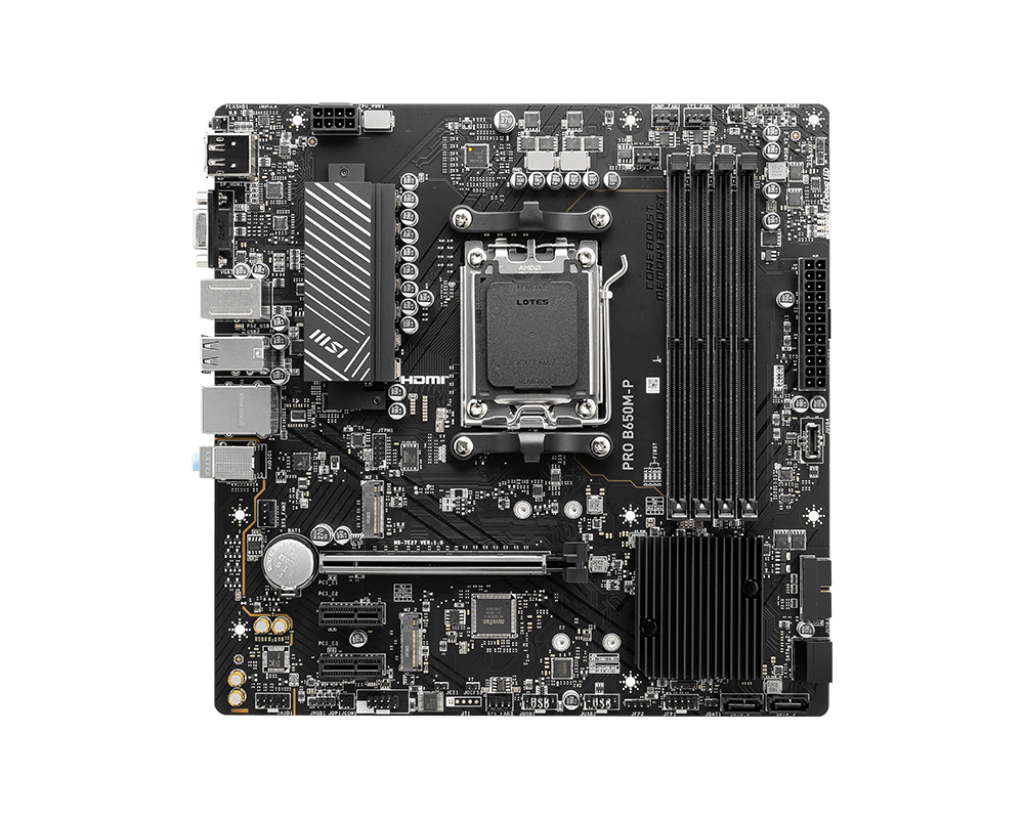

MSI PRO B650M-P/ AM5

Name: MSI PRO B650M-P/ AM5
Brand: MSI
SKU: 4711377100953
Price: 131.20 EUR
Availability: OutOfStock

EAN: 4711377100953

131,20 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD B650

Графика

1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Supports DP 1.4, maximum resolution of 4K 60Hz*; 1x VGA; Support VGA, maximum resolution of 1920x1200 60Hz*

Тип памет

4x DDR5, Maximum Memory Capacity 192GB; Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz; 1DPC 2R Max speed up to 6000+ MHz; 2DPC 1R Max speed up to 6000+ MHz; 2DPC 2R Max speed up to 5400+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO

Expansion slots

1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Форм-фактор

mATX 243.84mmx243.84mm

Чипсет	AMD B650
Графика	1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Supports DP 1.4, maximum resolution of 4K 60Hz; 1x VGA; Support VGA, maximum resolution of 1920x1200 60Hz*
Тип памет	4x DDR5, Maximum Memory Capacity 192GB; Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz; 1DPC 2R Max speed up to 6000+ MHz; 2DPC 1R Max speed up to 6000+ MHz; 2DPC 2R Max speed up to 5400+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO
Expansion slots	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Форм-фактор	mATX 243.84mmx243.84mm
Connectors	1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports
Гаранция	36 Months

OS	Support for Windows® 11 64-bit, Windows® 10 64-bit
Lan	Realtek® 8125BG 2.5G LAN
Audio	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Съхранение	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G

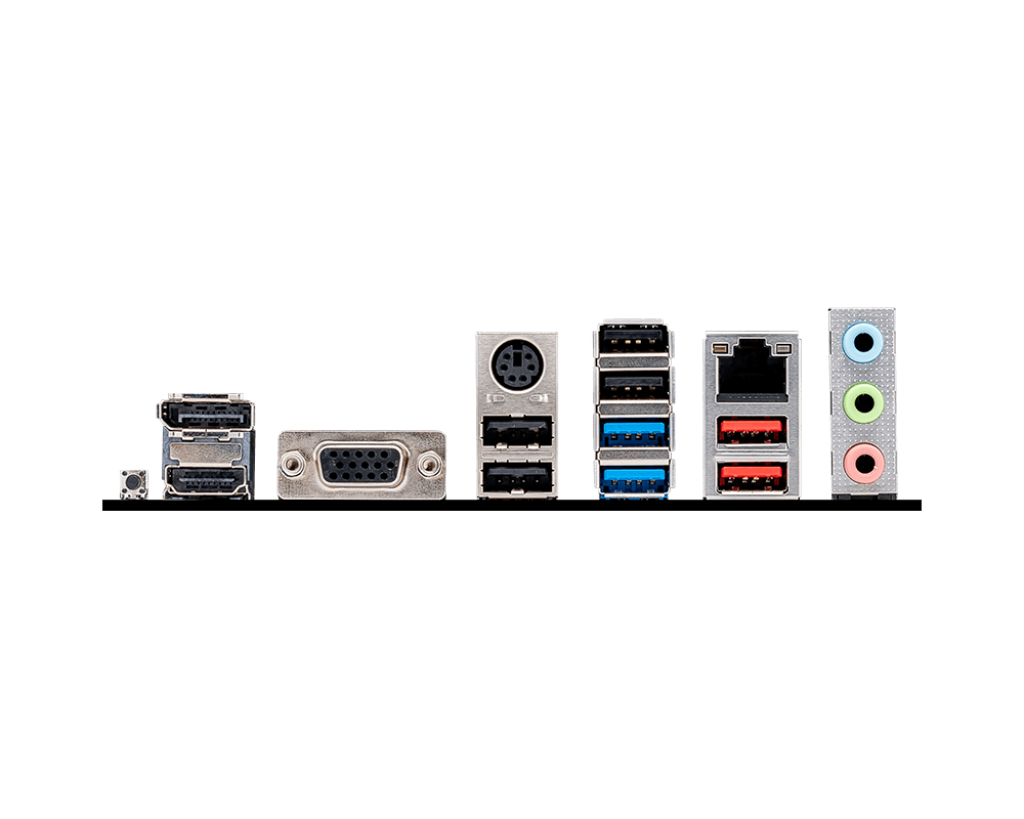

Rear panel I/O	DisplayPort VGA Keyboard / Mouse USB 2.0 2.5G LAN Audio connectors Flash BIOS Button HDMI™ USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A)
Уебсайт на производителя	https://www.msi.com/Motherboard/PRO-B650M-P/Specification
