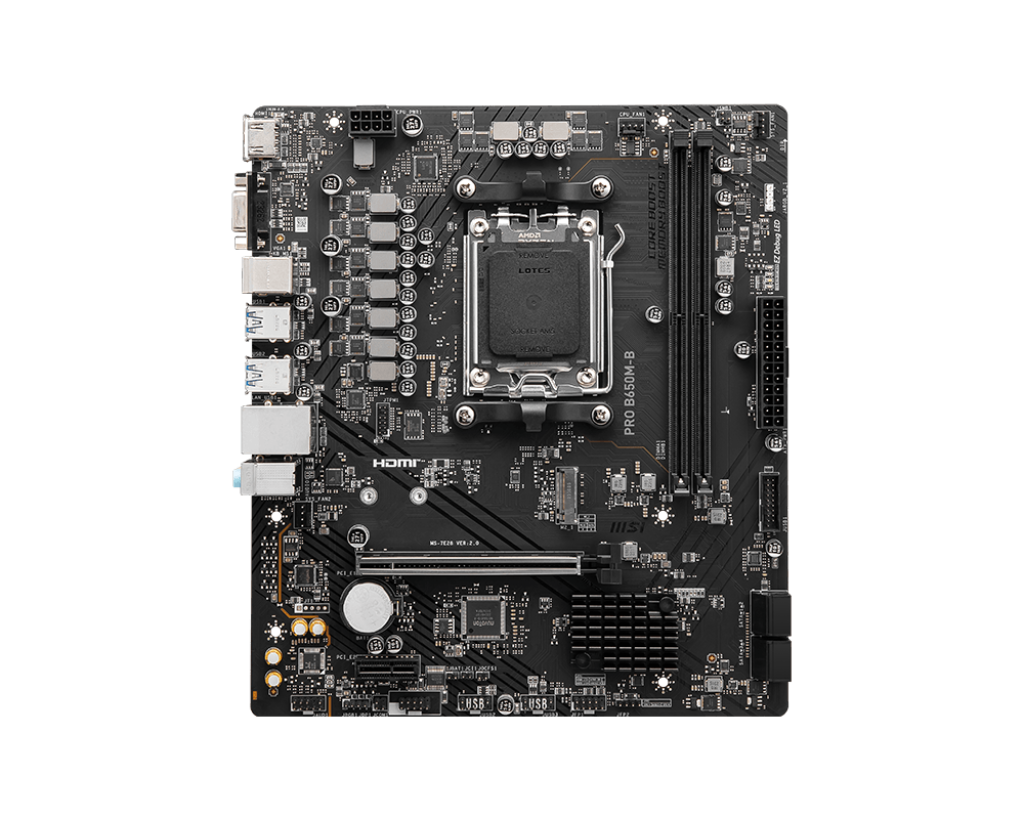

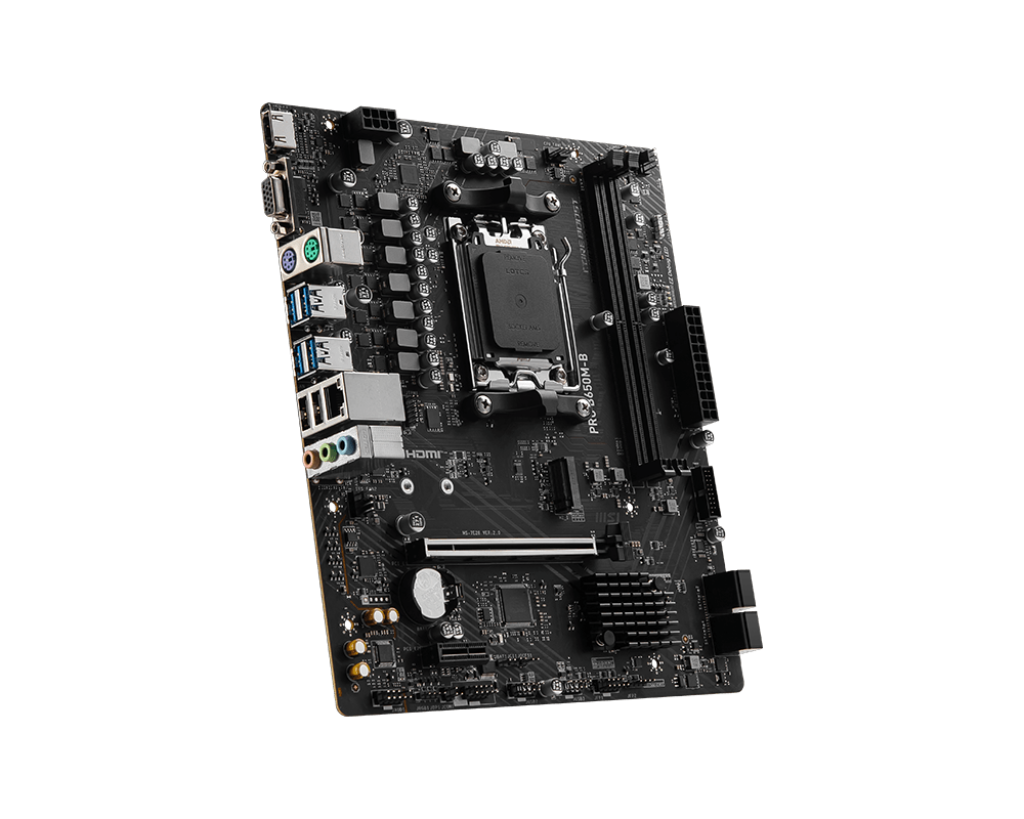

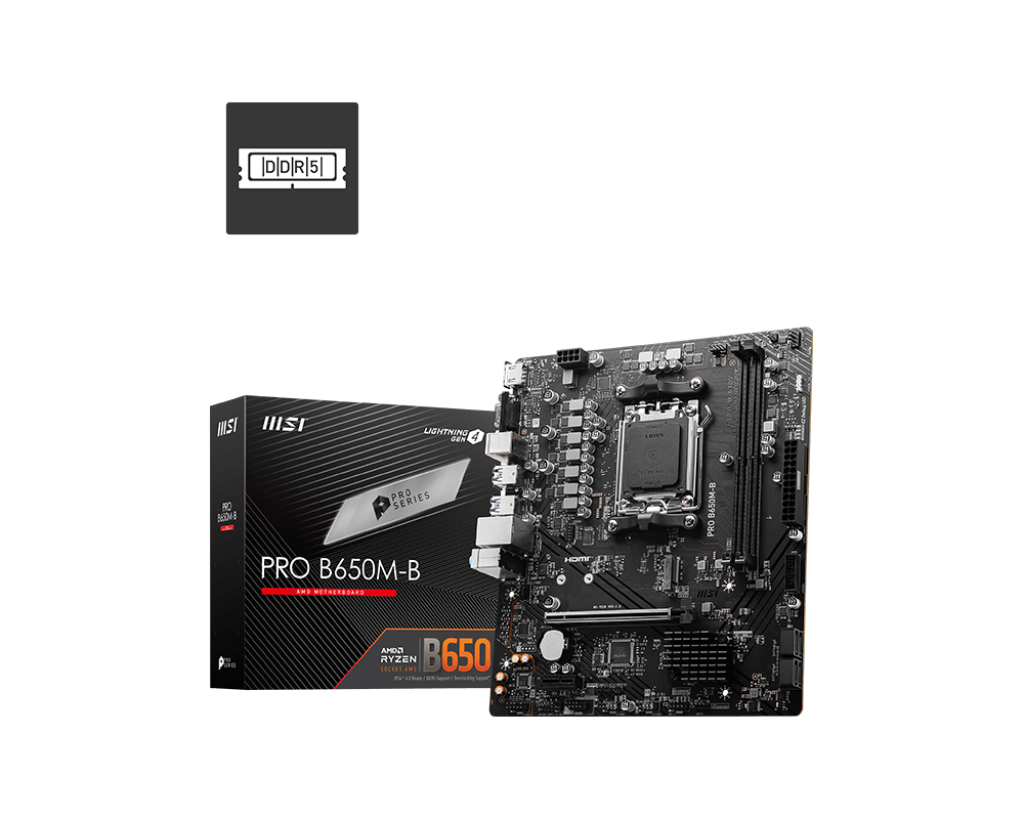

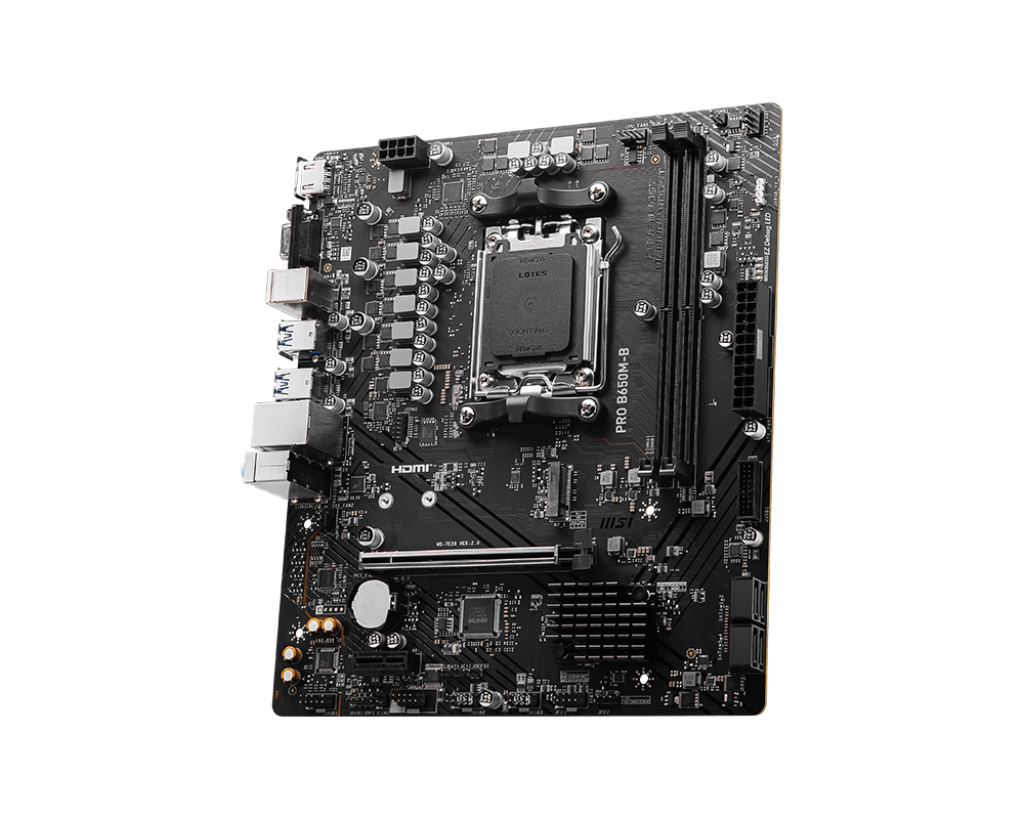

MSI PRO B650M-B /AM5

Name: MSI PRO B650M-B /AM5
Brand: MSI
SKU: 4711377144797
Price: 85.15 EUR
Availability: OutOfStock

EAN: 4711377144797

85,15 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD B650

Графика

1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Тип памет

2x DDR5, Maximum Memory Capacity 96GB; Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO

Expansion slots

1x PCI-E x16 slot; • Supports x16 (For Ryzen™ 7000 Series processors); • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors); • Supports x4 (For Ryzen™ 5 8500G processor); 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Форм-фактор

mATX,215mmx243.84mm

Чипсет	AMD B650
Графика	1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Тип памет	2x DDR5, Maximum Memory Capacity 96GB; Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO
Expansion slots	1x PCI-E x16 slot; • Supports x16 (For Ryzen™ 7000 Series processors); • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors); • Supports x4 (For Ryzen™ 5 8500G processor); 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Форм-фактор	mATX,215mmx243.84mm
Connectors	1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports
Гаранция	36 Months

OS	Support for Windows® 11 64-bit, Windows® 10 64-bit
Lan	Realtek® RTL8125BG 2.5G LAN
Audio	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Съхранение	1x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G

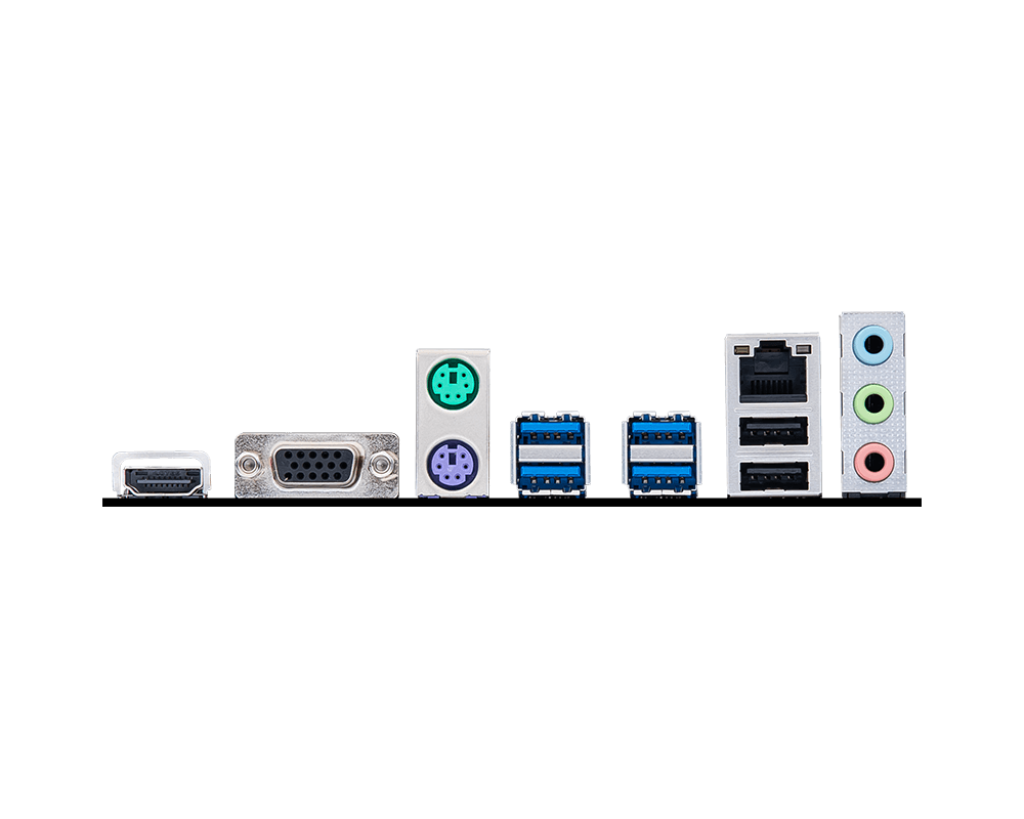

Rear panel I/O	HDMI™; VGA; Keyboard/Mouse; USB 3.2 Gen 1 5Gbps (Type-A); LAN port; Audio connectors; USB 2.0
Уебсайт на производителя	https://www.msi.com/Motherboard/PRO-B650M-B/Specification
