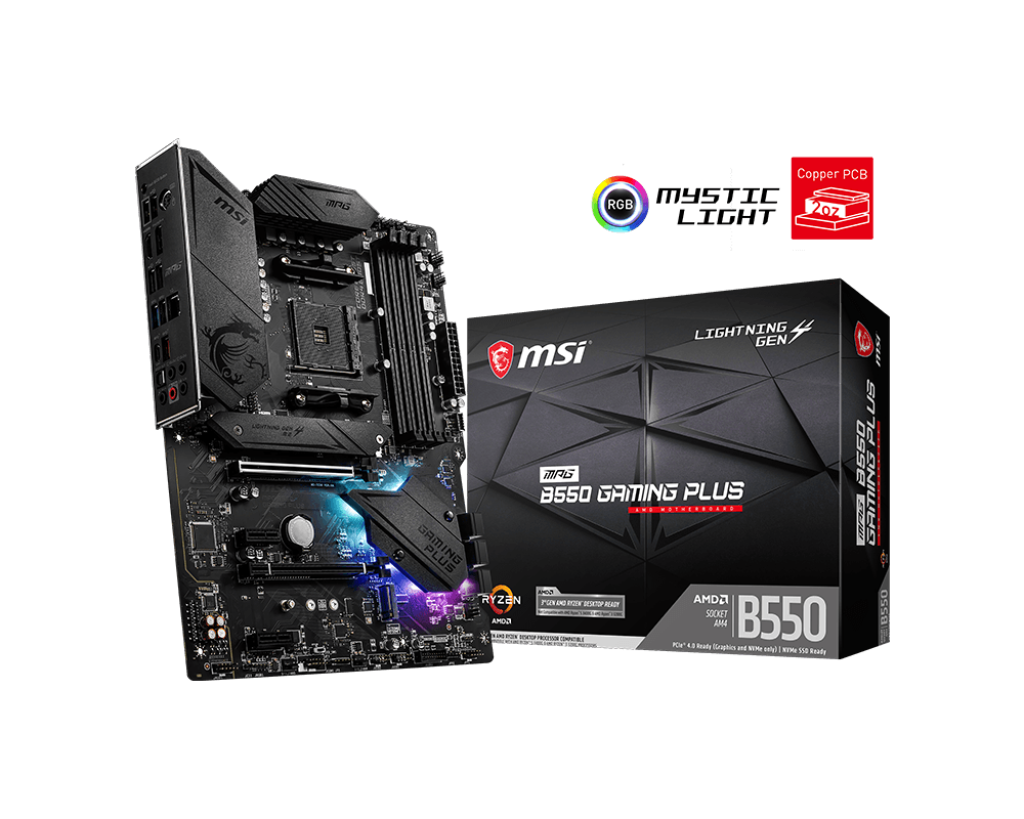

MSI MPG B550 GAMING PLUS /AM4

Name: MSI MPG B550 GAMING PLUS /AM4
Brand: MSI
SKU: 4719072731885
Price: 131.74 EUR
Availability: OutOfStock

EAN: 4719072731885

131,74 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD B550 Chipset

Графика

1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; Support HDCP 1.4 & 2.3; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; Maximum shared memory of 16 GB

Тип памет

4x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHz; 1DPC 2R max speed 3866 MHz; 2DPC 1R max speed 4000 MHz; 2DPC 2R max speed 3600 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory

Expansion slots

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots

Форм-фактор

ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Чипсет	AMD B550 Chipset
Графика	1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; Support HDCP 1.4 & 2.3; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; Maximum shared memory of 16 GB
Тип памет	4x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHz; 1DPC 2R max speed 3866 MHz; 2DPC 1R max speed 4000 MHz; 2DPC 2R max speed 3600 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory
Expansion slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots
Форм-фактор	ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Connectors	1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1xTPM module connector; 1x Clear CMOS jumper

Гаранция	36 Months
Lan	1x Realtek® 8111H Gigabit LAN controller
Audio	Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
Съхранение	AMD B550 Chipset: 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices

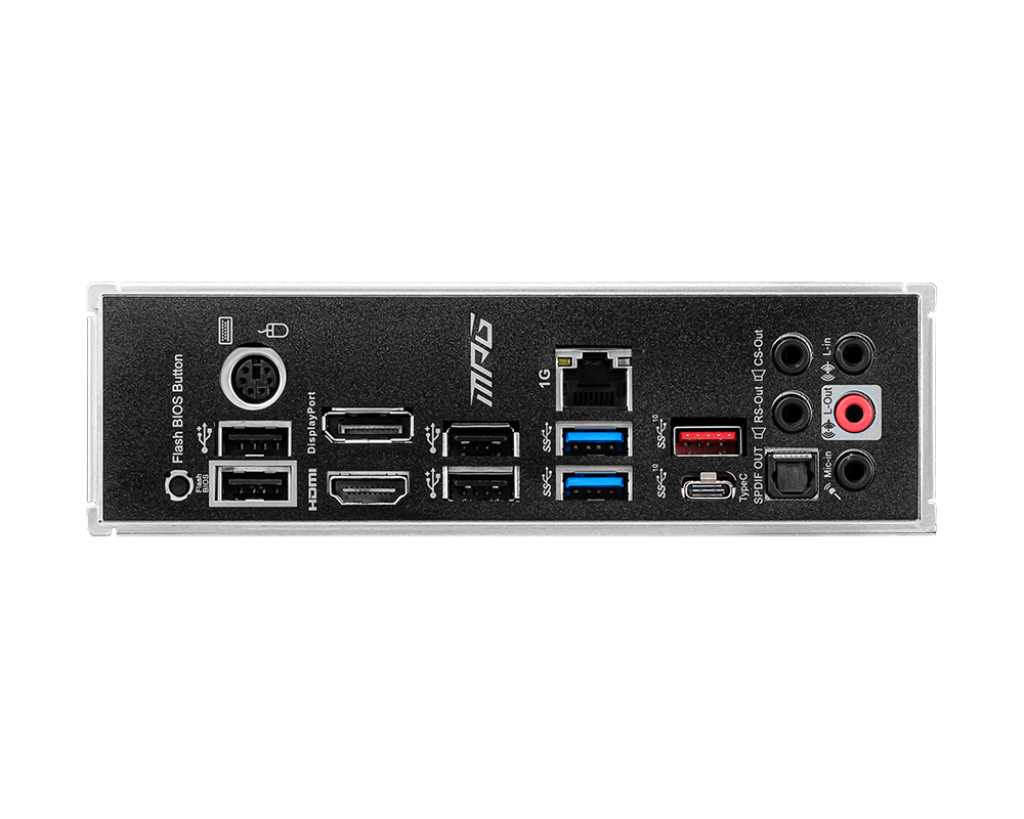

Rear panel I/O	PS/2 Combo Port; DisplayPort; LAN Port; USB 3.2 Gen 2 10Gbps (Type-A); HD Audio Connectors; Flash BIOS Button; USB 2.0; HDMI™; USB 2.0; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-C); Optical S/PDIF OUT
Уебсайт на производителя	https://www.msi.com/Motherboard/MPG-B550-GAMING-PLUS/Specification
