MSI Мрежово оборудване Изчерпан
MSI MAG B550 TOMAHAWK MAX WIFI
EAN: 4719072957957
176,18 €
Цена с включено ДДС
Наложен платеж или банков превод Защитено SSL плащане
Доставка утре до 18:00 при поръчка до 16:00 днес
Основни характеристики
Тип памет
4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE; 1DPC 1R max speed 5100 MHZ; 1DPC 2R max speed 3866 MHZ; 2DPC 1R max speed 4000 MHZ; 2DPC 2R max speed 3600 MHZ; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory
Гаранция
36 Months
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Lan
1x Realtek® RTL8125B 2.5Gbps LAN controller
Audio
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
| Тип памет | 4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE; 1DPC 1R max speed 5100 MHZ; 1DPC 2R max speed 3866 MHZ; 2DPC 1R max speed 4000 MHZ; 2DPC 2R max speed 3600 MHZ; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory |
| Гаранция | 36 Months |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Lan | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output |
| Other | AMD® Wi-Fi 6E1; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.22 |
| Чипсет | AMD B550 Chipset |
| Съхранение | AMD B550 Chipset: 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices |
| Графика | 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; Support HDCP 1.4 & 2.3; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; Maximum shared memory of 16 GB |
| Connectors | 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x TPM module connector; 1x Clear CMOS jumper |
| Форм-фактор | ATX Form Factor;12 in. x 9.6 in. (30.5 cm x 24.4 cm) |

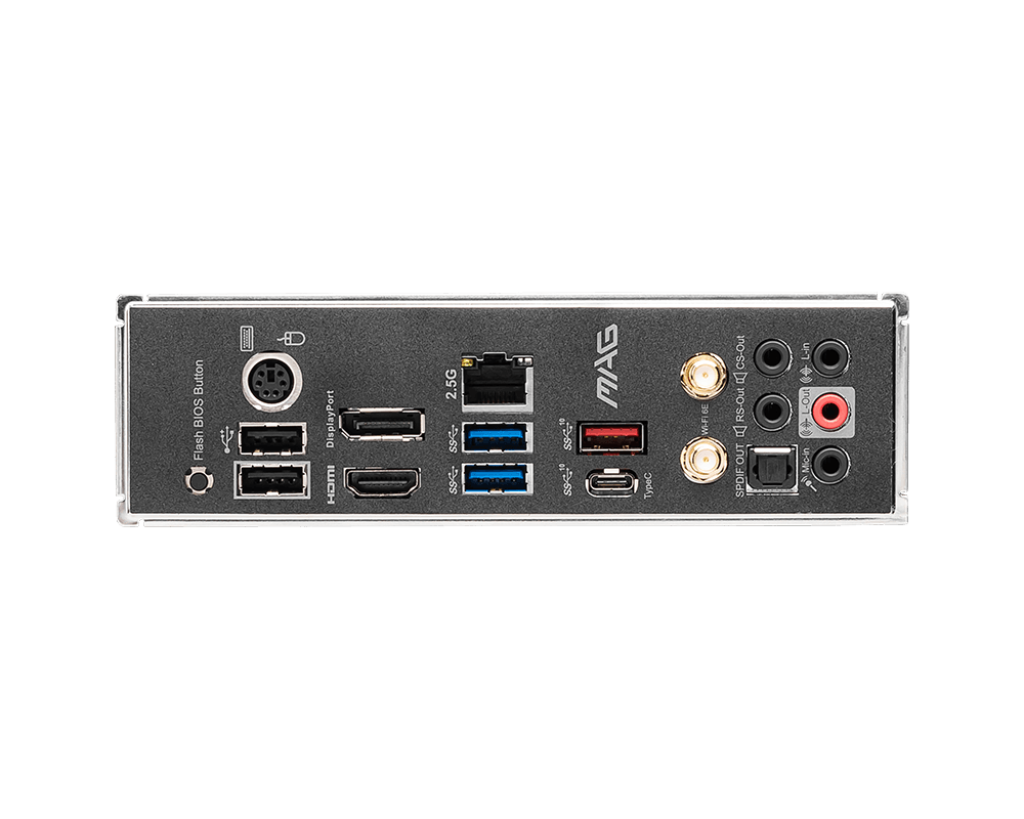

| Rear panel I/O | Keyboard / Mouse; DisplayPort 1.4; 2.5G LAN Port; USB 3.2 Gen 2 10Gbps Type-A; Wi-Fi / Bluetooth Antenna; Audio Connectors; Flash BIOS Button; USB 2.0 Port; HDMI™ 2.1 Port; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 2 10Gbps Type-C; Optical S/PDIF OUT |
| Expansion slots | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots |
| Уебсайт на производителя | https://www.msi.com/Motherboard/MAG-B550-TOMAHAWK-MAX-WIFI/Specification |
