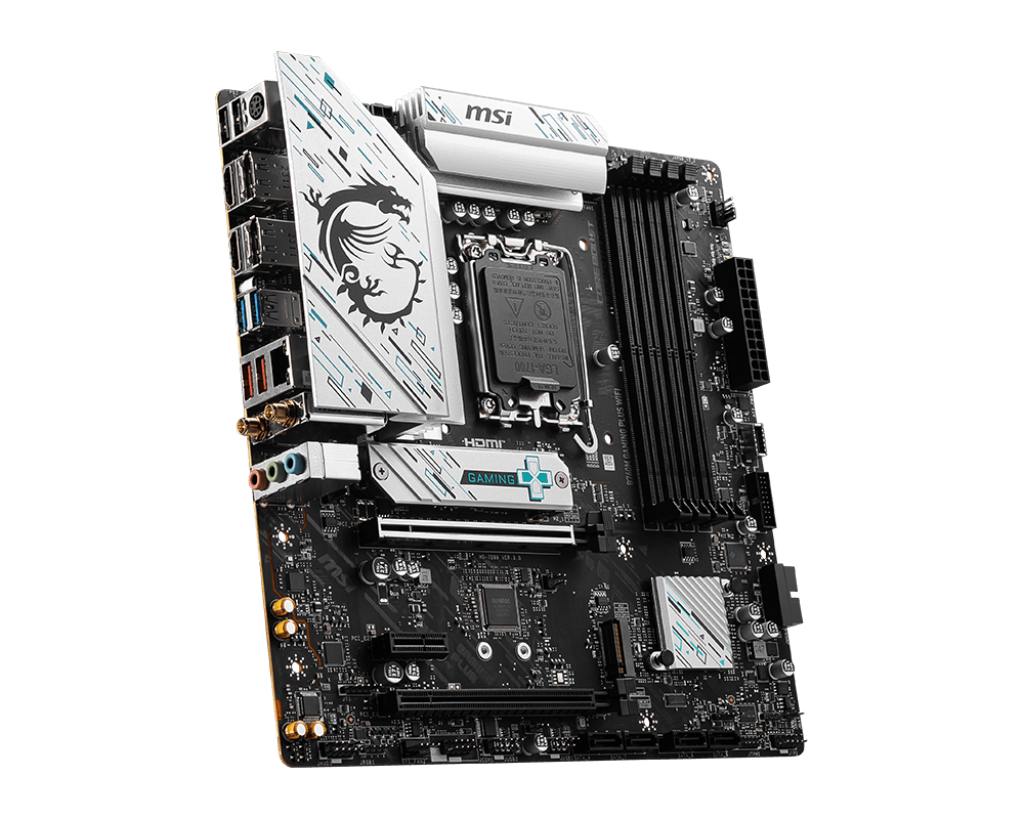

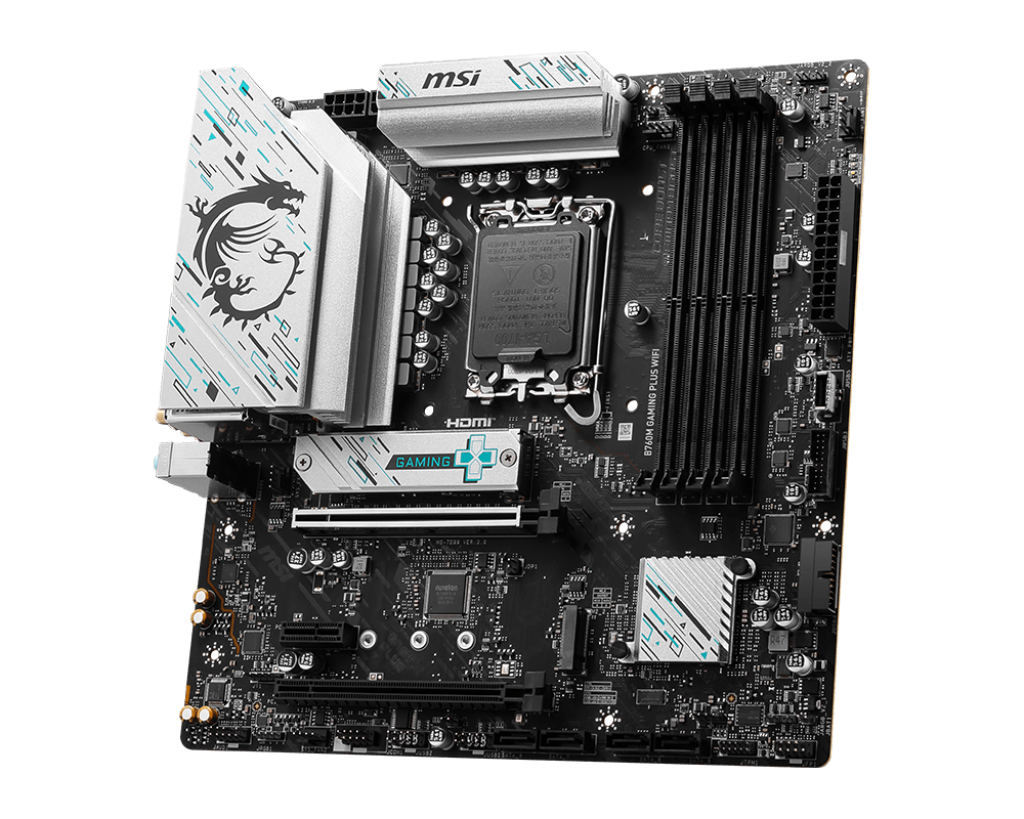

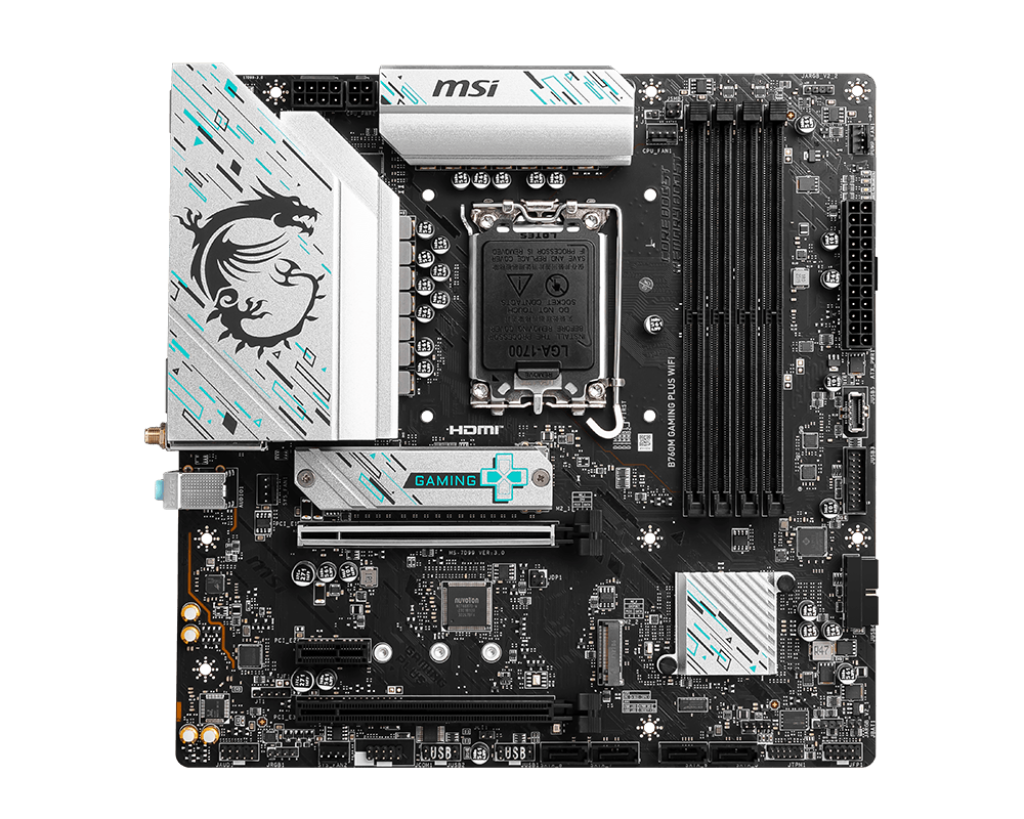

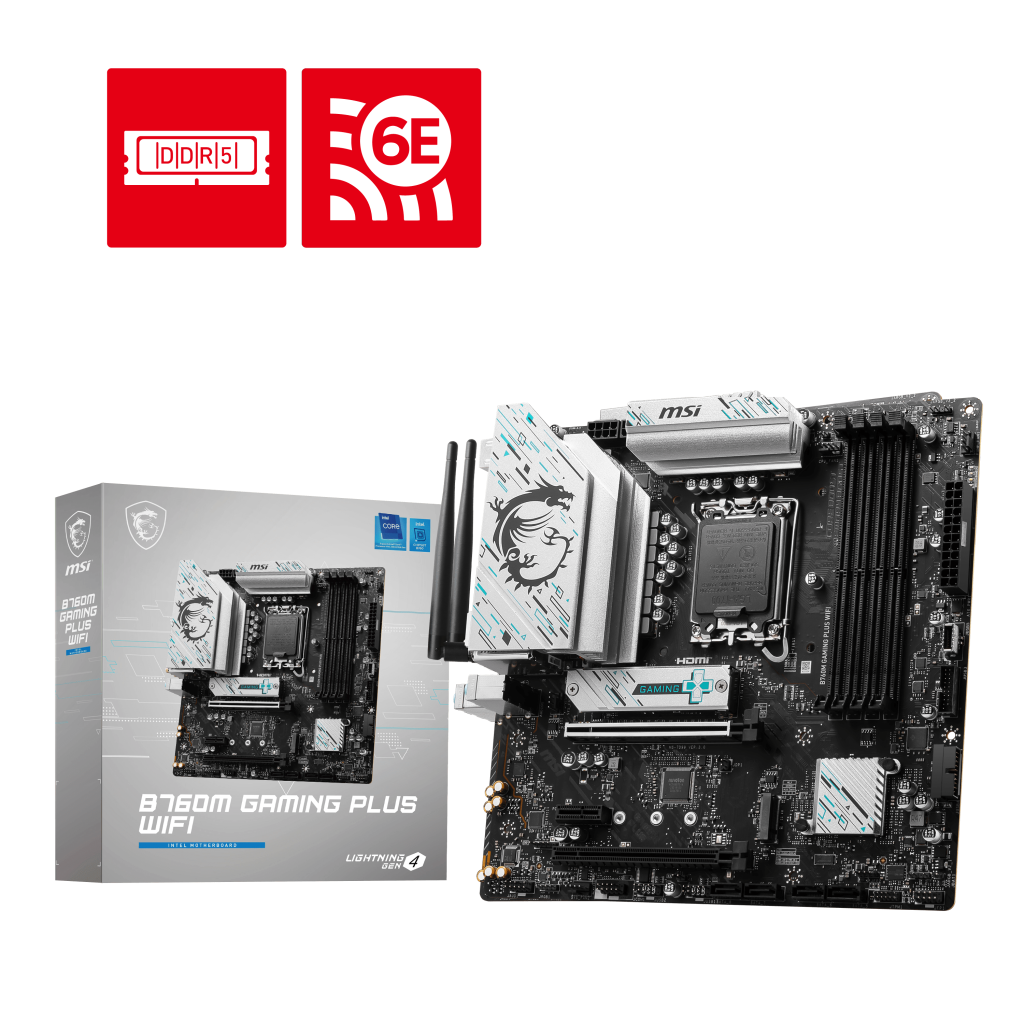

MSI B760M GAMING PLUS WIFI

Name: MSI B760M GAMING PLUS WIFI
Brand: MSI
SKU: 4711377154017
Price: 145.80 EUR
Availability: InStock

EAN: 4711377154017

145,80 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Тип памет

4x DDR5, Maximum Memory Capacity 192GB; Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory

Гаранция

36 Months

Support for Windows® 11 64-bit, Windows® 10 64-bit

Lan

Realtek® RTL8125BG 2.5G LAN

Audio

Realtek® ALC897 Codec; 7.1-Channel High Definition Audio

Тип памет	4x DDR5, Maximum Memory Capacity 192GB; Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Гаранция	36 Months
OS	Support for Windows® 11 64-bit, Windows® 10 64-bit
Lan	Realtek® RTL8125BG 2.5G LAN
Audio	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Other	Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA
Чипсет	INTEL B760

Съхранение	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
Графика	2x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz; 2x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz
Connectors	1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen1 Type C ports
Форм-фактор	mATX,243.84mmx243.84mm

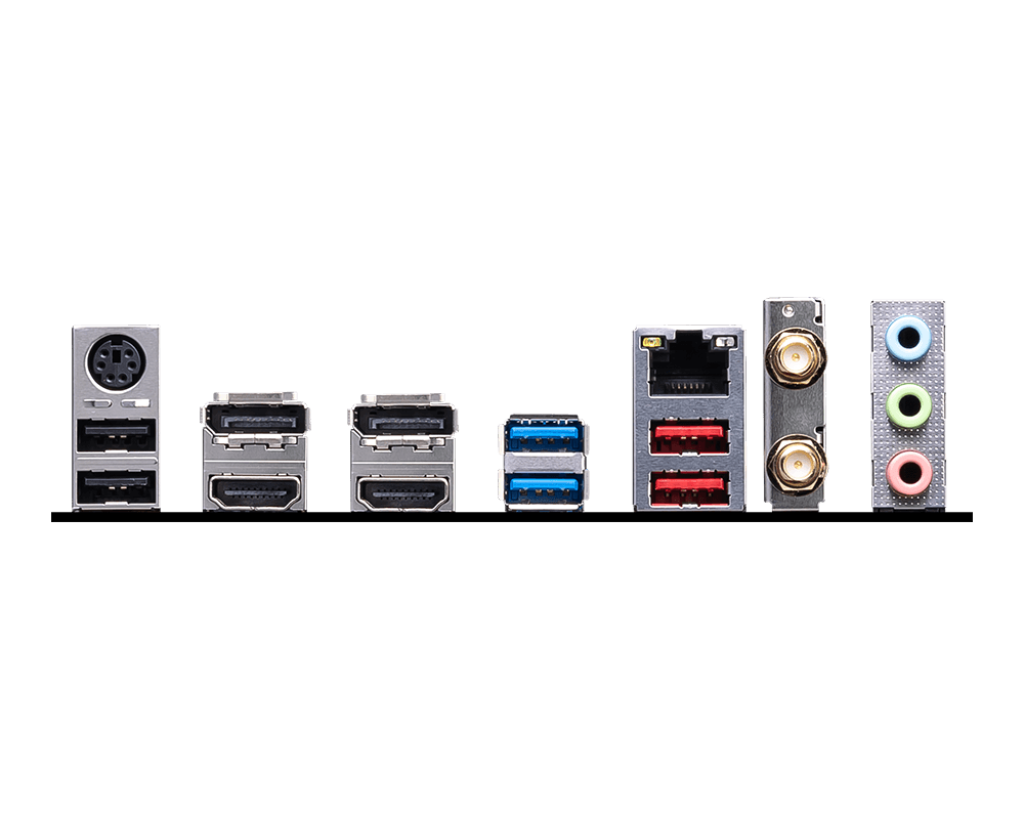

Rear panel I/O	Keyboard / Mouse; DisplayPort; USB 3.2 Gen 1 5Gbps (Type-A); 2.5G LAN; Wi-Fi / Bluetooth; USB 2.0; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); Audio Connectors
Expansion slots	2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Уебсайт на производителя	https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Specification
