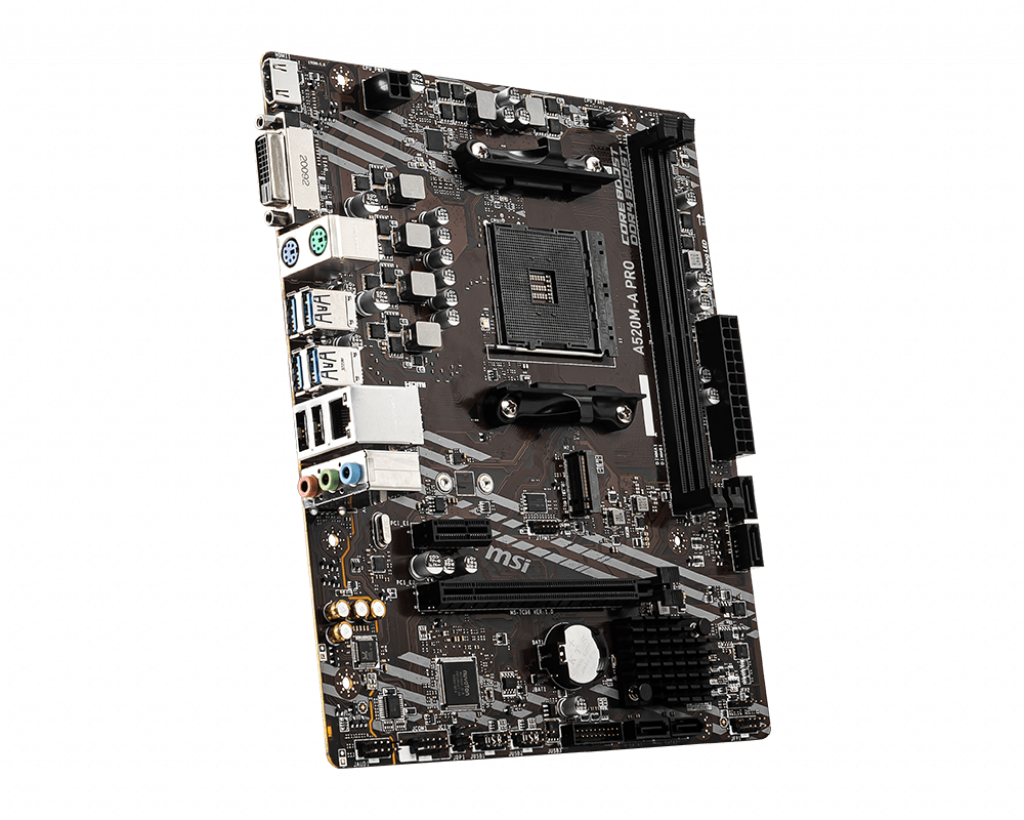

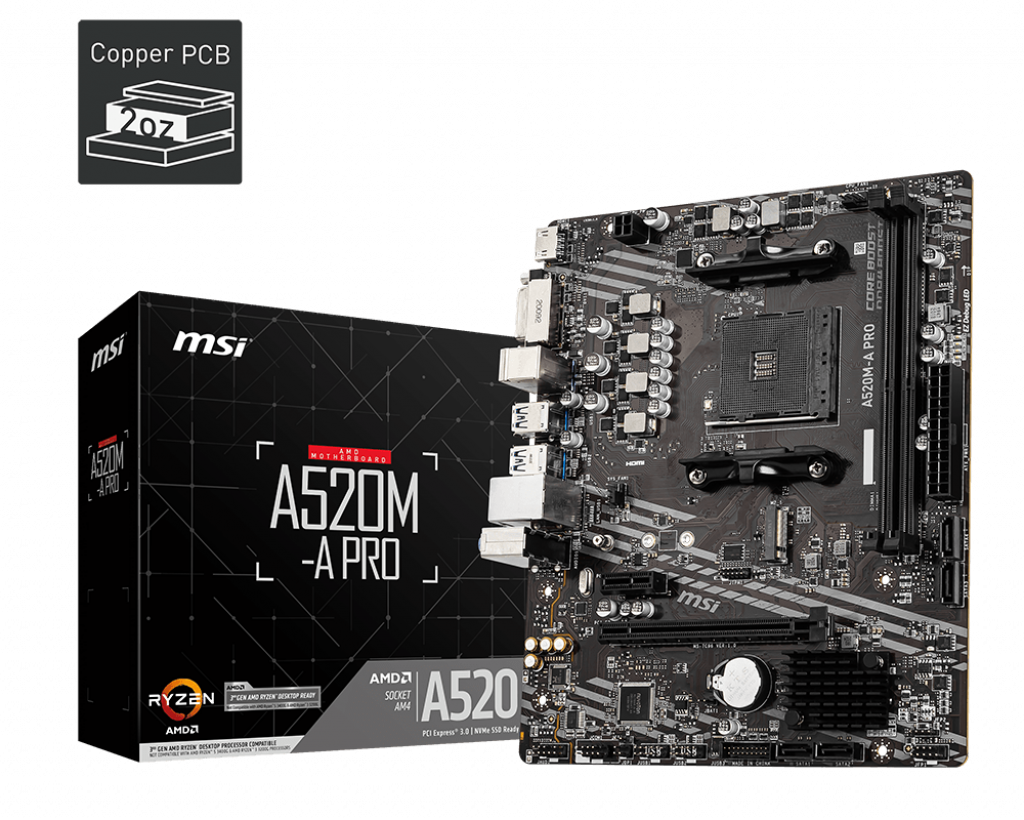

MSI A520M-A PRO /AM4

Name: MSI A520M-A PRO /AM4
Brand: MSI
SKU: 4719072749927
Price: 54.73 EUR
Availability: InStock

EAN: 4719072749927

54,73 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD A520 Chipset

Графика

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 ; 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1; Maximum shared memory of 16 GB

Тип памет

2x DDR4 memory slots, support up to 64GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory

Expansion slots

1x PCIe 3.0 x1 slot 1; 1x PCIe x16 slot

Форм-фактор

Micro-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Чипсет	AMD A520 Chipset
Графика	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 ; 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1; Maximum shared memory of 16 GB
Тип памет	2x DDR4 memory slots, support up to 64GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory
Expansion slots	1x PCIe 3.0 x1 slot 1; 1x PCIe x16 slot
Форм-фактор	Micro-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Connectors	1x 24-pin ATX main power connector; 1x 4-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1xTPM module connector; 1x Clear CMOS jumper

Гаранция	36 Months
Lan	1x Realtek® RTL8111H Gigabit LAN controller
Audio	Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio
Съхранение	AMD A520 Chipset; 4x SATA 6Gb/s ports; 1x M.2 slot (Key M) (from AMD Processor); Supports PCIe 3.0 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices

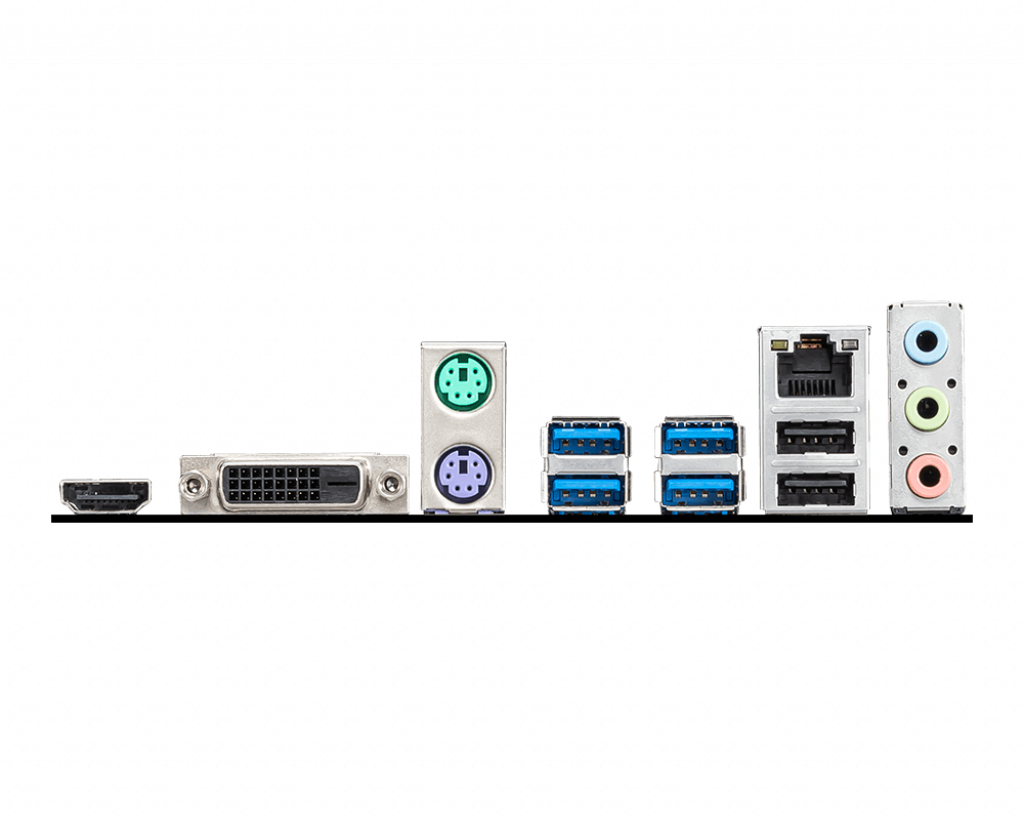

Rear panel I/O	LAN port; HDMI; DVI-D; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 1 5Gbps Type-A; USB 2.0 Ports; Audio Connectors
Уебсайт на производителя	https://www.msi.com/Motherboard/A520M-A-PRO/Specification
