GB H610M S2H V2 /DDR5 /LGA1700

Name: GB H610M S2H V2 /DDR5 /LGA1700
Brand: GIGABYTE
SKU: 4719331859817
Price: 80.33 EUR
Availability: InStock

EAN: 4719331859817

80,33 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® H610 Express Chipset

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU

Графика

Integrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk;* Support for HDMI 2.1 version and HDCP 2.3.;** Support native HDMI 2.1 TMDS compatible ports.;- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj;* Support for DisplayPort 1.2 version and HDCP 2.3

Тип памет

14th and 13th Generation Intel® Core™ i9/i7 Pocessors;- Support for DDR5 5600/ 5200/ 4800/ 4400 MT/s memory modules;13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;- Support for DDR5 4800/4400 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Expansion slots

CPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Чипсет	Intel® H610 Express Chipset
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
Графика	Integrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk;* Support for HDMI 2.1 version and HDCP 2.3.;** Support native HDMI 2.1 TMDS compatible ports.;- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj;* Support for DisplayPort 1.2 version and HDCP 2.3
Тип памет	14th and 13th Generation Intel® Core™ i9/i7 Pocessors;- Support for DDR5 5600/ 5200/ 4800/ 4400 MT/s memory modules;13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;- Support for DDR5 4800/4400 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Expansion slots	CPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Форм-фактор	Micro ATX Form Factor; 22.3cm x 19.6cm
Connectors	iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors;1 x RGB LED strip header;1 x front panel header;1 x front panel audio header;1 x speaker header;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;1 x chassis intrusion header;Back Panel Connectors;1 x PS/2 keyboard/mouse port;1 x D-Sub port;2 x DisplayPort;1 x HDMI port;2 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks
Гаранция	36 Months

OS	Support for Windows 11 64-bit;Support for Windows 10 64-bit
Lan	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
Съхранение	Chipset;- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support);- 4 x SATA 6Gb/s connectors

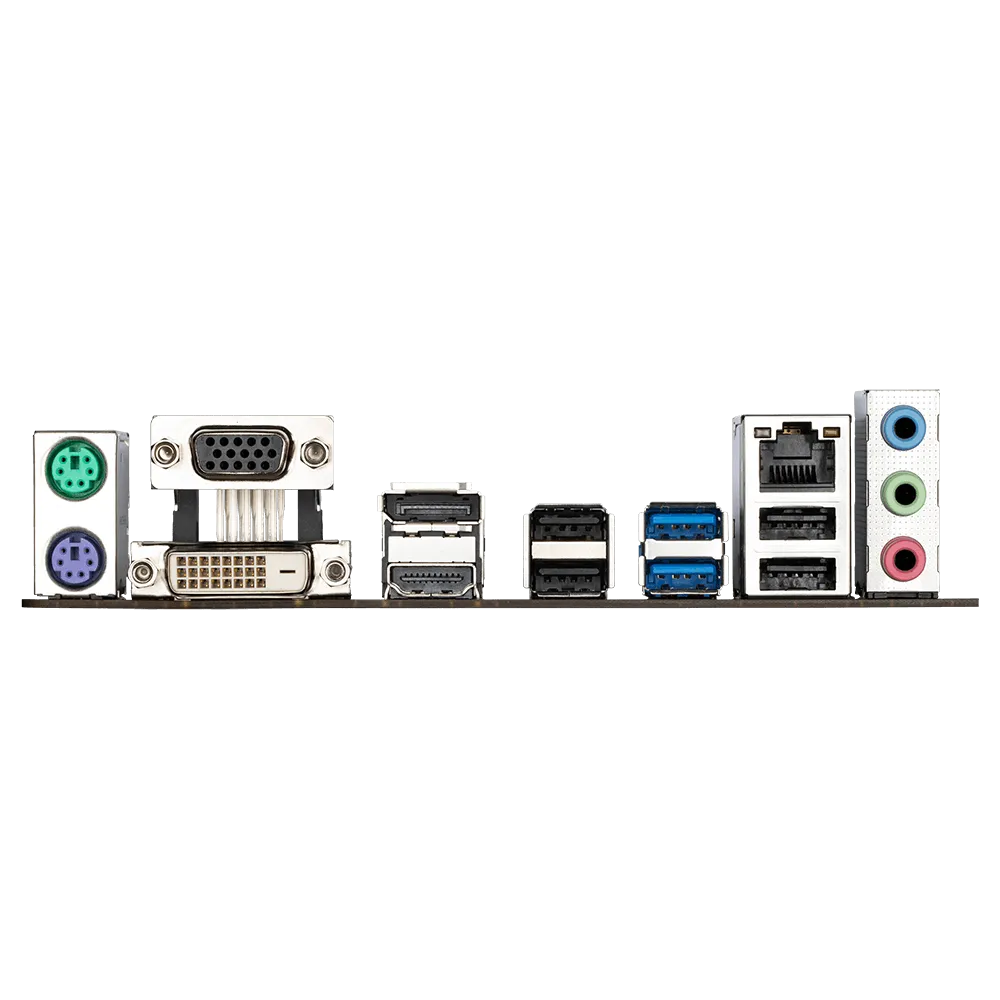

Rear panel I/O	Chipset;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub;- 4 x USB 2.0/1.1 ports available through the internal USB headers
Уебсайт на производителя	https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf
Производител	GIGABYTE
