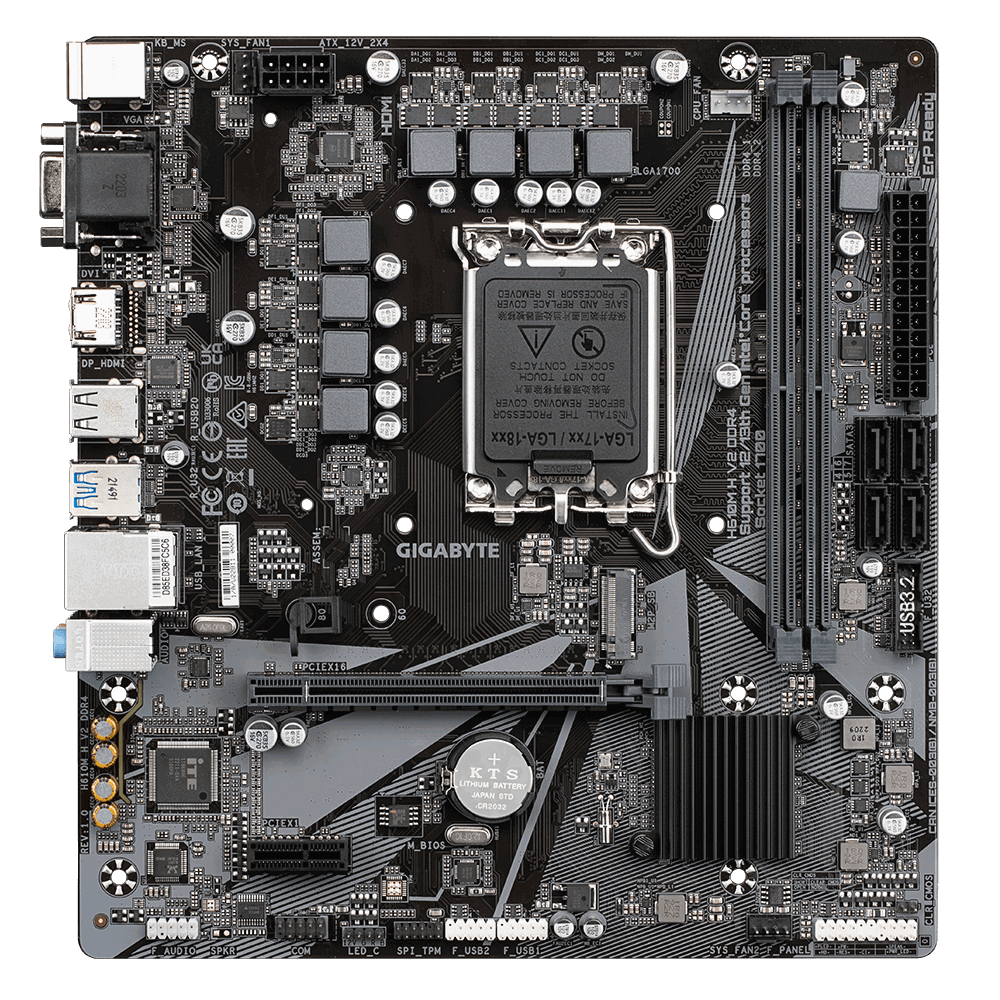

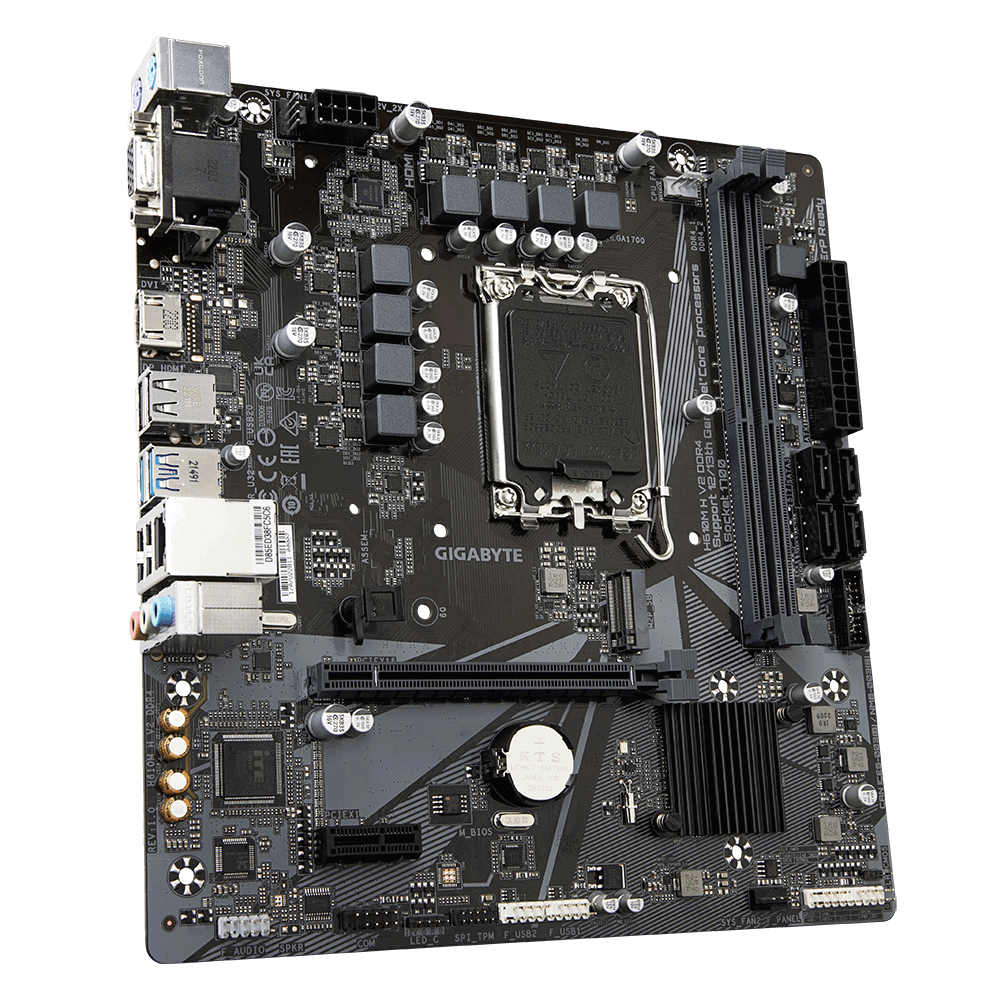

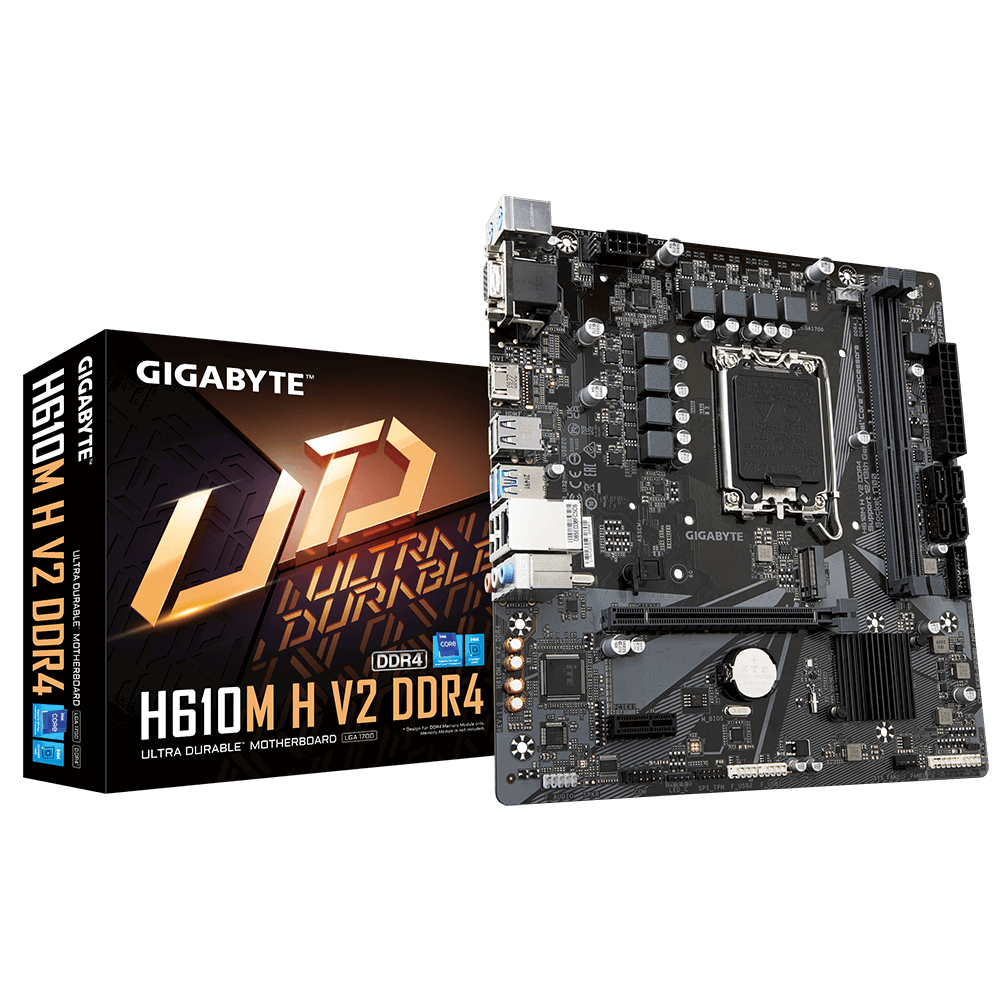

GB H610M H V2 /LGA1700

Name: GB H610M H V2 /LGA1700
Brand: GIGABYTE
SKU: 4719331859985
Price: 73.72 EUR
Availability: InStock

EAN: 4719331859985

73,72 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® H610 Express Chipset

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Графика

Integrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Тип памет

14th and 13th Generation Intel® Core™ i9/i7 Pocessors;- Support for DDR5 5600/5200/4800/4400 MT/s memory modules;13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;- Support for DDR5 4800/4400 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules

Expansion slots

CPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Чипсет	Intel® H610 Express Chipset
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Графика	Integrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Тип памет	14th and 13th Generation Intel® Core™ i9/i7 Pocessors;- Support for DDR5 5600/5200/4800/4400 MT/s memory modules;13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;- Support for DDR5 4800/4400 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
Expansion slots	CPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Форм-фактор	Micro ATX Form Factor; 22.3cm x 19.6cm
Connectors	Internal I/O Connectors:1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x RGB LED strip header;1 x front panel header;1 x front panel audio header;1 x speaker header;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;1 x chassis intrusion header;Back Panel Connectors;1 x PS/2 keyboard/mouse port;1 x D-Sub port;1 x HDMI port;2 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks
Гаранция	36 Months

OS	Support for Windows 11 64-bit;Support for Windows 10 64-bit;Bundled Software;Norton® Internet Security (OEM version);LAN bandwidth management software
Lan	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS	1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
Съхранение	Chipset;- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support);- 4 x SATA 6Gb/s connectors
Rear panel I/O	iTE® I/O Controller Chip
Уебсайт на производителя	https://www.gigabyte.com/Motherboard/H610M-H-V2-DDR4-rev-10#kf
Производител	GIGABYTE
