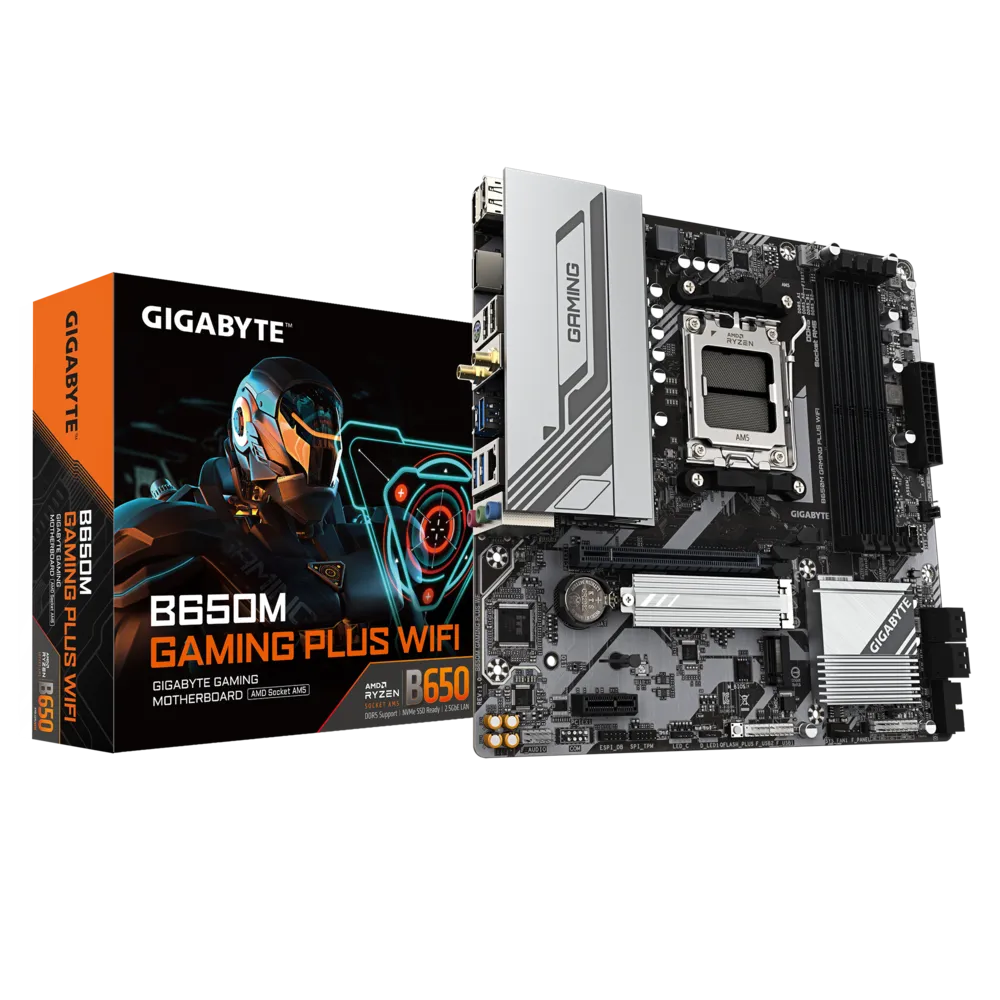

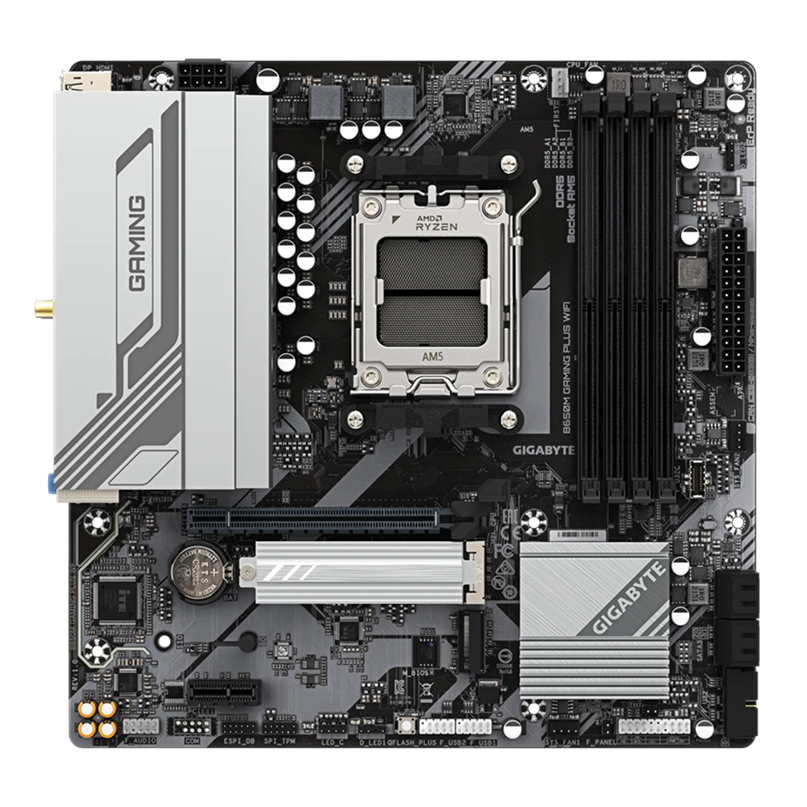

GB B650M GAMING PLUS WF /AM5

Name: GB B650M GAMING PLUS WF /AM5
Brand: GIGABYTE
SKU: 4719331862213
Price: 143.52 EUR
Availability: InStock

EAN: 4719331862213

143,52 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD B650

CPU

AMD Socket AM5, support for:;AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Графика

Integrated Graphics Processor with AMD Radeon™ Graphics support;- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports.;Support for up to triple-display at the same time

Тип памет

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme;Memory Profile (XMP) memory modules

Expansion slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Чипсет	AMD B650
CPU	AMD Socket AM5, support for:;AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Графика	Integrated Graphics Processor with AMD Radeon™ Graphics support;- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports.;Support for up to triple-display at the same time
Тип памет	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme;Memory Profile (XMP) memory modules
Expansion slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Форм-фактор	Micro ATX Form Factor; 24.4cm x 24.4cm
Connectors	Internal I/O Connectors;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable LED strip headers;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x Q-Flash Plus button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x PS/2 keyboard/mouse port;1 x USB Type-C® port, with USB 3.2 Gen 1 support;3 x USB 3.2 Gen 1 ports;2 x USB 2.0/1.1 ports;1 x HDMI port;2 x DisplayPorts;2 x SMA antenna connectors (2T2R) (1T1R); Only for Realtek® Wi-Fi 6 RTL8851BE;1 x RJ-45 port;3 x audio jacks
Гаранция	36 Months
OS	Support for Windows 11 64-bit;Support for Windows 10 64-bit
Lan	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USB	CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 1 x USB 3.2 Gen 1 port on the back panel;- 1 x USB 2.0/1.1 port on the back panel;Chipset:;- 2 x USB 3.2 Gen 1 ports on the back panel;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
BIOS	1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
Съхранение	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:;- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Wireless	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0);- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless;Realtek® Wi-Fi 6 RTL 8851BE (PCB rev. 1.1);- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 80MHz wireless
Bluetooth	5.3
Rear panel I/O	iTE® I/O Controller Chip
Уебсайт на производителя	https://www.gigabyte.com/Motherboard/B650M-GAMING-PLUS-WIFI-rev-1x#kf
Производител	GIGABYTE
