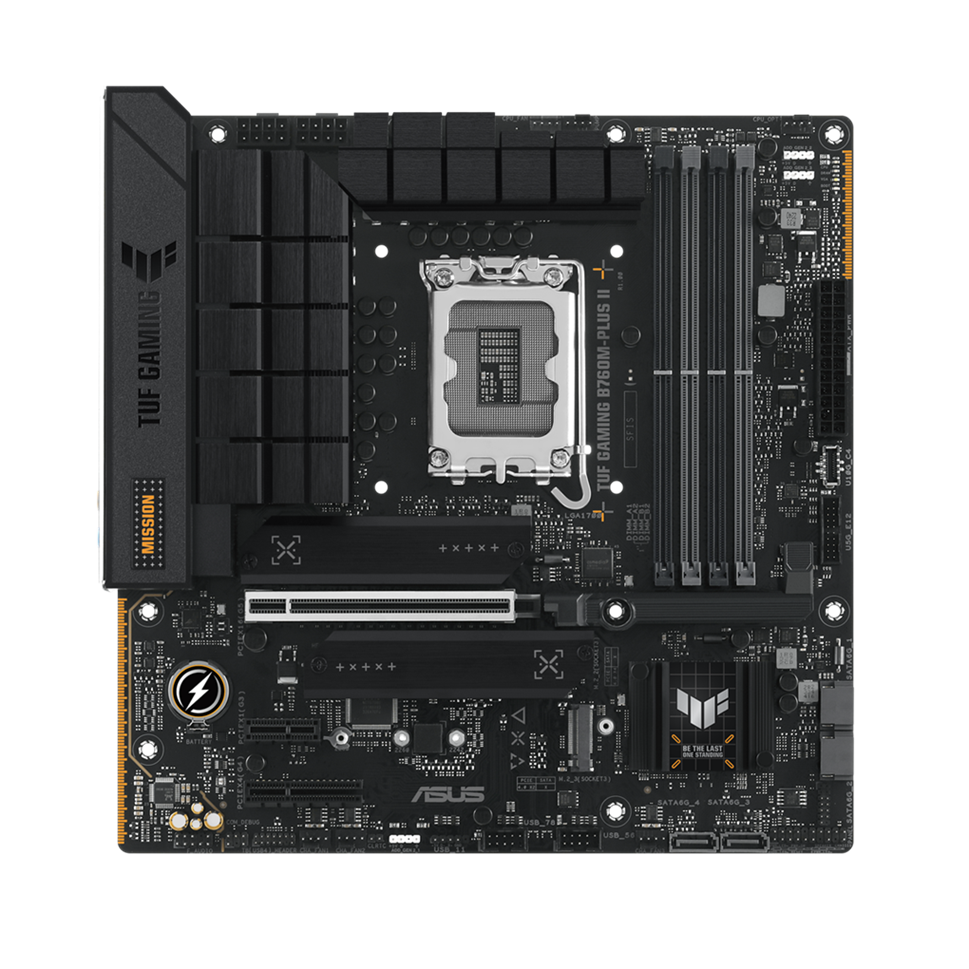

ASUS TUF GAMING B760M-PLUS II

Name: ASUS TUF GAMING B760M-PLUS II
Brand: ASUS
SKU: 4711387469798
Price: 184.75 EUR
Availability: InStock

EAN: 4711387469798

184,75 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® B760 Chipset

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®

Графика

1 x DisplayPort; 1 x HDMI™ port

Тип памет

4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile II (AEMP II)

Expansion slots

Intel®Core™Processors (14th& 13th& 12th Gen); 1 x PCIe 5.0 x16 slot; Intel®B760 Chipset; 1 x PCIe 4.0 x4 slot; 1 x PCIe 3.0 x1 slot

Чипсет	Intel® B760 Chipset
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®
Графика	1 x DisplayPort; 1 x HDMI™ port
Тип памет	4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile II (AEMP II)
Expansion slots	Intel®Core™Processors (14th& 13th& 12th Gen); 1 x PCIe 5.0 x16 slot; Intel®B760 Chipset; 1 x PCIe 4.0 x4 slot; 1 x PCIe 3.0 x1 slot
Форм-фактор	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Connectors	Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 5 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x Front Panel Audio header (F-AUDIO); 1 x20-3 pin System Panel header with chassis intrusion function; 1 x Thunderbolt™ (USB4®) header
Гаранция	36 Months

OS	Windows®11, Windows®10 64-bit
Lan	1 x Realtek 2.5Gb Ethernet, TUF LANGuard
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming,; Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Rear optical S/PDIF out port; Premium audio capacitors; Dedicated audio PCB layers
Съхранение	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel®Core™Processors (14th& 13th& 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode); Intel®B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports

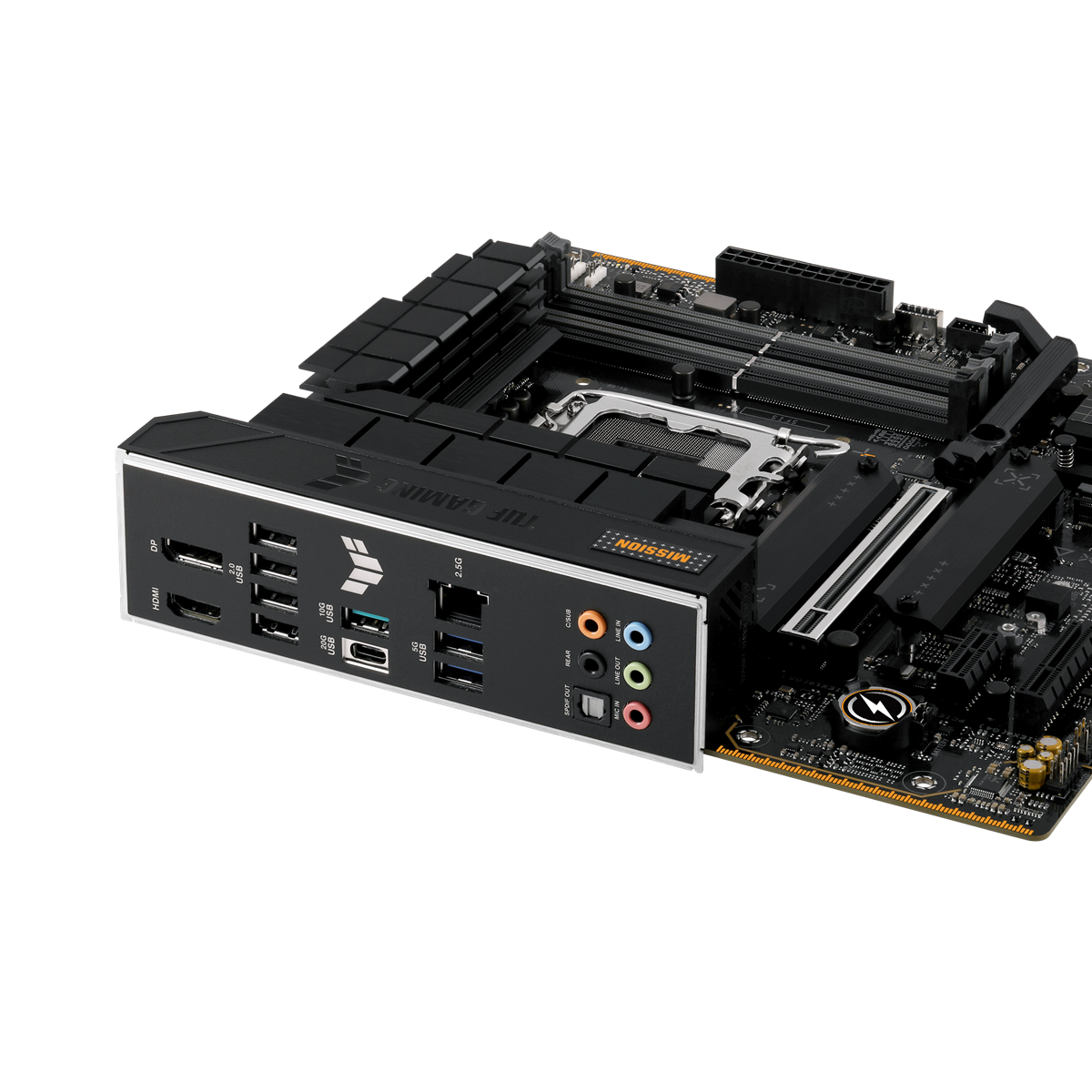

Rear panel I/O	Back Panel I/O Ports; 1 x USB 20Gbps port (1 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port
Уебсайт на производителя	https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-ii/
Производител	ASUS
