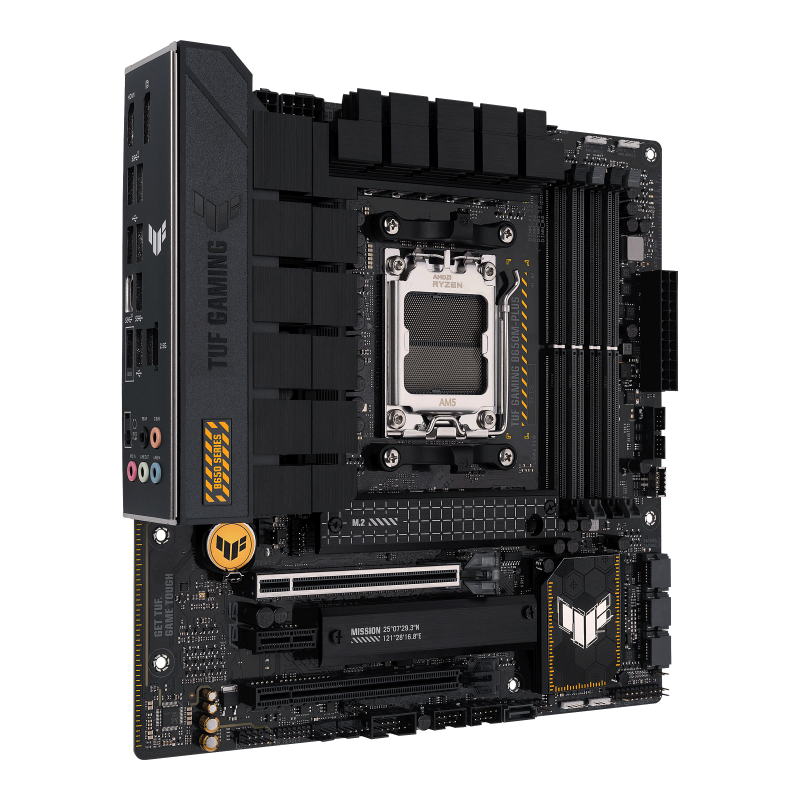

ASUS TUF GAMING B650M-PLUS

Name: ASUS TUF GAMING B650M-PLUS
Brand: ASUS
SKU: 4711081912392
Price: 189.10 EUR
Availability: InStock

EAN: 4711081912392

189,10 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD B650

Графика

1 x DisplayPort*; 1 x HDMI® port**

Тип памет

4 x DIMM, Max. 128GB, DDR5; 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO™); OptiMem II

Expansion slots

AMD Ryzen™ 7000 Series Desktop Processors*; 1 x PCIe 4.0/3.0 x16 slot; AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode); 1 x PCIe 4.0/3.0 x1 slot

Форм-фактор

micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Чипсет	AMD B650
Графика	1 x DisplayPort; 1 x HDMI® port*
Тип памет	4 x DIMM, Max. 128GB, DDR5; 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO™); OptiMem II
Expansion slots	AMD Ryzen™ 7000 Series Desktop Processors*; 1 x PCIe 4.0/3.0 x16 slot; AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode); 1 x PCIe 4.0/3.0 x1 slot
Форм-фактор	micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Connectors	1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB Gen 1 connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header
Гаранция	36 Months

OS	Windows®11, Windows®10 64-bit
Lan	1 x Realtek 2.5Gb Ethernet; TUF LANGuard
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
Съхранение	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD B650 Chipset; 4 x SATA 6Gb/s ports

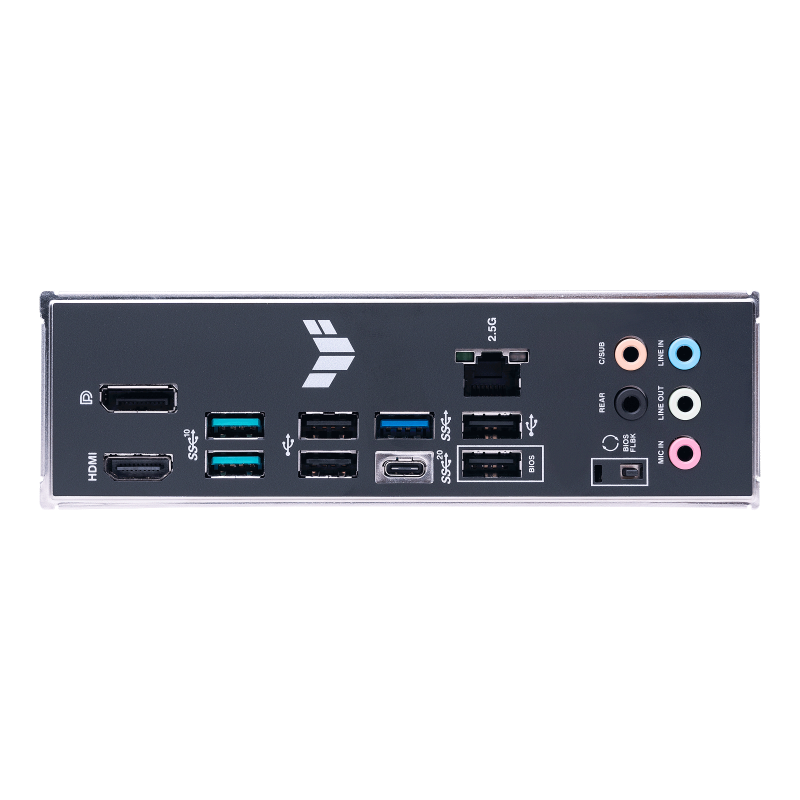

Rear panel I/O	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI®port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack™ button
Уебсайт на производителя	https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650m-plus/techspec/
