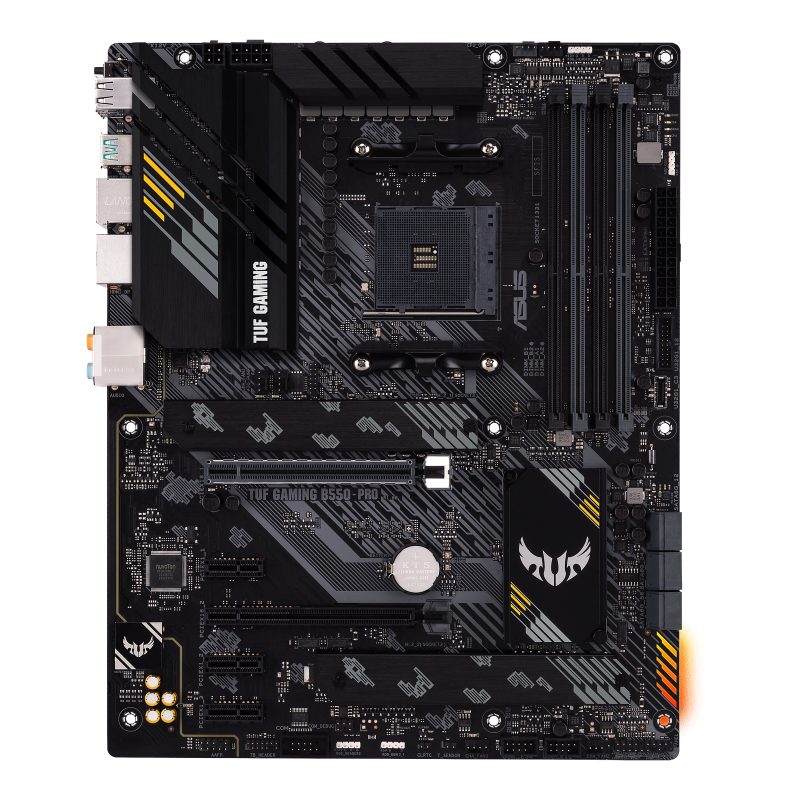

ASUS TUF GAMING B550-PRO /AM4

Name: ASUS TUF GAMING B550-PRO /AM4
Brand: ASUS
SKU: 4711081033721
Price: 141.37 EUR
Availability: OutOfStock

EAN: 4711081033721

141,37 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD B550

Графика

1 x DisplayPort 1.2; 1 x HDMI 2.1(4K@60HZ)

Тип памет

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors; 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *; AMD RyzenTM 4000 G-Series Processors; 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CP

Expansion slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 (x16 mode); AMD RyzenTM 4000 G-Series Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD B550 Chipset; 1 x PCIe 3.0 x16 (x4 mode); 3 x PCIe 3.0 x1

Форм-фактор

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Чипсет	AMD B550
Графика	1 x DisplayPort 1.2; 1 x HDMI 2.1(4K@60HZ)
Тип памет	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors; 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *; AMD RyzenTM 4000 G-Series Processors; 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CP
Expansion slots	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 (x16 mode); AMD RyzenTM 4000 G-Series Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD B550 Chipset; 1 x PCIe 3.0 x16 (x4 mode); 3 x PCIe 3.0 x1
Форм-фактор	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Connectors	1 x CPU Fan connector(s); 1 x CPU OPT Fan connector(s); 3 x Chassis Fan connector(s); 1 x AIO_PUMP connector; 2 x Aura RGB Strip Headers; 2 x Addressable Gen 2 header(s); 1 x USB 3.2 Gen 1 front panel TypeC™ connector; 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode); 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x M.2 with E key for Wi-Fi module; 1 x SPI TPM header; 6 x SATA 6Gb/s connector(s); 1 x Thunderbolt header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x 4-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x Thermal sensor connector(s); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x COM port header
Гаранция	36 Months
OS	Windows® 10 64-bit

Lan	Realtek RTL8125B 2.5Gb Ethernet; TUF LANGuard
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; Audio Feature : - Exclusive DTS Custom for GAMING Headsets.; - Optical S/PDIF out port(s) at back panel; - Audio cover; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors; - Unique de-pop circuit
Съхранение	Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports; AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode); AMD RyzenTM 4000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support; AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*2; 6 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

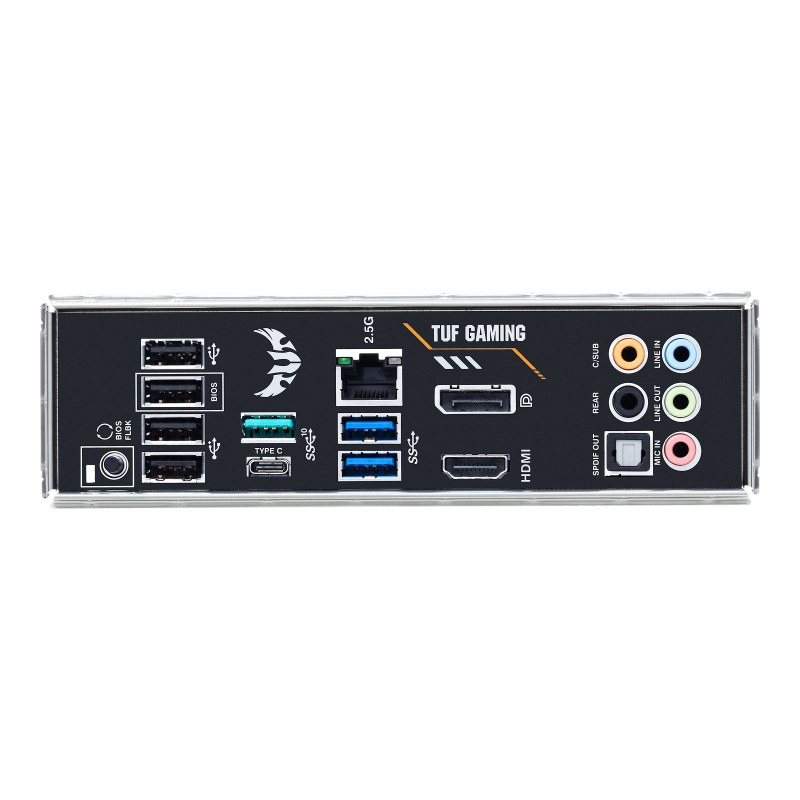

Rear panel I/O	1 x DisplayPort; 1 x HDMI; 1 x LAN (2.5G) port(s); 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®); 2 x USB 3.2 Gen 1 (blue) Type-A; 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™); 1 x Optical S/PDIF out; 5 x Audio jack(s); 1 x BIOS FlashBack™ Button(s)
Уебсайт на производителя	https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-B550-PRO/techspec/
Производител	Asus
