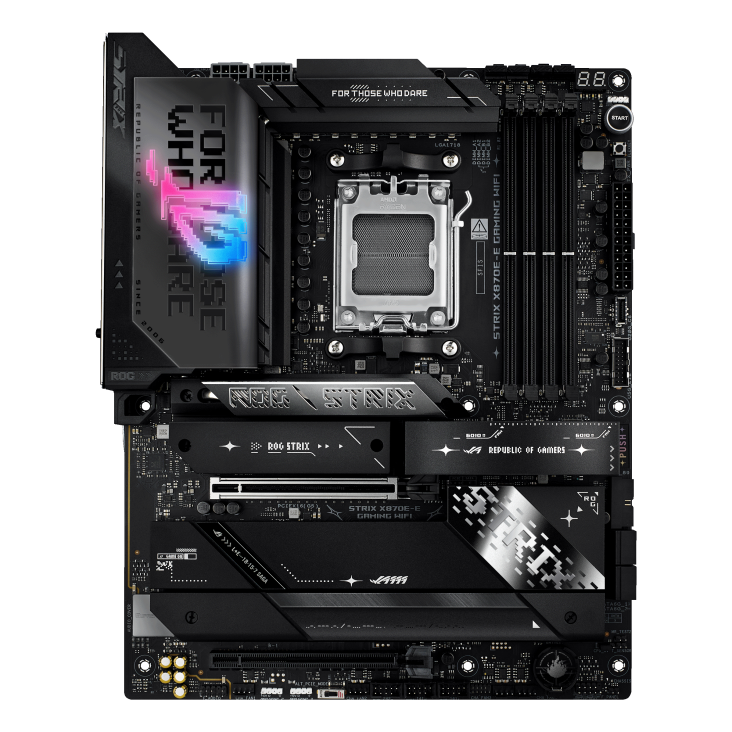

ASUS ROG STRIX X870E-E GAM WIF

Name: ASUS ROG STRIX X870E-E GAM WIF
Brand: ASUS
SKU: 4711387724163
Price: 612.62 EUR
Availability: InStock

EAN: 4711387724163

612,62 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD X870E

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Графика

1 x HDMI™ port;2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Тип памет

4 x DIMM slots, max. 256GB, DDR5;Supports up to;8000+MT/s(OC) with Ryzen™ 9000 Series Processors,;8400+MT/s(OC) with Ryzen™ 8000 Series Processors,;8000+MT/s(OC) with Ryzen™ 7000 Series Processors,;ECC and Non-ECC Un-buffered DIMM*;Dual Channel Memory Architecture ;Supports AMD EXTended Profiles for Overclocking (EXPO™);NitroPath DRAM Technology;ASUS Enhanced Memory Profile (AEMP)

Expansion slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD X870E Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)

Чипсет	AMD X870E
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Графика	1 x HDMI™ port;2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Тип памет	4 x DIMM slots, max. 256GB, DDR5;Supports up to;8000+MT/s(OC) with Ryzen™ 9000 Series Processors,;8400+MT/s(OC) with Ryzen™ 8000 Series Processors,;8000+MT/s(OC) with Ryzen™ 7000 Series Processors,;ECC and Non-ECC Un-buffered DIMM*;Dual Channel Memory Architecture ;Supports AMD EXTended Profiles for Overclocking (EXPO™);NitroPath DRAM Technology;ASUS Enhanced Memory Profile (AEMP)
Expansion slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD X870E Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)
Форм-фактор	ATX Form Factor;30.5 cm x 24.4 cm
Connectors	Fan and Cooling related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;5 x 4-pin Chassis Fan headers;Power related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage related ;5 x M.2 slots (Key M) ;4 x SATA 6Gb/s ports;USB 1 x USB 20Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support additional 4 USB 5Gbps ports;3 x USB 2.0 headers support additional 6 USB 2.0 ports ;Miscellaneous;3 x Addressable Gen 2 headers;1 x CPU Over Voltage jumper;1 x FlexKey button ;1 x Front Panel Audio header (F_AUDIO);1 x Start button;1 x 10-1 pin System Panel header;1 x Thermal Sensor header
Гаранция	36 Months
OS	Windows® 11 64-bit
Lan	1 x Realtek 5Gb Ethernet;ASUS LANGuard

USB	Rear USB (Total 13 ports);2 x USB4® (40Gbps) ports(2 x USB Type-C®);1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)*;10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®);Front USB (Total 11 ports);1 x USB 20Gbps connector (supports USB Type-C®) ;2 x USB 5Gbps headers support additional 4 USB 5Gbps ports;3 x USB 2.0 headers support additional 6 USB 2.0 ports ; USB Type-C® power delivery output: 5V/3A;** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback;Audio Features ;- Audio Shielding- Savitech SV3H712 AMP;- Gold-plated audio jacks;- Rear optical S/PDIF out port ;- Premium audio capacitors;- Audio cover; The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Съхранение	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)**;M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports);AMD X870E Chipset;M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports
Wireless	Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.;Bluetooth® v5.4
Bluetooth	5.4

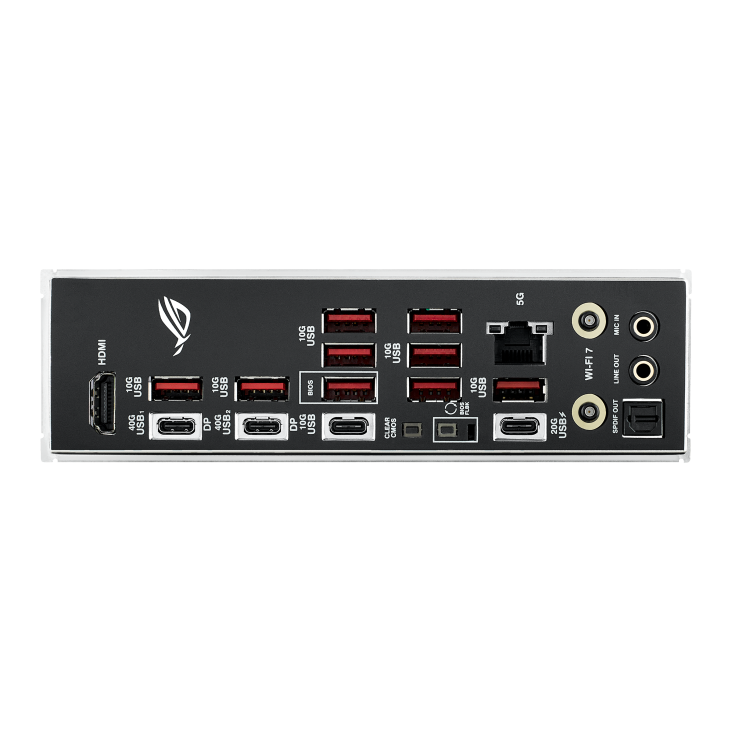

Rear panel I/O	2 x USB4® (40Gbps) ports (2 x USB Type-C®);1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge);10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®);1 x HDMI™ port;1 x Wi-Fi Module;1 x Realtek 5Gb Ethernet;2 x Gold-plated audio jacks ;1 x Optical S/PDIF out port1 x BIOS FlashBack™ button ;1 x Clear CMOS button
Уебсайт на производителя	https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/
Производител	ASUS
