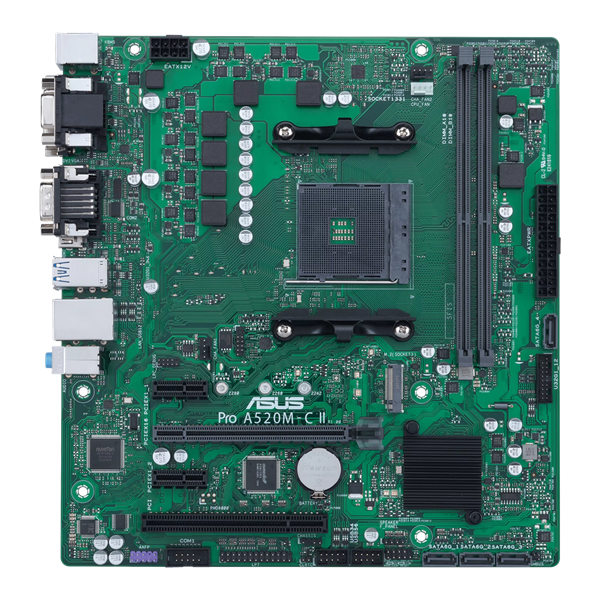

ASUS PRO A520M-C II/CSM /AM4

Name: ASUS PRO A520M-C II/CSM /AM4
Brand: ASUS
SKU: 4711081250098
Price: 88.36 EUR
Availability: OutOfStock

EAN: 4711081250098

88,36 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

A520

Графика

1 x DisplayPort 1.2;1 x D-Sub;1 x DVI-D;1 x HDMI™ 2.1(4K@60Hz)

Тип памет

DDR4;4866(O.C.)/ 4600(O.C.)/ 4466(O.C.)/ 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 346(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory;Dual Channel Memory Architecture

Expansion slots

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors;1 x PCIe 3.0 x16 slot (supports x16 mode);AMD A520 Chipset;2 x PCIe 3.0 x1 slots;1 x PCI slot

Форм-фактор

24.4cm x 22.9cm

Чипсет	A520
Графика	1 x DisplayPort 1.2;1 x D-Sub;1 x DVI-D;1 x HDMI™ 2.1(4K@60Hz)
Тип памет	DDR4;4866(O.C.)/ 4600(O.C.)/ 4466(O.C.)/ 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 346(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory;Dual Channel Memory Architecture
Expansion slots	AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors;1 x PCIe 3.0 x16 slot (supports x16 mode);AMD A520 Chipset;2 x PCIe 3.0 x1 slots;1 x PCI slot
Форм-фактор	24.4cm x 22.9cm
Connectors	Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;1 x M.2 slot (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports;Miscellaneous;1 x Clear CMOS header;1 x Chassis Intrude header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x LPC debug header;1 x LPT header;1 x SMBUS header;1 x Speaker header;1 x 10-1 pin System Panel header
OS	Windows 10 64bit

Lan	1 x Realtek 1Gb Ethernet
USB	4 x USB 3.2 Gen 1 ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB:Total 6 ports;1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Съхранение	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports;AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors;M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes);AMD A520 Chipset;4 x SATA 6Gb/s ports;Support RAID 0, 1, 10

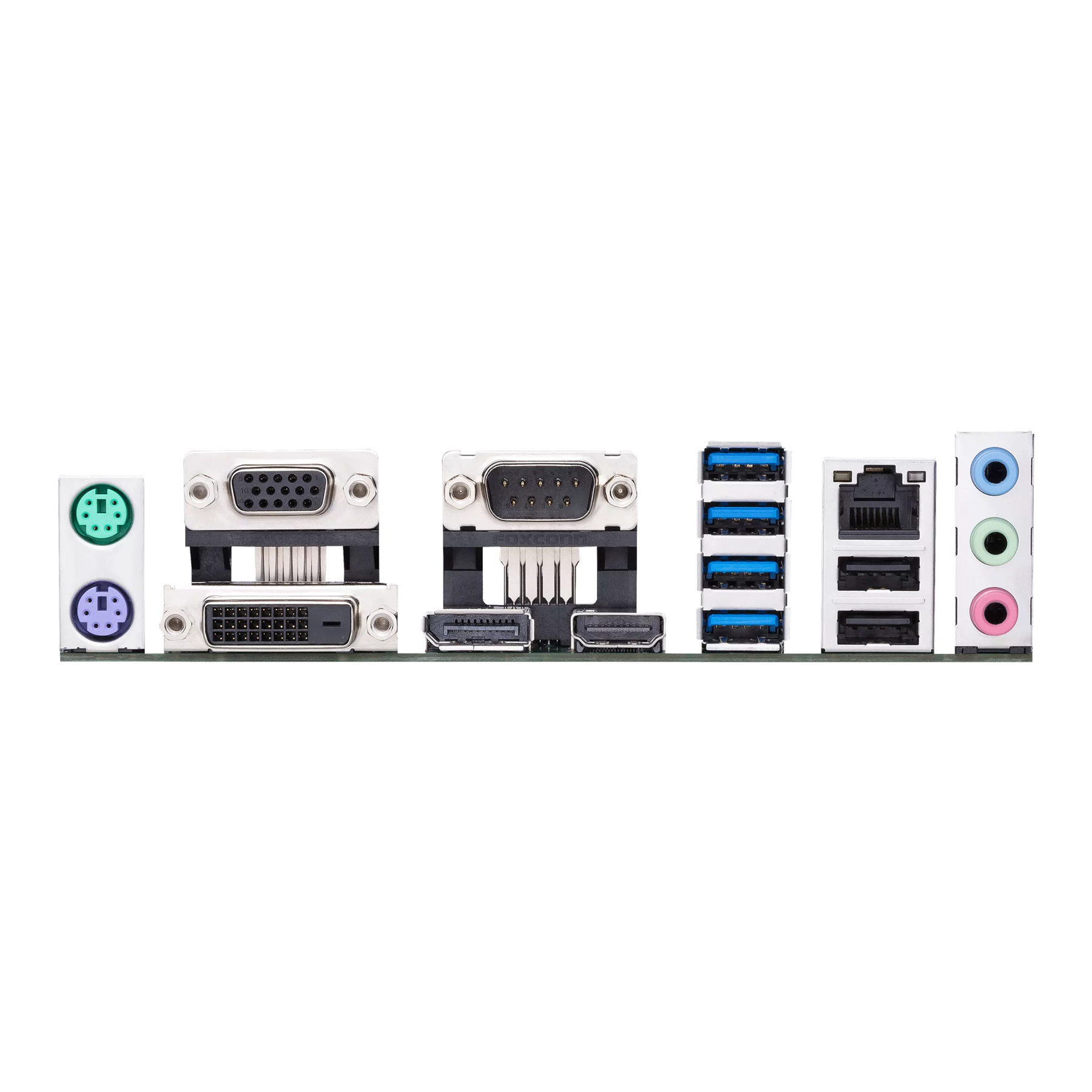

Rear panel I/O	4 x USB 3.2 Gen 1 ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x D-Sub port;1 x DVI-D port;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x COM port;1 x PS/2 Keyboard (purple) port;1 x PS/2 Mouse (green) port
Уебсайт на производителя	https://www.asus.com/motherboards-components/motherboards/csm/pro-a520m-c-ii-csm/
