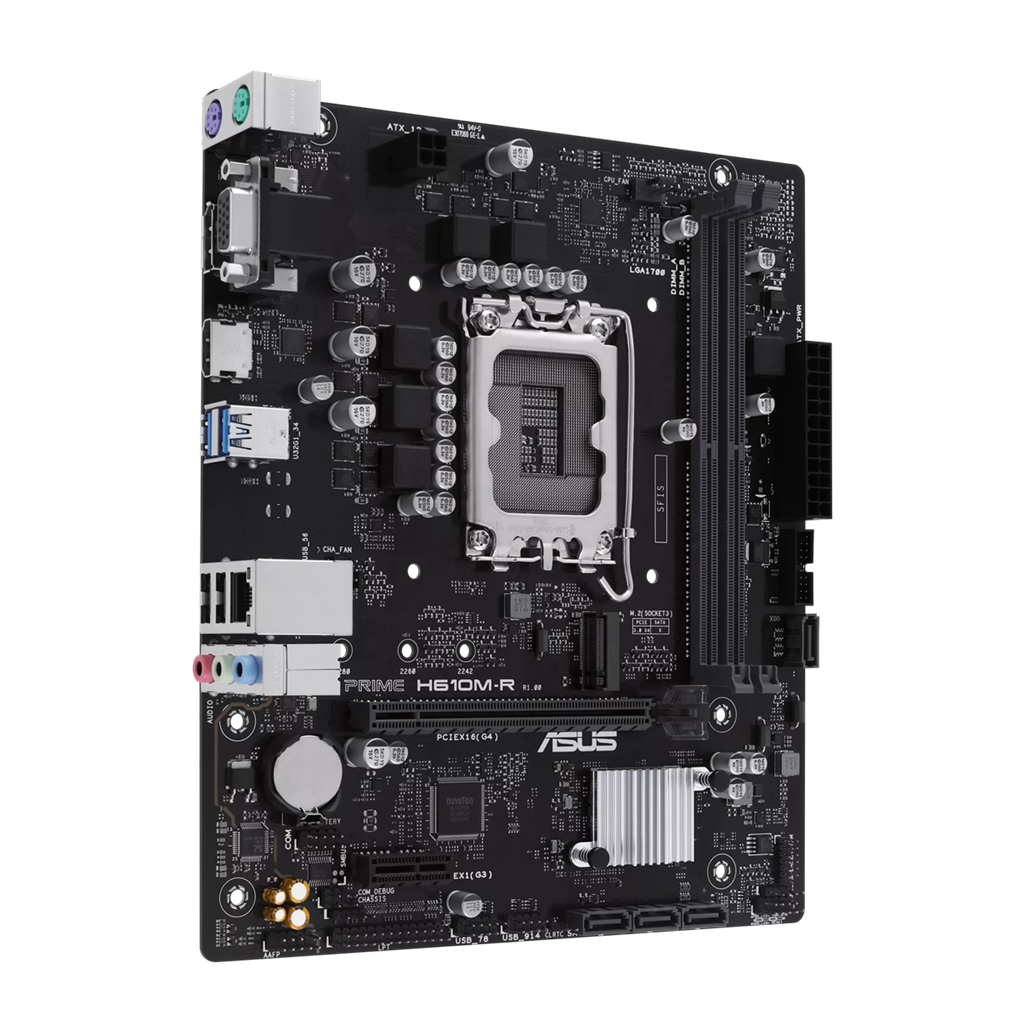

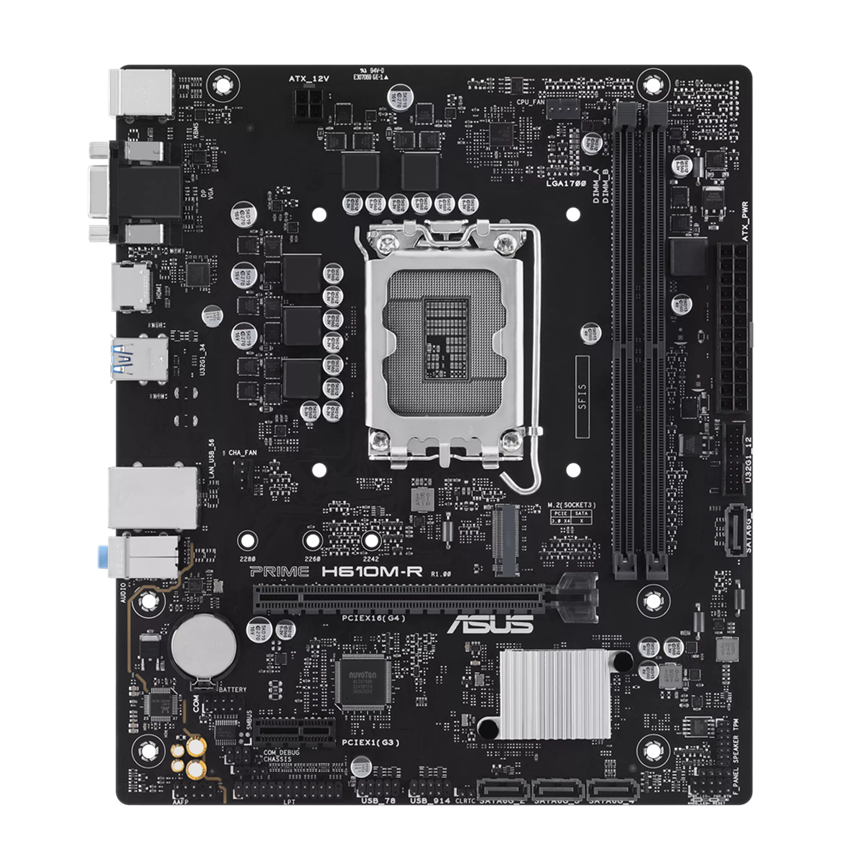

ASUS PRIME H610M-R-SI

Name: ASUS PRIME H610M-R-SI
Brand: ASUS
SKU: 4711387321515
Price: 53.76 EUR
Availability: InStock

EAN: 4711387321515

53,76 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® H610 Chipset

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports up to Intel® 65W CPU;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Графика

1 x DisplayPort;1 x VGA port;1 x HDMITM port

Тип памет

2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)

Expansion slots

Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot;Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot

Чипсет	Intel® H610 Chipset
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports up to Intel® 65W CPU;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Графика	1 x DisplayPort;1 x VGA port;1 x HDMITM port
Тип памет	2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)
Expansion slots	Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot;Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
Форм-фактор	mATX Form Factor, 22.6 cm x 19.5 cm
Connectors	Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin Chassis Fan header;Power related;1 x 24-pin Main Power connector;1 x 4-pin +12V Power connector;Storage related;1 x M.2 slot (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports;Miscellaneous;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x LPT header;1 x Speaker header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin System Panel header
Гаранция	36 Months
OS	Windows® 11 64-bit, Windows® 10 64-bit

Lan	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 4 ports);2 x USB 3.2 Gen 1(5G) ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 6 ports);1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Съхранение	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports;Intel® H610 Chipset;M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);4 x SATA 6Gb/s ports

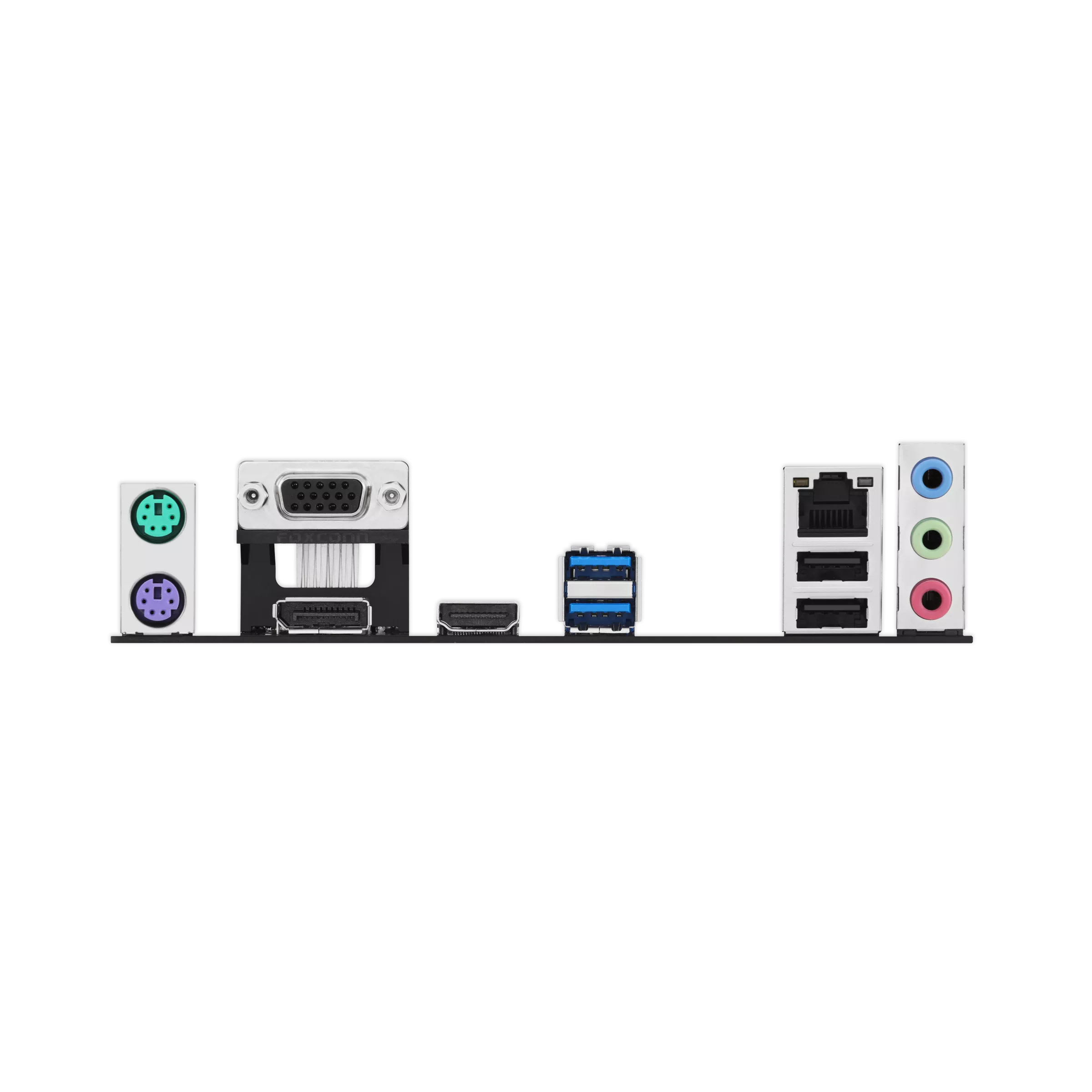

Rear panel I/O	2 x USB 3.2 Gen 1(5G) ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x VGA port;1 x HDMITM port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard (purple) port;1 x PS/2 Mouse (green) port
Уебсайт на производителя	https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-r/
Производител	ASUS
