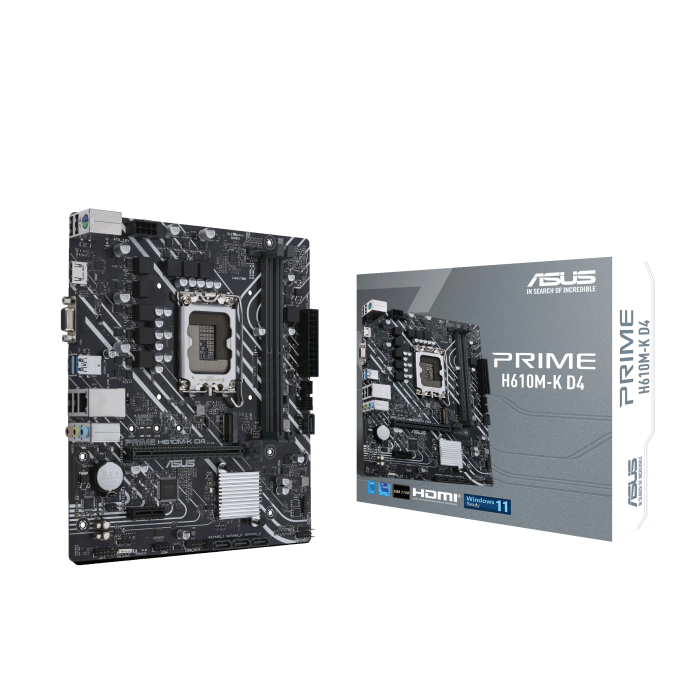

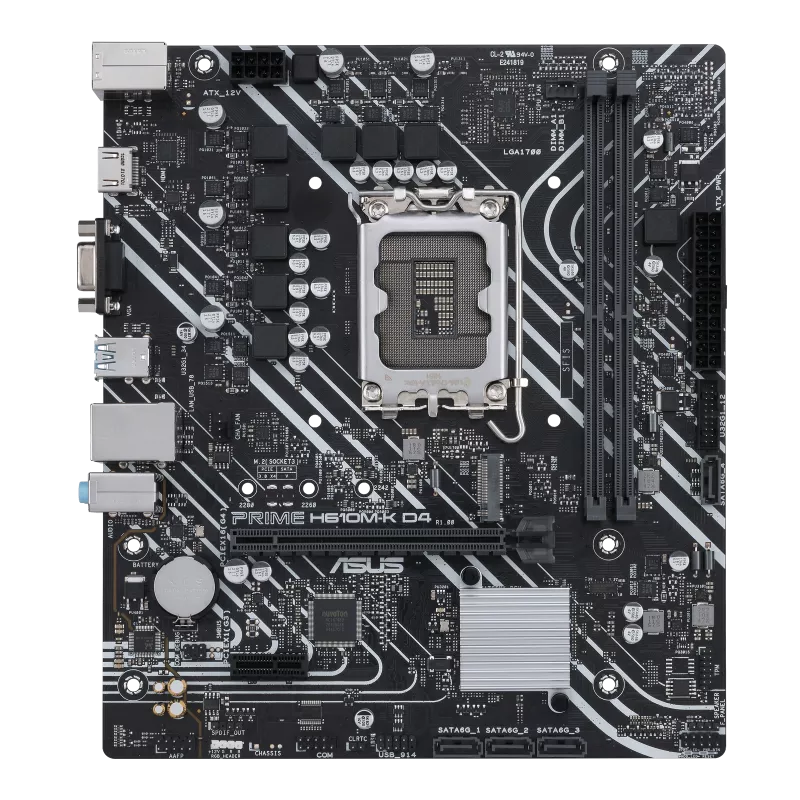

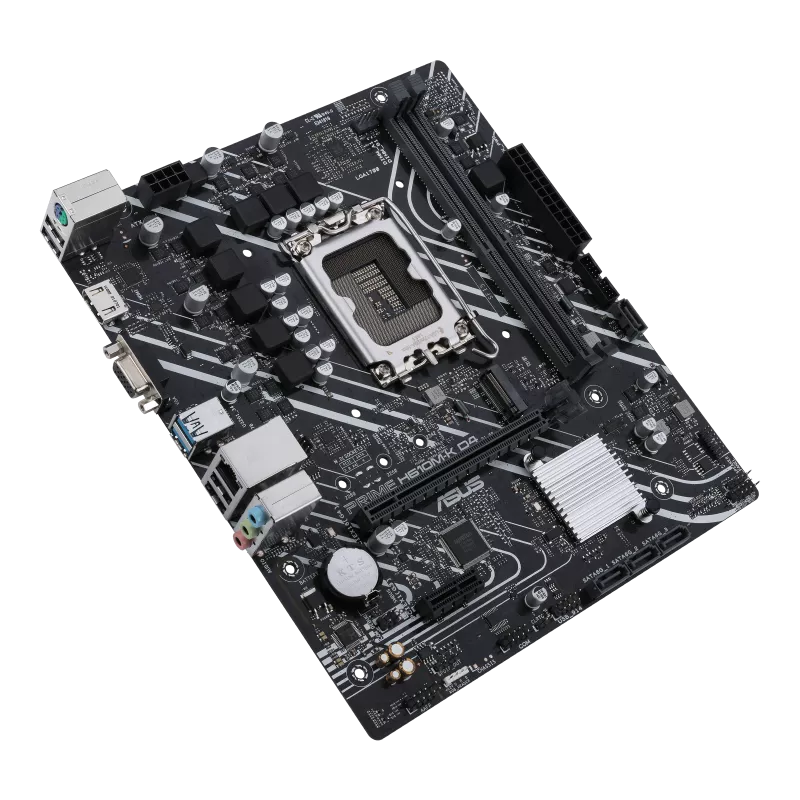

ASUS PRIME H610M-K D4 /LGA1700

Name: ASUS PRIME H610M-K D4 /LGA1700
Brand: ASUS
SKU: 4711081565499
Price: 68.54 EUR
Availability: InStock

EAN: 4711081565499

68,54 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Графика

1 x D-Sub port; 1 x HDMI® port**

Тип памет

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

Expansion slots

Intel® 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® H610 Chipset; 1 x PCIe 3.0 x1 slot

Форм-фактор

mATX Form Factor; 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Connectors

1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

Графика	1 x D-Sub port; 1 x HDMI® port**
Тип памет	2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)
Expansion slots	Intel® 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® H610 Chipset; 1 x PCIe 3.0 x1 slot
Форм-фактор	mATX Form Factor; 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Connectors	1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
Гаранция	36 Months
OS	Windows® 11 64-bit, Windows® 10 64-bit

Lan	1 x Realtek 1Gb Ethernet
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Dedicated audio PCB layers
Съхранение	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports

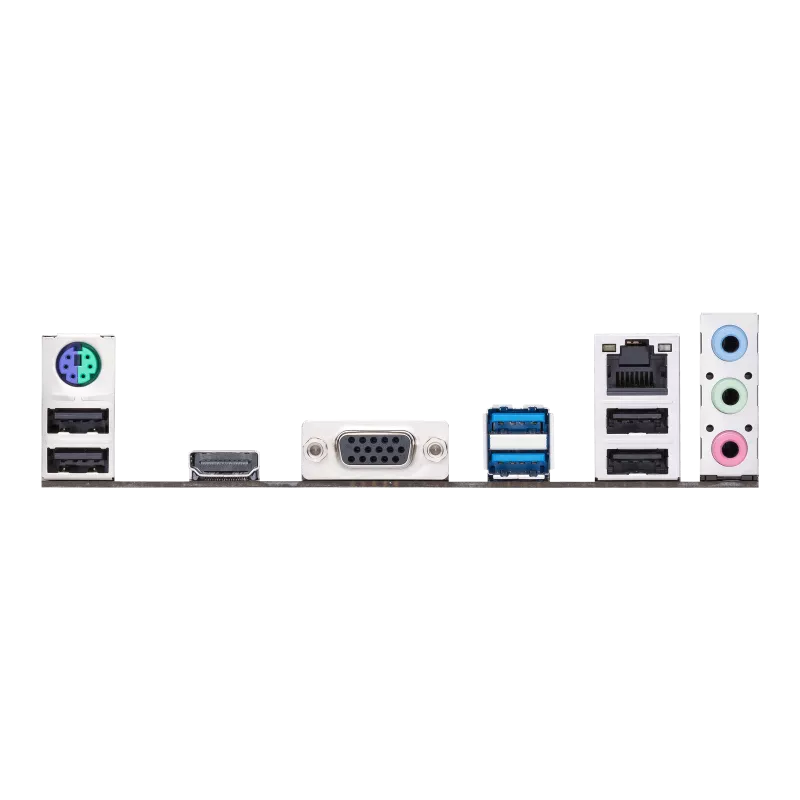

Rear panel I/O	2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x D-Sub port; 1 x HDMI® port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
Уебсайт на производителя	https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-K-D4/techspec/
