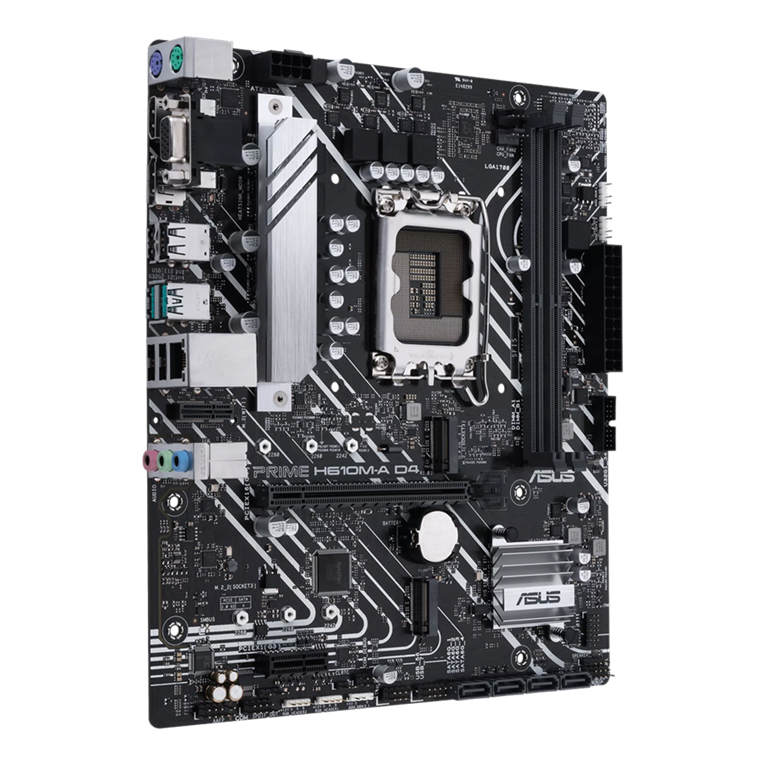

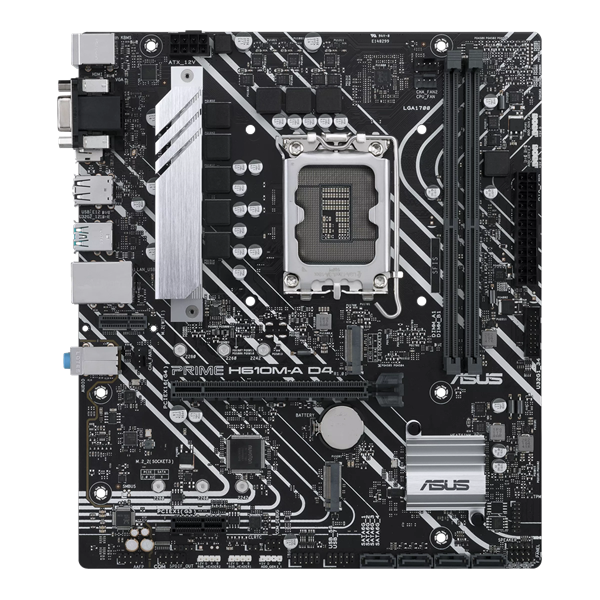

ASUS PRIME H610M-A D4-CSM

Name: ASUS PRIME H610M-A D4-CSM
Brand: ASUS
SKU: 4711387309902
Price: 82.46 EUR
Availability: OutOfStock

EAN: 4711387309902

82,46 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® H610 Chipset

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Графика

1 x DisplayPort;1 x D-Sub port;1 x HDMI® port

Тип памет

2 x DIMM, Max. 64GB, DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)

Expansion slots

Intel® Core™ Processors (14th & 13th & 12th Gen);1 x PCIe 4.0 x16 slot;Intel® H610 Chipset;1 x PCIe 3.0 x1 slot

Чипсет	Intel® H610 Chipset
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Графика	1 x DisplayPort;1 x D-Sub port;1 x HDMI® port
Тип памет	2 x DIMM, Max. 64GB, DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)
Expansion slots	Intel® Core™ Processors (14th & 13th & 12th Gen);1 x PCIe 4.0 x16 slot;Intel® H610 Chipset;1 x PCIe 3.0 x1 slot
Форм-фактор	mATX Form Factor;24.4 cm x 21.1 cm
Connectors	Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 3 USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;2 x AURA RGB headers;1 x Clear CMOS header;1 x Front Panel Audio header (AAFP);1 x COM Port header;1 x S/PDIF Out header;1 x Speaker header;1 x SPI TPM header (14-1pin);1 x 10-1 pin System Panel header
Гаранция	36 Months
OS	Windows® 11 64-bit, Windows® 10 64-bit

Lan	1 x Intel® 1Gb Ethernet
USB	Rear USB (Total 6 ports);2 x USB 3.2 Gen 2 ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 3 USB 2.0 ports
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Съхранение	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® H610 Chipset;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode);4 x SATA 6Gb/s ports
Wireless	V-M.2 slot only (Key E, CNVi & PCIe)

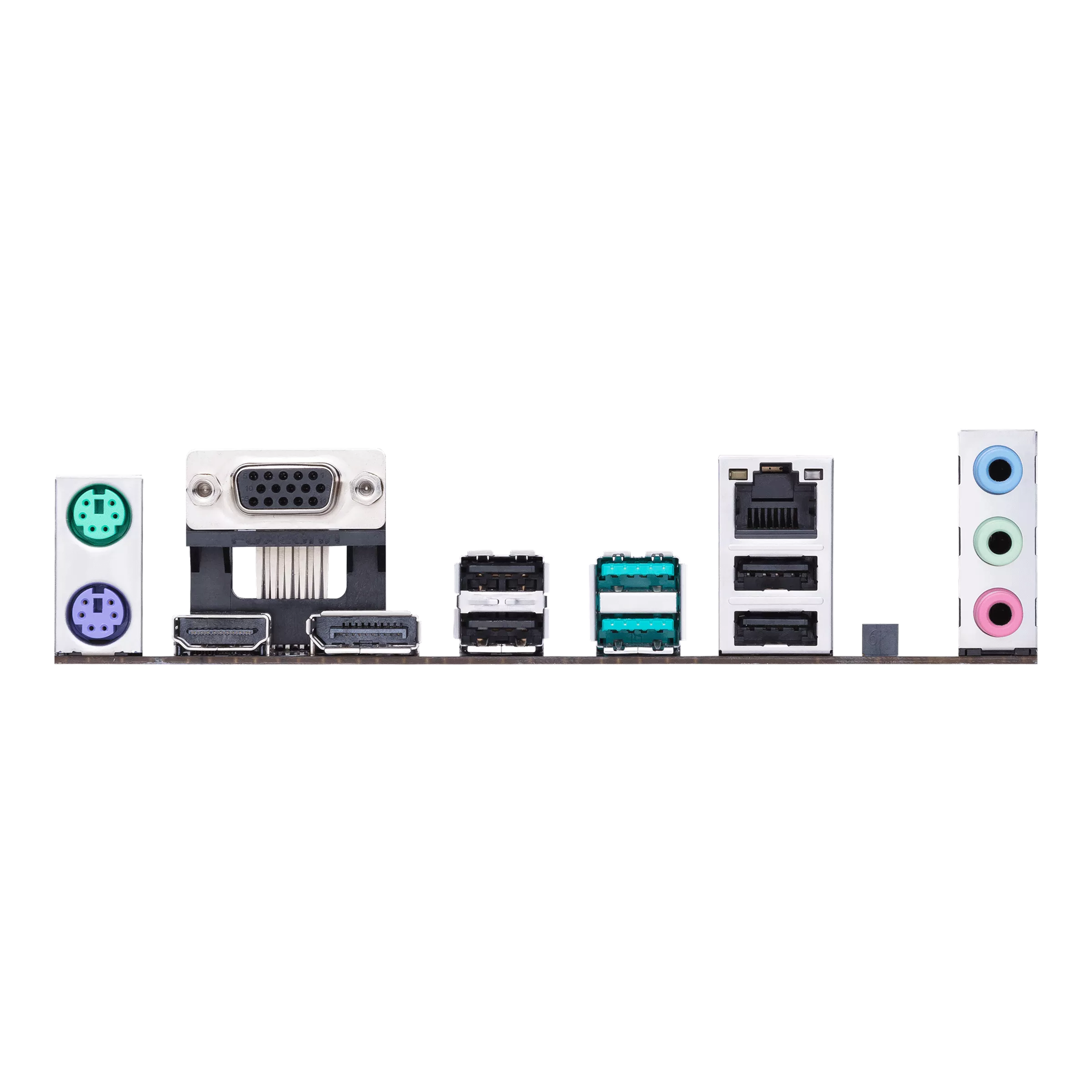

Rear panel I/O	2 x USB 3.2 Gen 2 ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x D-Sub port;1 x V-M.2 slot (Key E);1 x Intel® 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard (purple) port;1 x PS/2 Mouse (green) port
Уебсайт на производителя	https://www.asus.com/motherboards-components/motherboards/csm/prime-h610m-a-d4-csm/
Производител	ASUS
