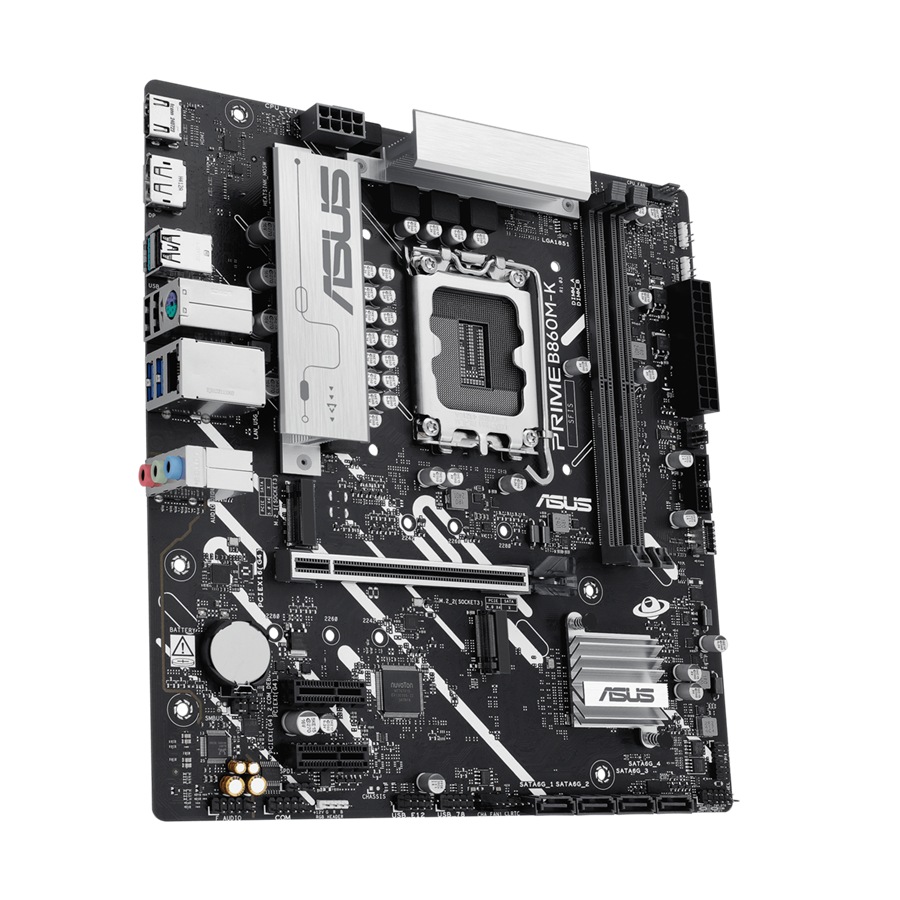

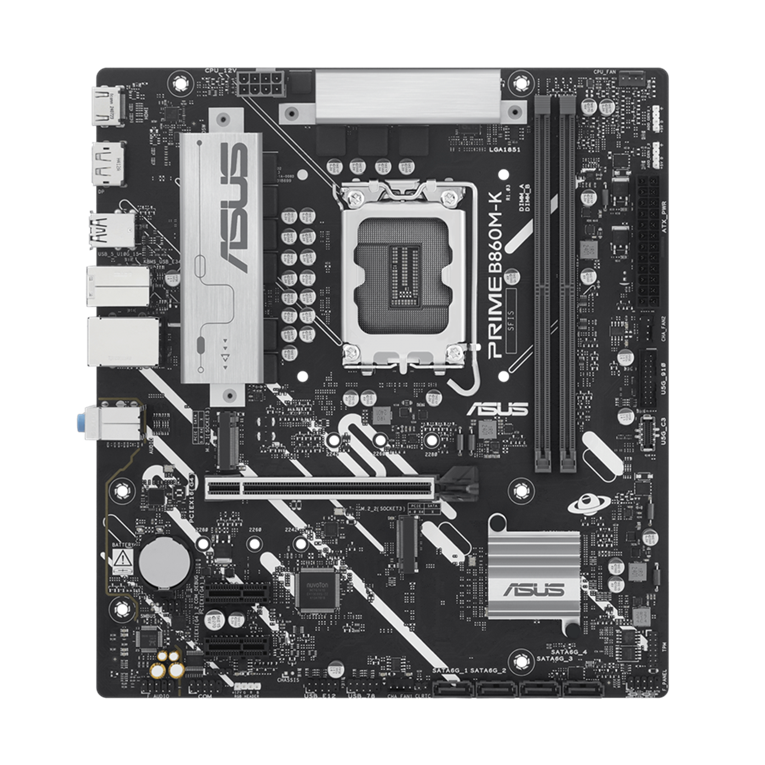

ASUS PRIME B860M-K

Name: ASUS PRIME B860M-K
Brand: ASUS
SKU: 4711387808498
Price: 160.25 EUR
Availability: OutOfStock

EAN: 4711387808498

160,25 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® B860 Chipset

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Графика

1 x DisplayPort;1 x HDMI™ port

Тип памет

2 x DIMM slots, max. 128GB, DDR5;Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII)

Expansion slots

Intel® Core™ Ultra Processors (Series 2);1 x PCIe 4.0 x16 slot;Intel® B860 Chipset;2 x PCIe 4.0 x1 slots

Чипсет	Intel® B860 Chipset
CPU	Supports Intel® Core™ Ultra Processors (Series 2), LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Графика	1 x DisplayPort;1 x HDMI™ port
Тип памет	2 x DIMM slots, max. 128GB, DDR5;Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII)
Expansion slots	Intel® Core™ Ultra Processors (Series 2);1 x PCIe 4.0 x16 slot;Intel® B860 Chipset;2 x PCIe 4.0 x1 slots
Форм-фактор	micro-ATX Form Factor;24.4cm x 22.2cm
Connectors	Fan and Cooling Related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connectorStorage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;2 x Addressable Gen2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header1 x SPI TPM header (14-1 pin);1 x 10-1 pin Front Panel System header
Гаранция	36 Months
OS	Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

Lan	1 x Realtek 2.5Gb Ethernet;ASUS LANGuard
USB	Rear USB (Total 6 ports);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);3 x USB 2.0 ports (3 x Type-A);Front USB (Total 7 ports);1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
BIOS	256(128+128) Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Съхранение	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® B860 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

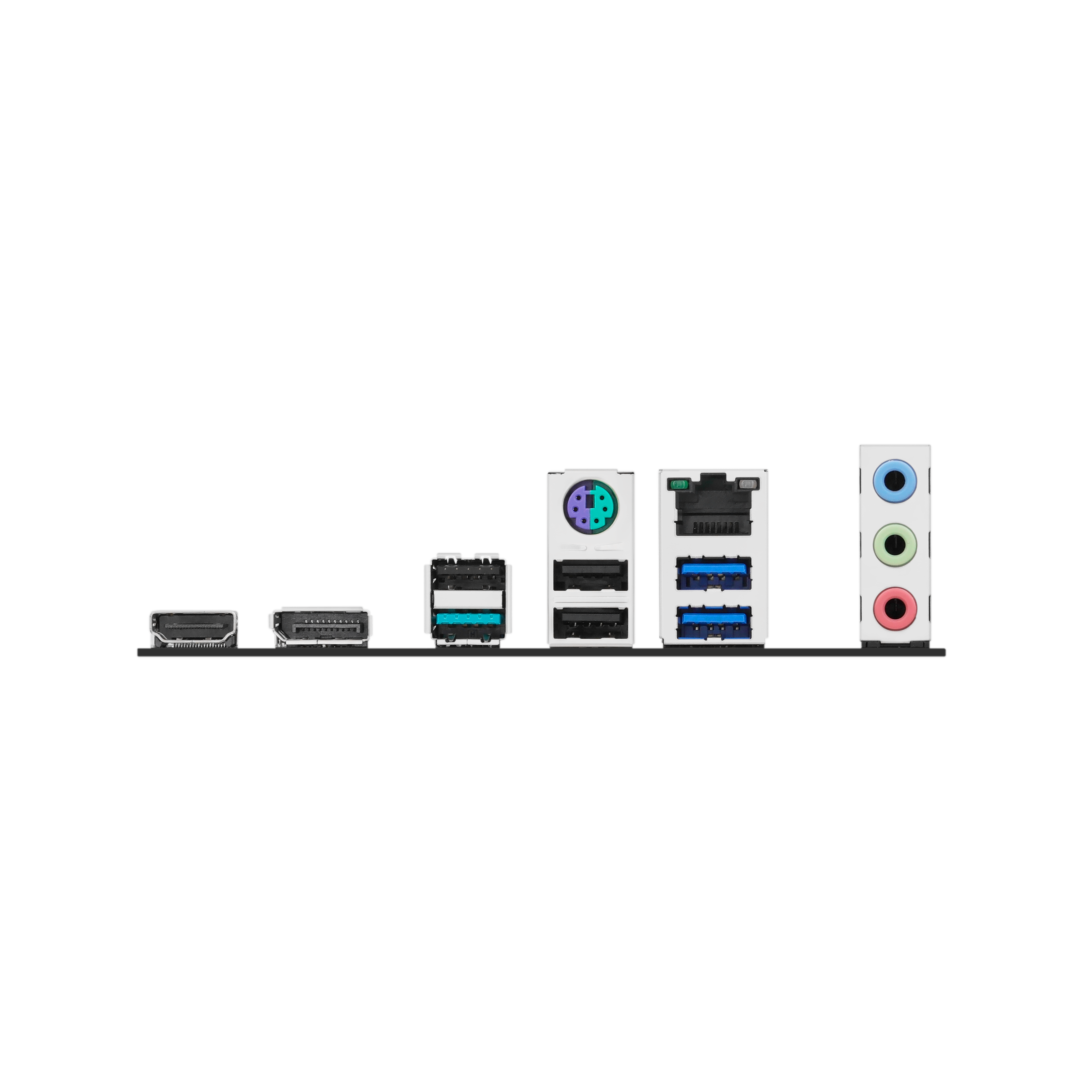

Rear panel I/O	1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);3 x USB 2.0 ports (3 x Type-A);1 x DisplayPort;1 x HDMITM port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port
Уебсайт на производителя	https://www.asus.com/motherboards-components/motherboards/prime/prime-b860m-k/
Производител	ASUS
