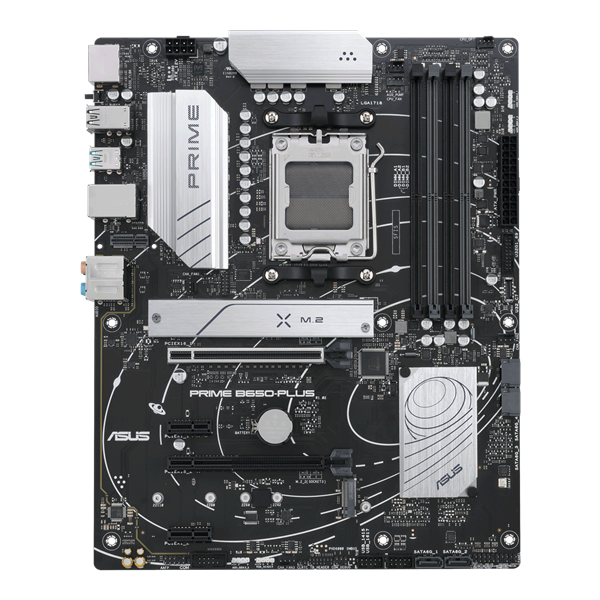

ASUS PRIME B650-PLUS /AM5

Name: ASUS PRIME B650-PLUS /AM5
Brand: ASUS
SKU: 4711081923381
Price: 163.33 EUR
Availability: OutOfStock

EAN: 4711081923381

163,33 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD B650 Chipset

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Графика

1 x DisplayPort; 1 x HDMI® port;

Тип памет

4 x DIMM, Max. 192GB, DDR5+7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II

Expansion slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x1 slots

Чипсет	AMD B650 Chipset
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Графика	1 x DisplayPort; 1 x HDMI® port;
Тип памет	4 x DIMM, Max. 192GB, DDR5+7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II
Expansion slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x1 slots
Форм-фактор	ATX ( 30.5 cm x 24.4 cm )
Connectors	Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header
Гаранция	36 Months
OS	Windows® 11, Windows® 10 64-bit

Lan	1 x Realtek 2.5Gb Ethernet
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features: Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
Съхранение	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode); AMD B650 Chipset: 4 x SATA 6Gb/s ports
Wireless	Vertical M.2 slot only (Key E, PCIe)

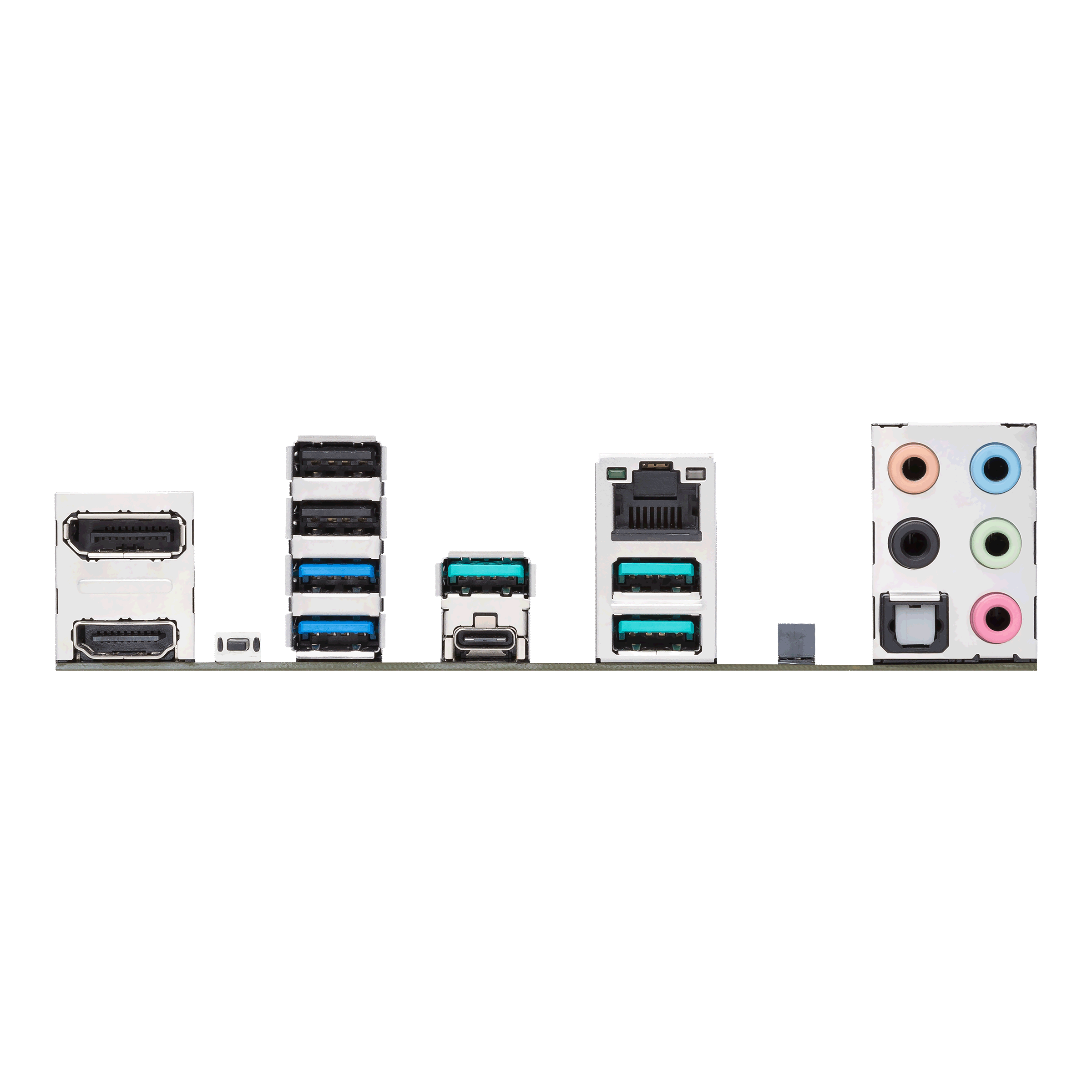

Rear panel I/O	Back Panel I/O Ports; 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Vertical M.2 slot (Key E); 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button
Уебсайт на производителя	https://www.asus.com/motherboards-components/motherboards/prime/prime-b650-plus/
Производител	ASUS
