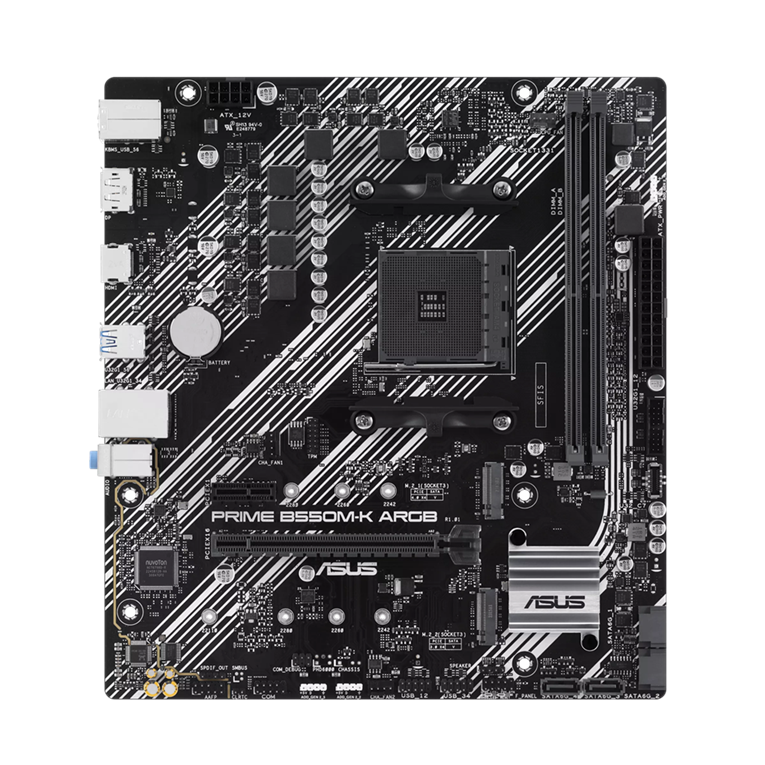

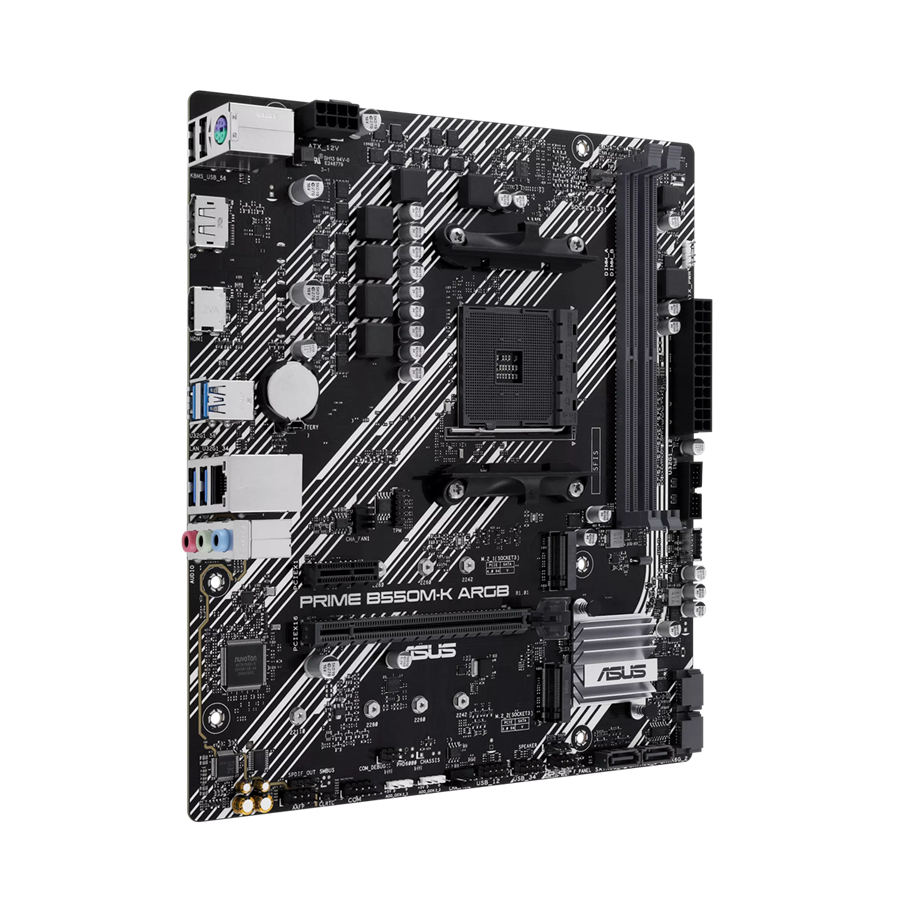

ASUS PRIME B550M-K ARGB /AM4

Name: ASUS PRIME B550M-K ARGB /AM4
Brand: ASUS
SKU: 4711387316030
Price: 92.75 EUR
Availability: OutOfStock

EAN: 4711387316030

92,75 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD B550

CPU

AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Графика

1 x DisplayPort;1 x HDMI™ port

Тип памет

2 x DIMM slots, Max. 64GB, DDR4;5100(OC)/ 4866(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory;Dual Channel Memory Architecture

Expansion slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors;1 x PCIe 3.0 x16 slot (supports x16 mode);AMD B550 Chipset;1 x PCIe 3.0 x1 slot

Чипсет	AMD B550
CPU	AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Графика	1 x DisplayPort;1 x HDMI™ port
Тип памет	2 x DIMM slots, Max. 64GB, DDR4;5100(OC)/ 4866(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory;Dual Channel Memory Architecture
Expansion slots	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors;1 x PCIe 3.0 x16 slot (supports x16 mode);AMD B550 Chipset;1 x PCIe 3.0 x1 slot
Форм-фактор	micro-ATX Form Factor;24.4 cm x 22.1 cm
Connectors	Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® );1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x Speaker header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin System Panel header
Гаранция	36 Months
OS	Windows® 11, Windows® 10 64-bit

Lan	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 6 ports);4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®);1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Съхранение	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes);AMD B550 Chipset;M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes);4 x SATA 6Gb/s ports; AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

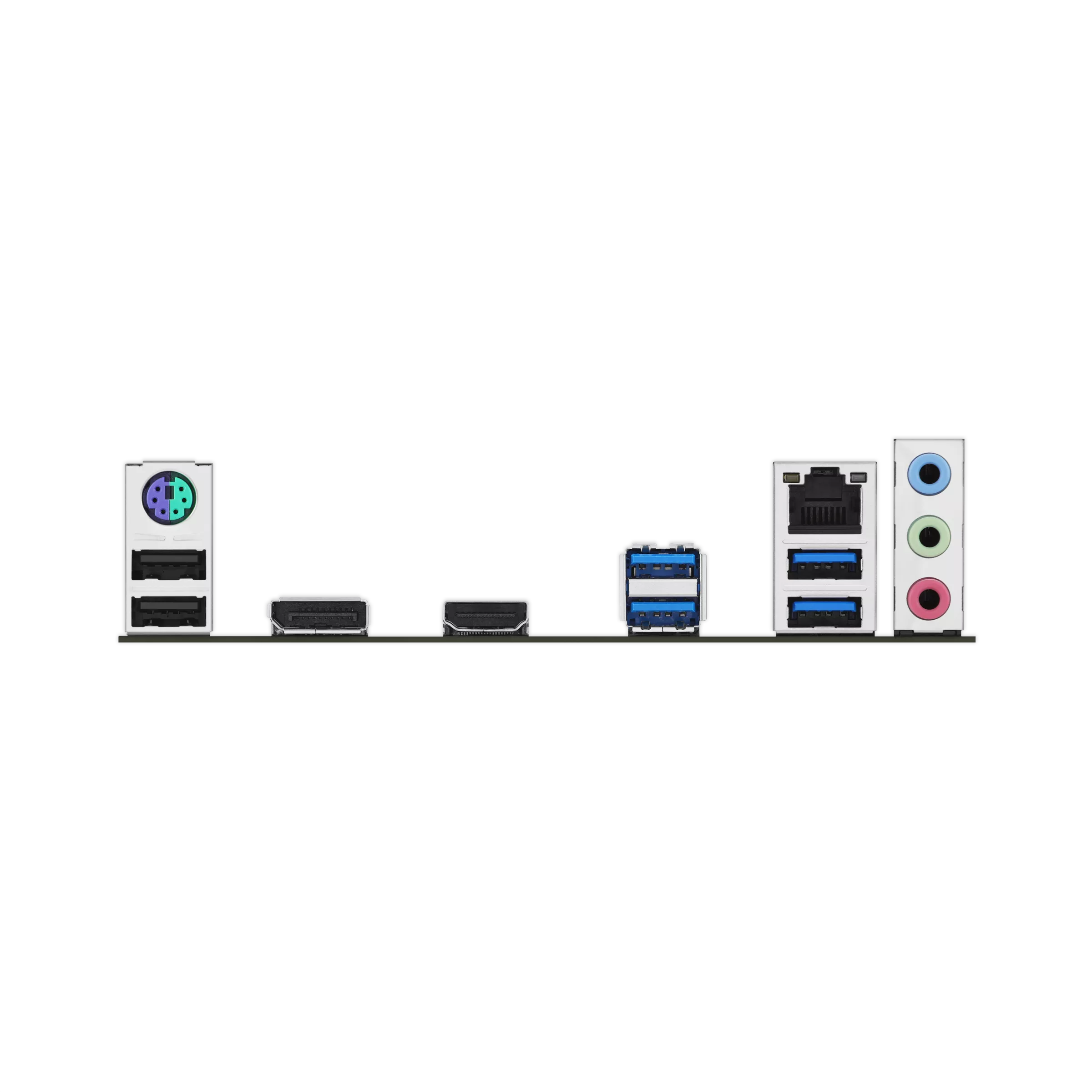

Rear panel I/O	4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port
Уебсайт на производителя	https://www.asus.com/motherboards-components/motherboards/prime/prime-b550m-k-argb/techspec/
Производител	ASUS
