ASUS TUF GAMING A520M-PLUS II

Name: ASUS TUF GAMING A520M-PLUS II
Brand: ASUS
SKU: 4718017826921
Price: 98.00 EUR
Availability: OutOfStock

EAN: 4718017826921

98,00 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

A520

Графика

1 x DisplayPort 1.2; 1 x HDMITM 2.1(4K@60Hz); 1 x D-Sub

Тип памет

4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*; Dual Channel Memory Architecture

Expansion slots

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors; 1 x PCIe 3.0 x16 slot (supports x16 mode); AMD A520 Chipset; 2 x PCIe 3.0 x1 slots

Форм-фактор

microATX; 24.4cm x 24.4cm

Чипсет	A520
Графика	1 x DisplayPort 1.2; 1 x HDMITM 2.1(4K@60Hz); 1 x D-Sub
Тип памет	4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*; Dual Channel Memory Architecture
Expansion slots	AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors; 1 x PCIe 3.0 x16 slot (supports x16 mode); AMD A520 Chipset; 2 x PCIe 3.0 x1 slots
Форм-фактор	microATX; 24.4cm x 24.4cm
Connectors	1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 2 x AURA Addressable Gen 2 header; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
Гаранция	36 Months

OS	Windows® 10 64-bit
Lan	1 x Realtek 1Gb Ethernet; TUF LANGuard; 1 x Realtek 1Gb Ethernet; TUF LANGuard
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*; - Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium Japanese audio capacitors; - Dedicated audio PCB layers
Съхранение	Total supports 1 x M.2 slot and 4 x SATA; 6Gb/s ports; AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); AMD A520 Chipset; 4 x SATA 6Gb/s ports; Support RAID 0, 1, 10

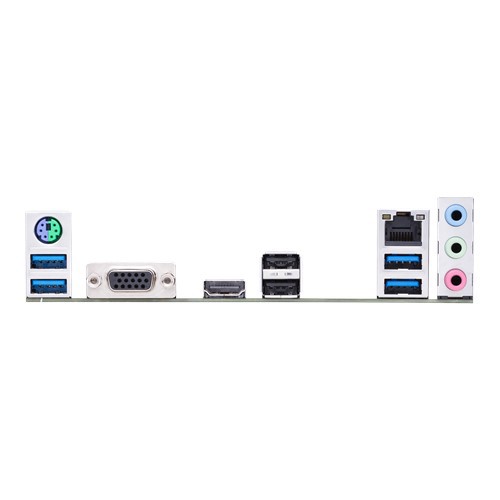

Rear panel I/O	4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x BIOS FlashBack™ button; 1 x DisplayPort; 1 x HDMI port; 1 x D-Sub; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
Уебсайт на производителя	https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-A520M-PLUS-II/techspec/
