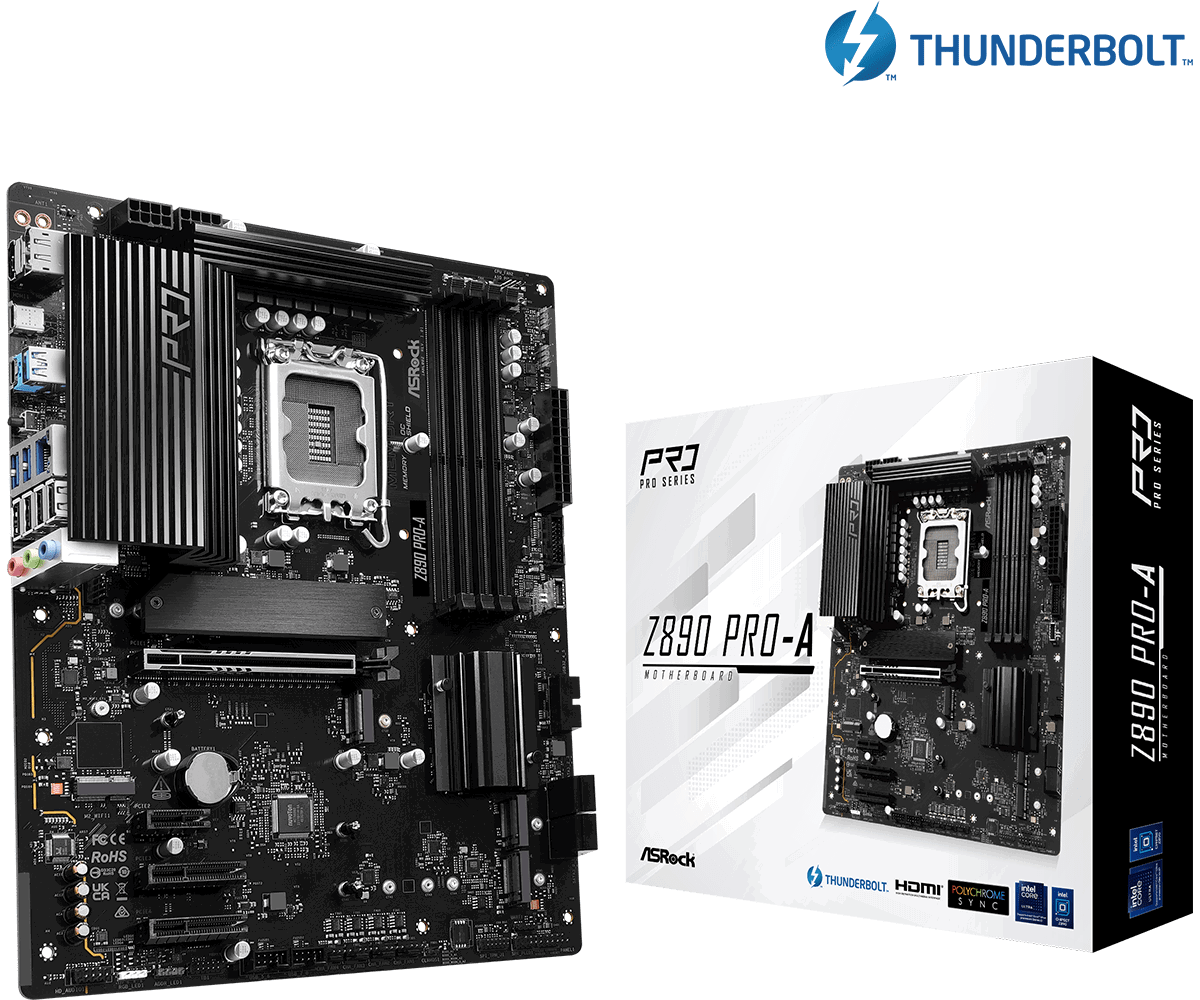

ASROCK Z890 PRO-A

Name: ASROCK Z890 PRO-A
Brand: ASROCK
SKU: 4710483947537
Price: 181.54 EUR
Availability: InStock

EAN: 4710483947537

181,54 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® Z890

Графика

- Intel® Xe LPG Graphics Architecture;- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz;- 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Тип памет

- Dual Channel DDR5 Memory Technology;- 4 x DDR5 DIMM Slots;- Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*;- Supports Clocked Unbuffered DIMM (CUDIMM);- Max. capacity of system memory: 256GB;- Supports Intel® Extreme Memory Profile (XMP) 3.0x

Expansion slots

CPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Форм-фактор

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;- 2oz Copper PCB

Чипсет	Intel® Z890
Графика	- Intel® Xe LPG Graphics Architecture;- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz;- 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Тип памет	- Dual Channel DDR5 Memory Technology;- 4 x DDR5 DIMM Slots;- Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*;- Supports Clocked Unbuffered DIMM (CUDIMM);- Max. capacity of system memory: 256GB;- Supports Intel® Extreme Memory Profile (XMP) 3.0x
Expansion slots	CPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Форм-фактор	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;- 2oz Copper PCB
Connectors	- 1 x SPI TPM Header;- 1 x Power LED and Speaker Header;- 1 x RGB LED Header;- 3 x Addressable LED Headers;- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);- 1 x 24 pin ATX Power Connector;- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);- 1 x Front Panel Audio Connector;- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports);- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Гаранция	36 Months

OS	Microsoft Windows® 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock My Favorites in UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash
Lan	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;- Dragon RTL8125BG;- Supports Dragon 2.5G LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streaming Modes;- User Customized Priority Control
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Съхранение	CPU;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes;- 4 x SATA3 6.0 Gb/s Connectors;- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

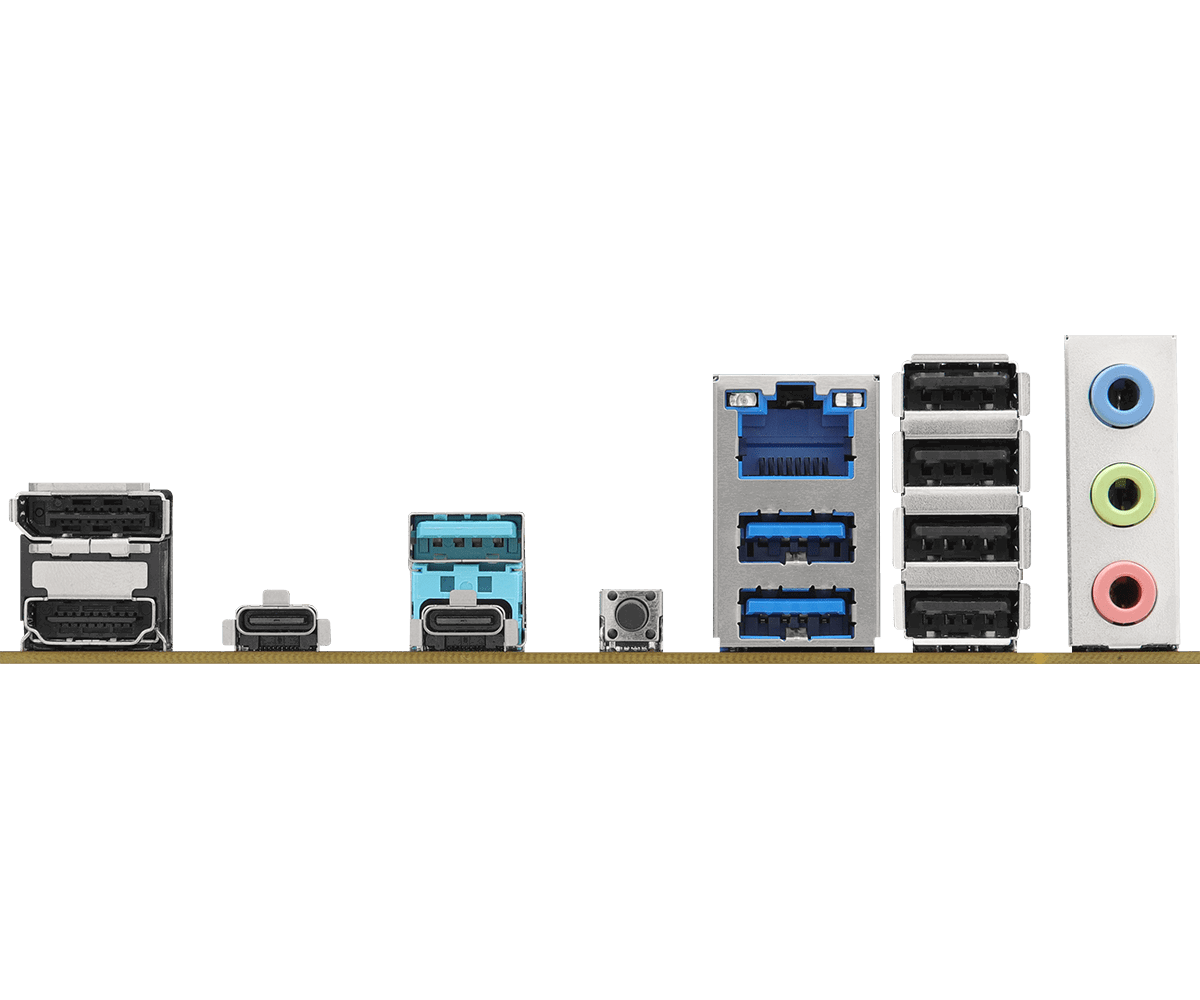

Rear panel I/O	CPU;- 1 x Thunderbolt™ 4 Type-C (Rear);- 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 1 x USB 3.2 Gen2 Type-A (Rear);- 6 x USB 3.2 Gen1 (2 Rear, 4 Front);- 8 x USB 2.0 (4 Rear, 4 Front);- 2 x Antenna Mounting Points;- 1 x HDMI Port;- 1 x DisplayPort 1.4;- 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*;- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s);- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s);- 2 x USB 3.2 Gen1 Ports;- 4 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- 1 x BIOS Flashback Button;- HD Audio Jacks: Line in / Front Speaker / Microphone
Уебсайт на производителя	https://www.asrock.com/mb/Intel/Z890%20Pro-A/index.asp
