ASROCK Мрежово оборудване Изчерпан

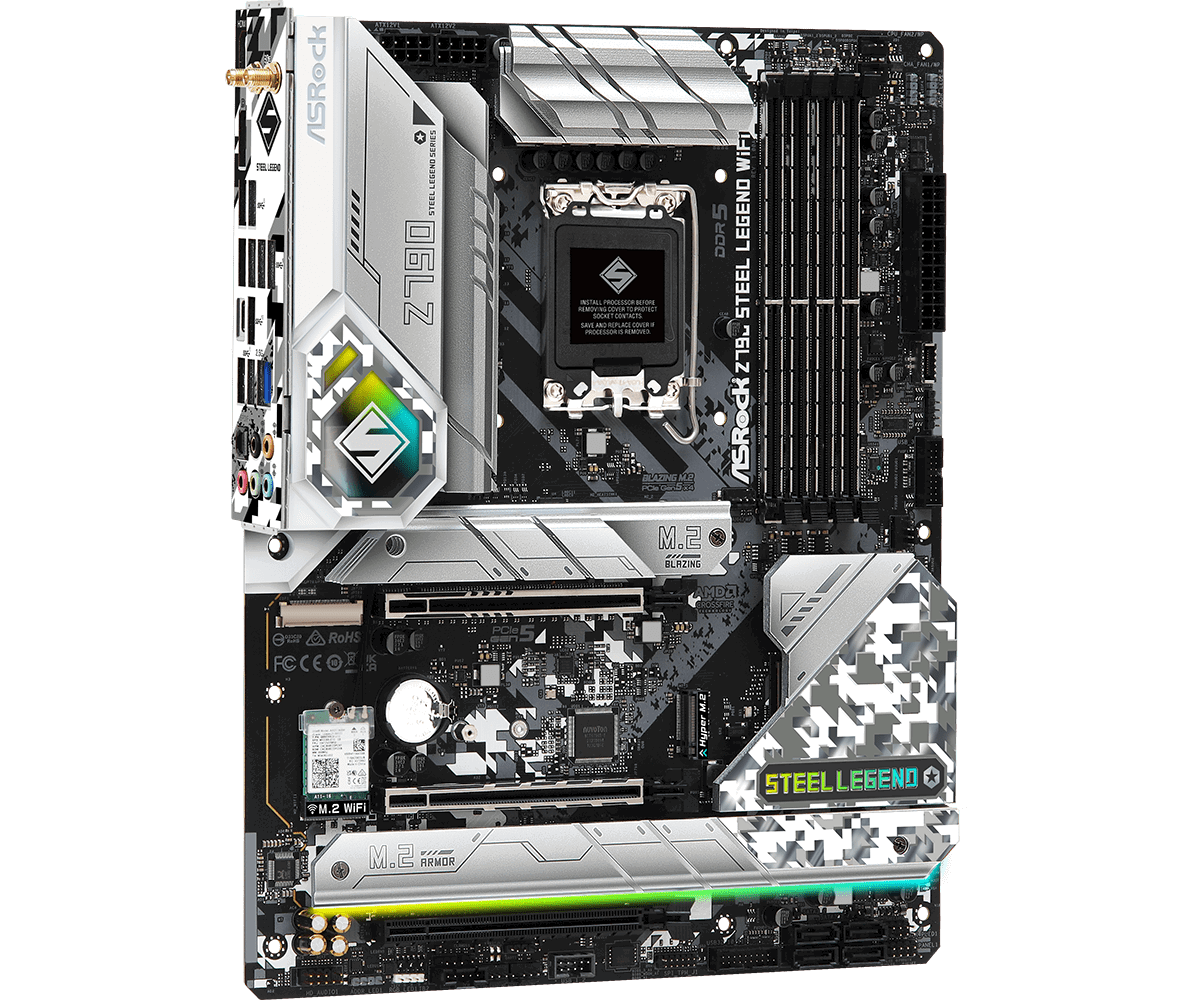

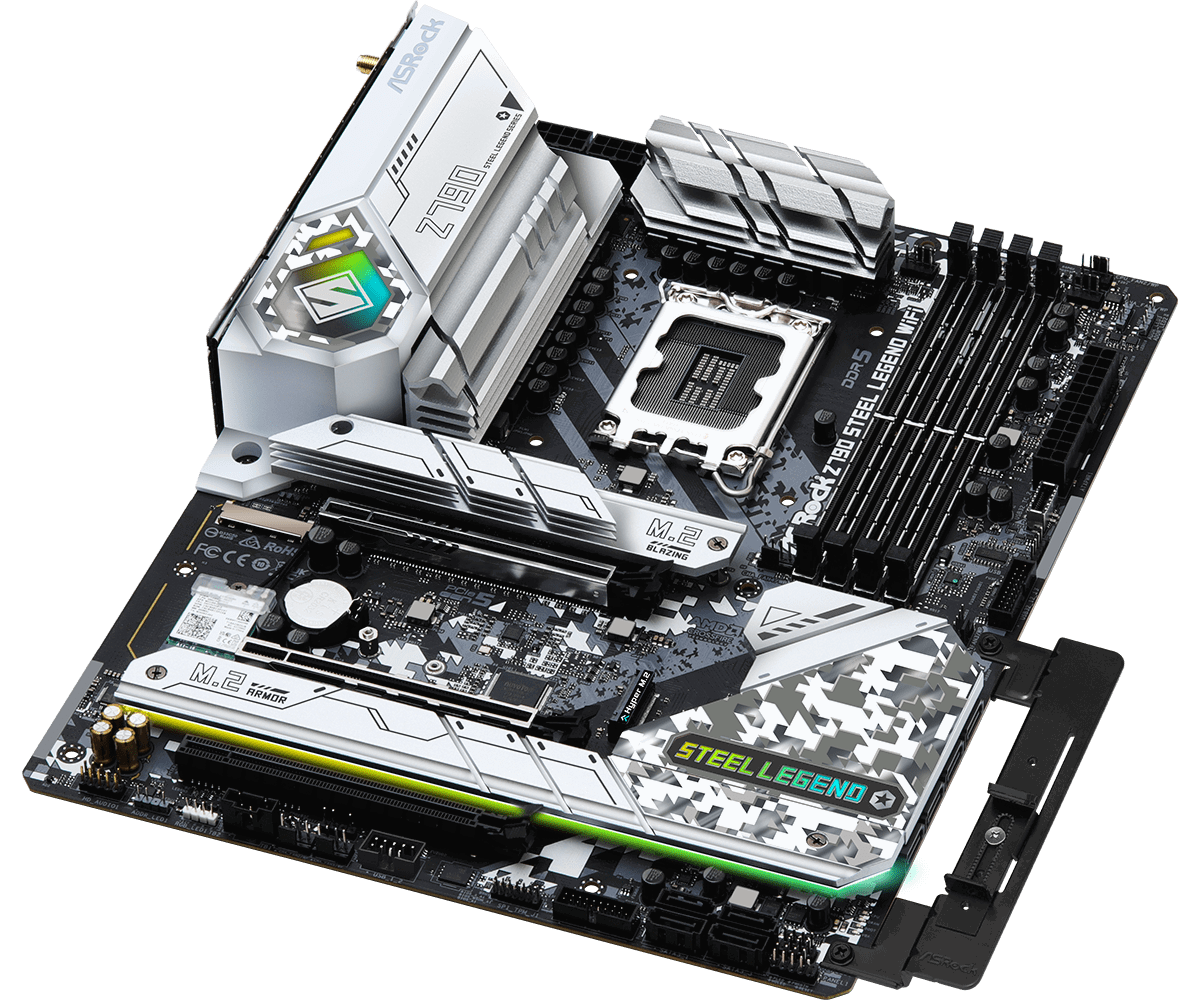

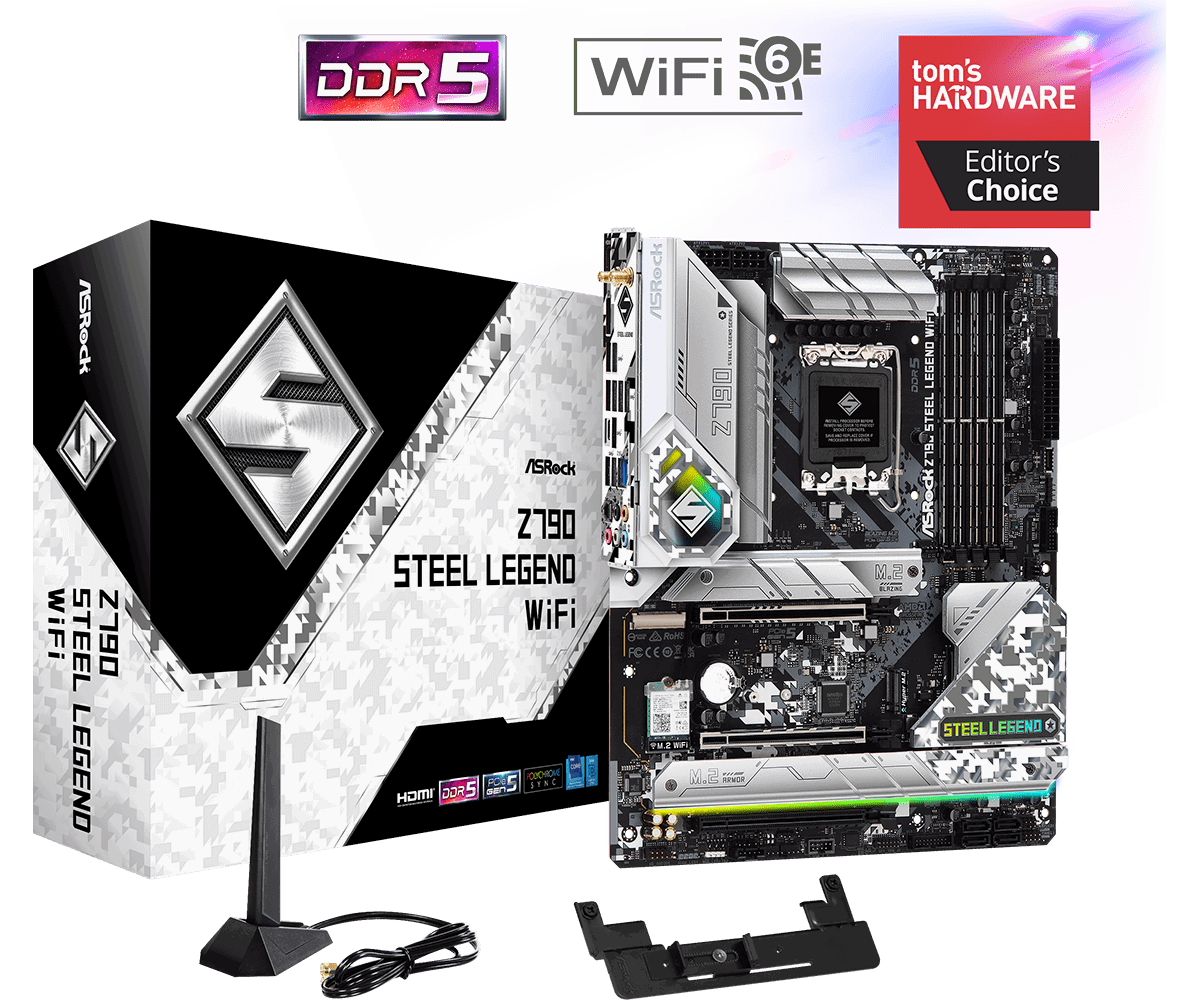

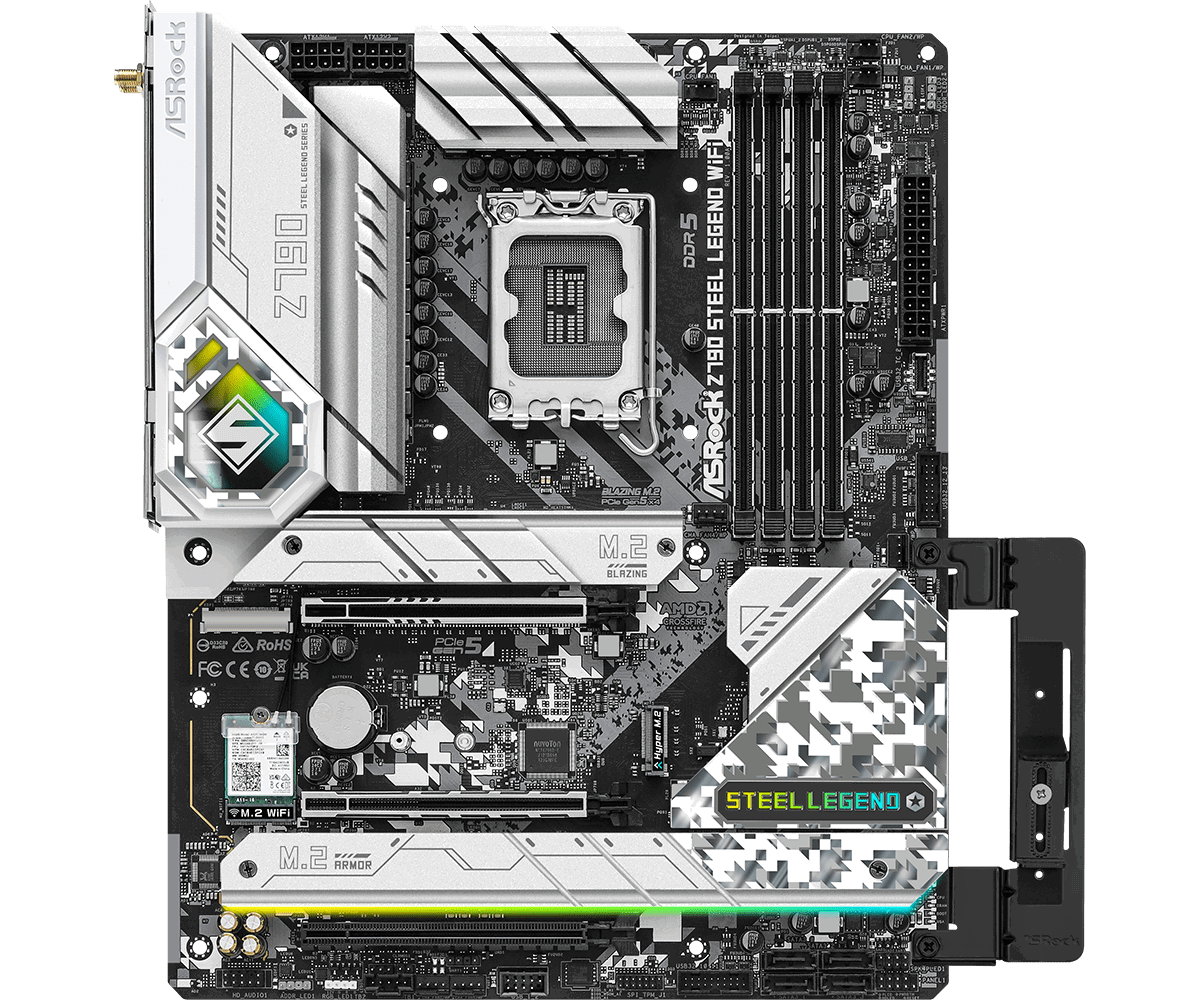

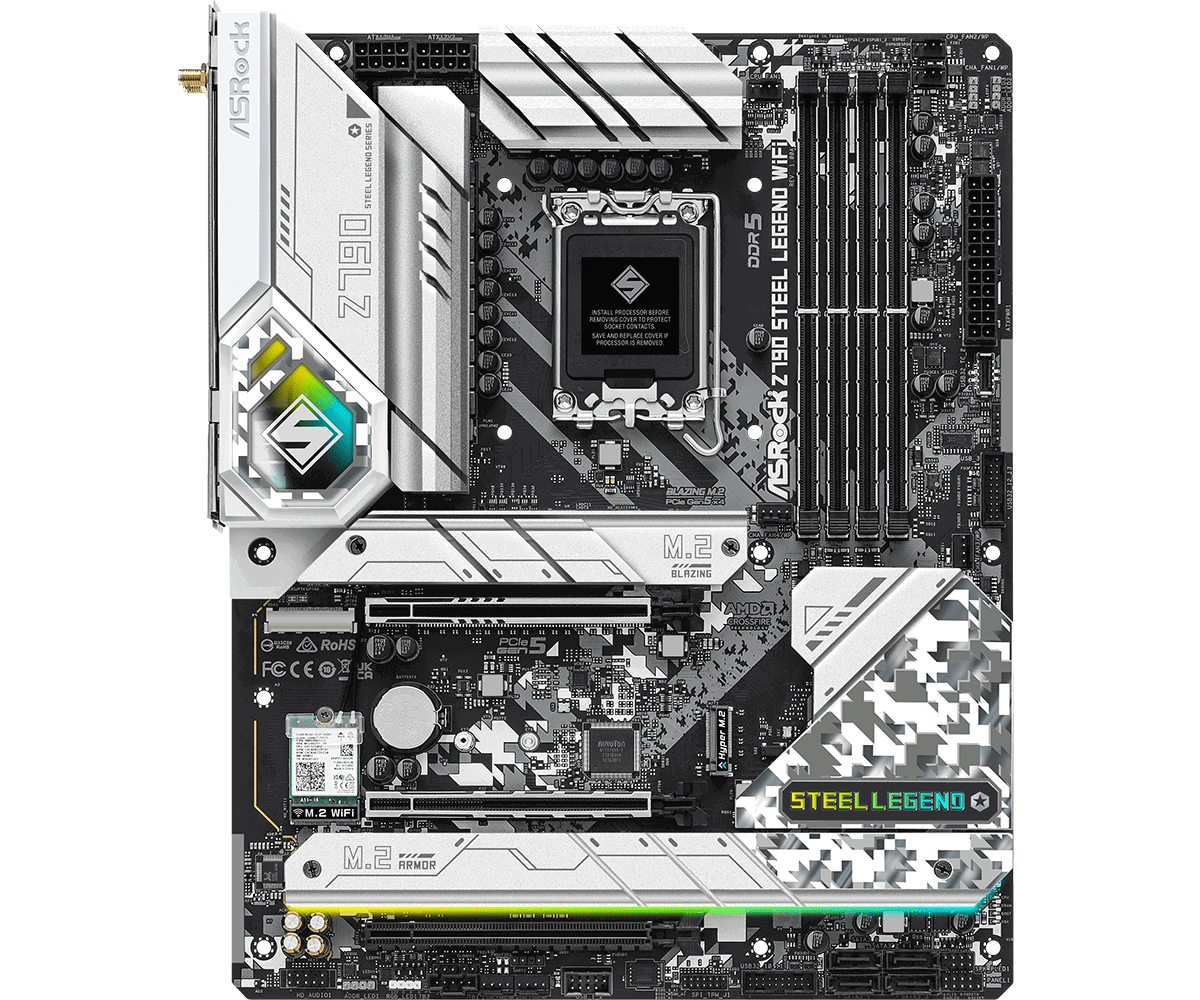

ASROCK Z790 STEEL LEGEND WIFI
EAN:
265,61 €
Цена с включено ДДС
Наложен платеж или банков превод Защитено SSL плащане
Доставка утре до 18:00 при поръчка до 16:00 днес
Основни характеристики
Тип памет
- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC); - Max. capacity of system memory: 192GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
Гаранция
36 Months
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Lan
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
| Тип памет | - Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC); - Max. capacity of system memory: 192GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Гаранция | 36 Months |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio |
| Other | - 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth + High speed class II; - Supports MU-MIMO |
| Чипсет | - Intel® Z790 |
| Съхранение | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 8 x SATA3 6.0 Gb/s Connectors |
| Графика | - Intel® Xe Graphics Architecture (Gen 12); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Connectors | - 1 x eDP Signal Connector; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); - 1 x Front Panel Audio Connector (15? Gold Audio Connector); - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Форм-фактор | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 2oz Copper PCB |

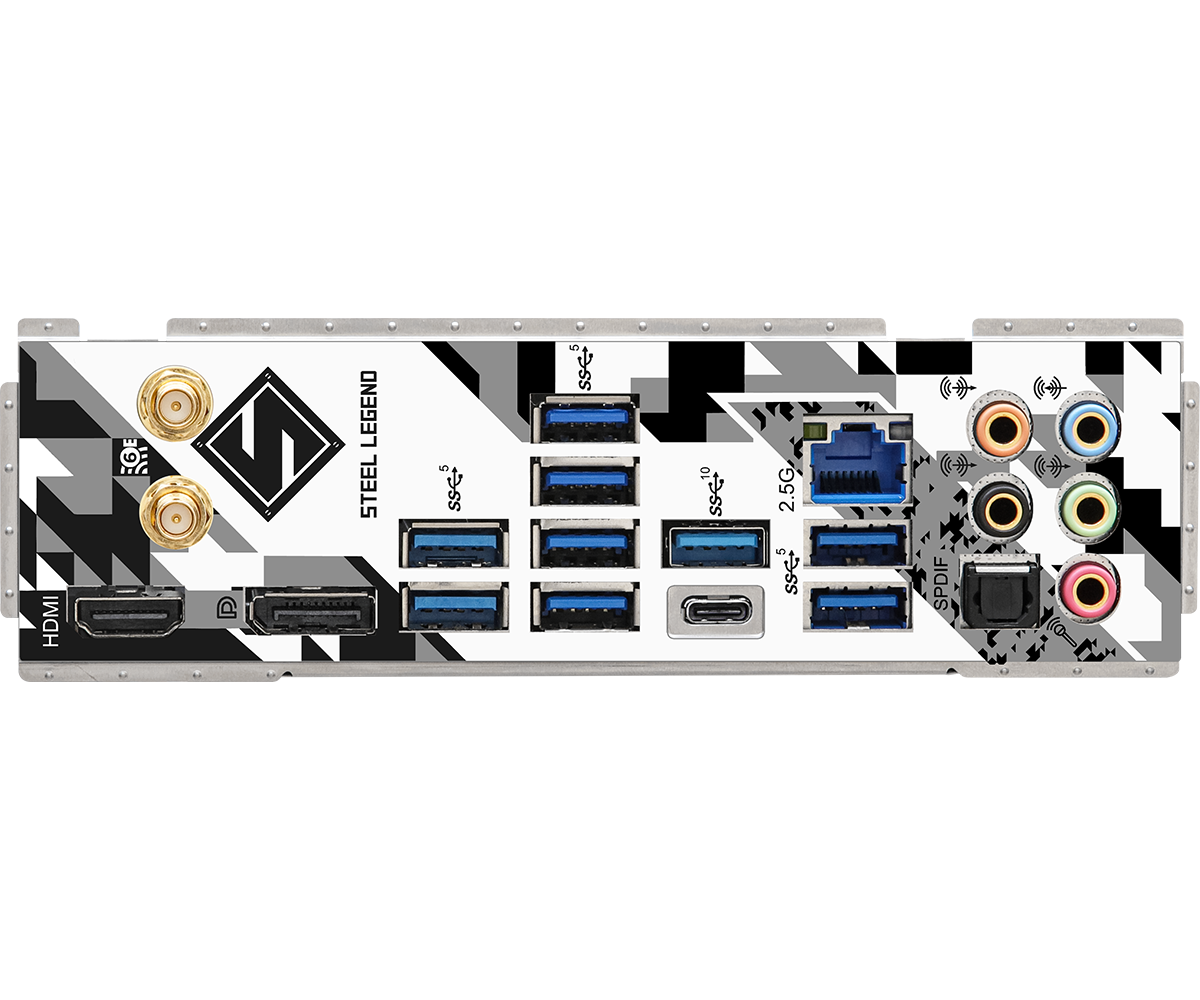

| Rear panel I/O | - 2 x Antenna Ports; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x Optical SPDIF Out Port; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 8 x USB 3.2 Gen1 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Expansion slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire™; - 15? Gold Contact in VGA PCIe Slot (PCIE1) |
| Уебсайт на производителя | https://www.asrock.com/mb/Intel/Z790%20Steel%20Legend%20WiFi/#Specification |
