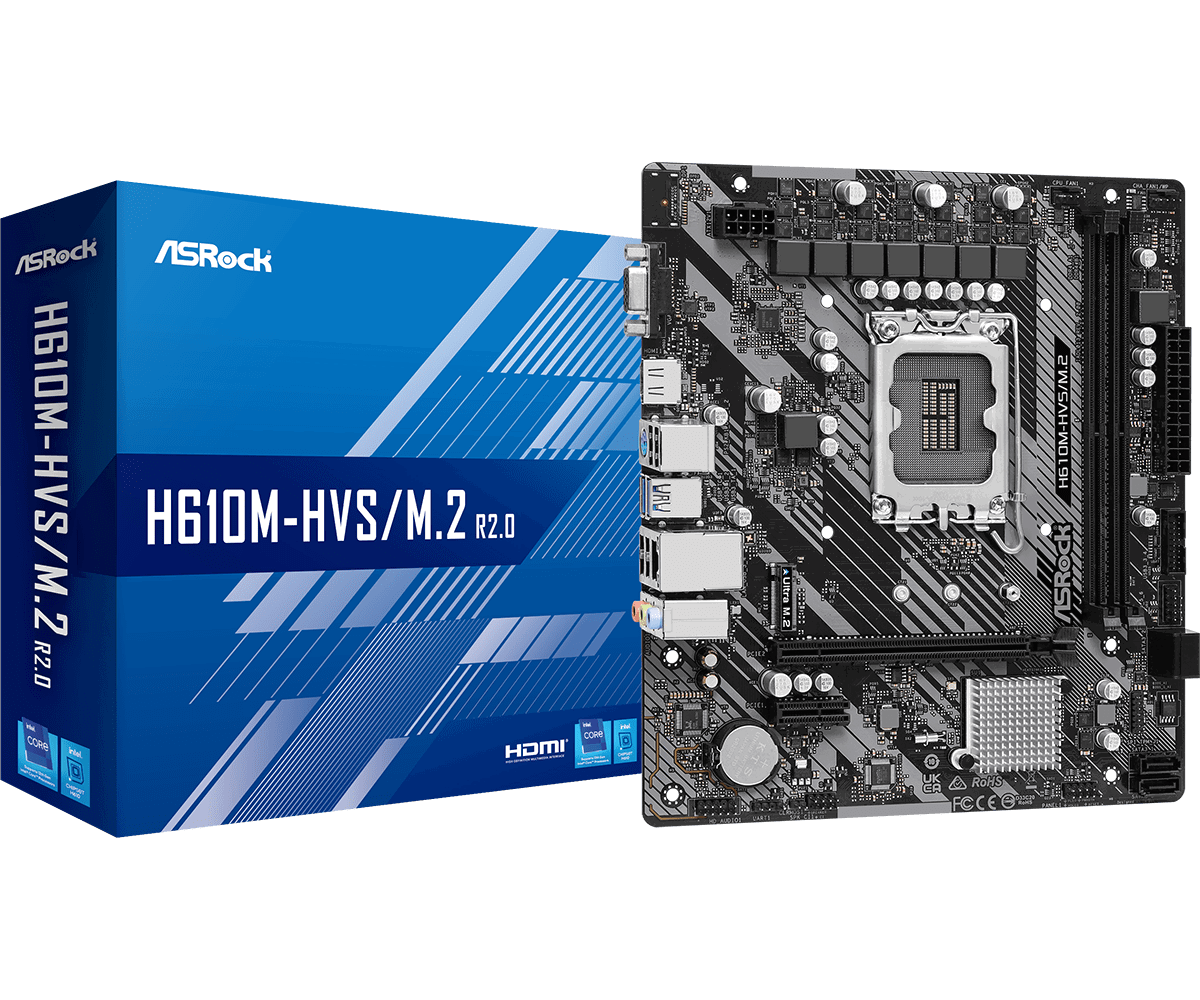

ASROCK H610M-HVS/M.2 R2.0/DDR4

Name: ASROCK H610M-HVS/M.2 R2.0/DDR4
Brand: ASROCK
SKU: 4710483939914
Price: 61.69 EUR
Availability: OutOfStock

EAN: 4710483939914

61,69 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

- Intel® H610

Графика

- Intel® Xe Graphics Architecture (Gen 12); - Dual graphics output: support HDMI and D-Sub ports by independent display controllers; - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

Тип памет

- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 non-ECC, un-buffered memory up to 3200; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0

Expansion slots

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)

Форм-фактор

- Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cm; - Solid Capacitor design

Чипсет	- Intel® H610
Графика	- Intel® Xe Graphics Architecture (Gen 12); - Dual graphics output: support HDMI and D-Sub ports by independent display controllers; - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Тип памет	- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 non-ECC, un-buffered memory up to 3200; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0
Expansion slots	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)
Форм-фактор	- Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cm; - Solid Capacitor design
Connectors	- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Гаранция	36 Months

OS	- Microsoft® Windows® 10 64-bit / 11 64-bit
Lan	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - 1 x Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
Audio	- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec); - Supports Surge Protection
Съхранение	Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors

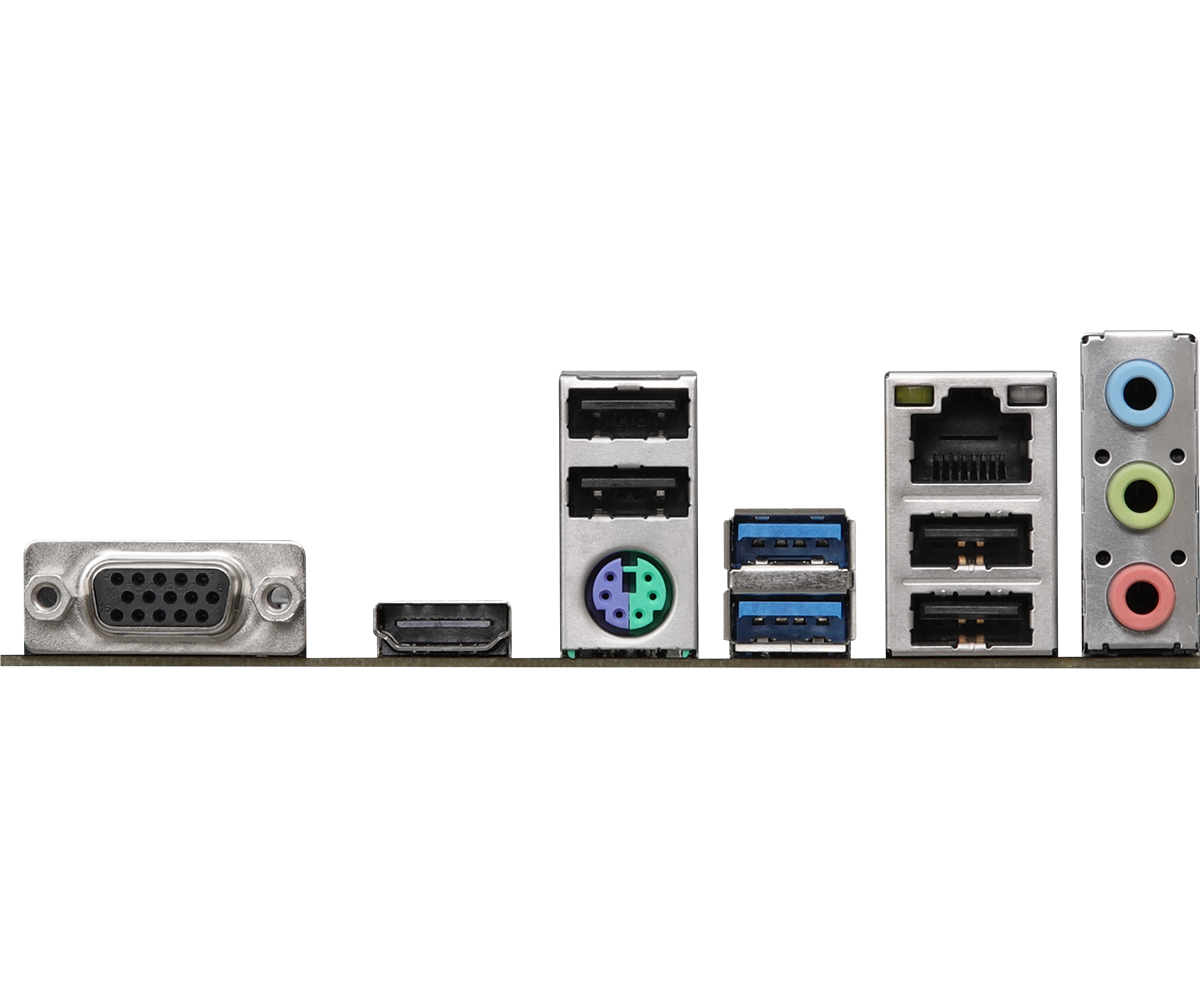

Rear panel I/O	- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 4 x USB 2.0 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Уебсайт на производителя	https://www.asrock.com/MB/Intel/H610M-HVSM.2%20R2.0/index.asp#Specification
