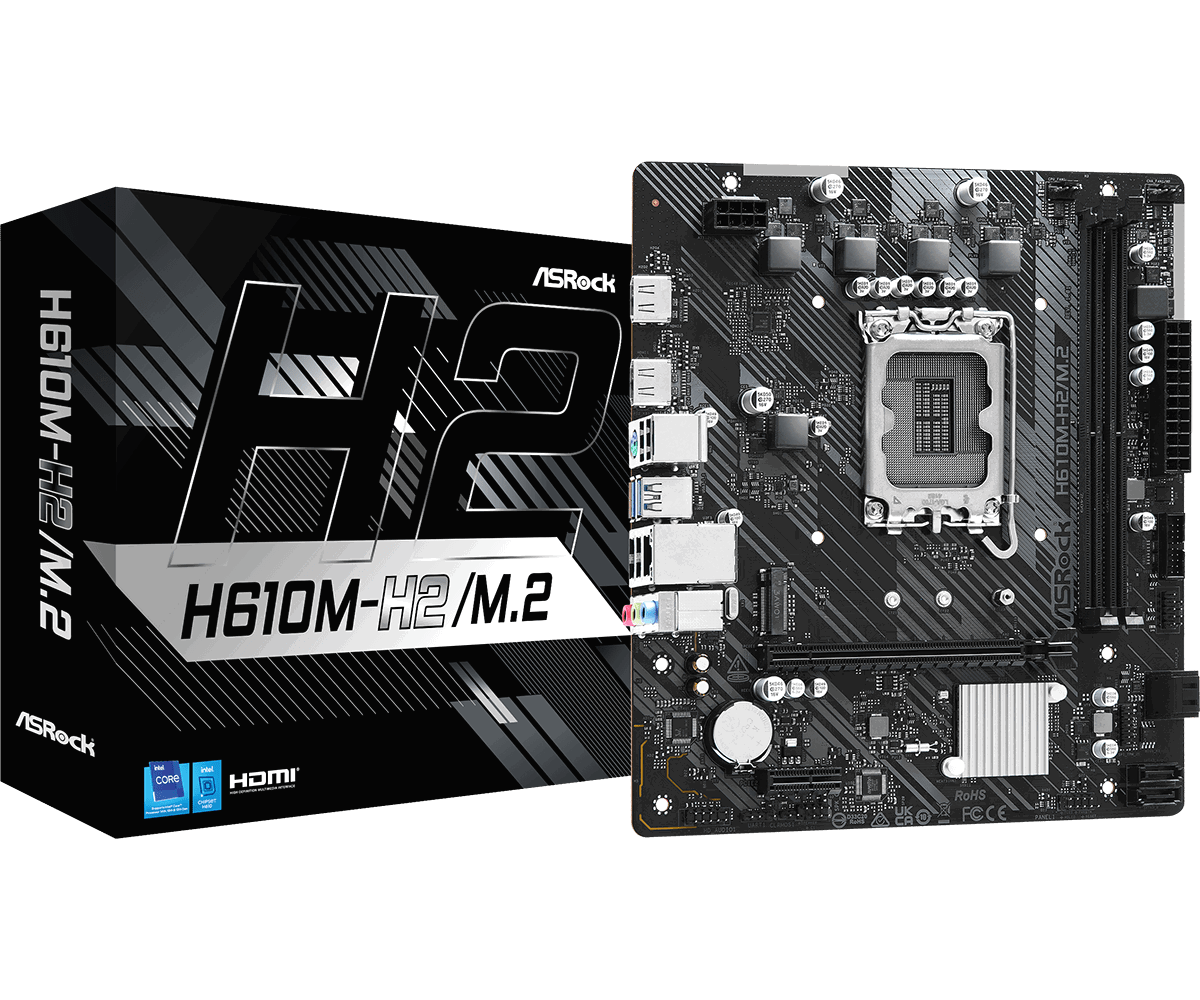

ASROCK H610M-H2/M.2 /DDR4

Name: ASROCK H610M-H2/M.2 /DDR4
Brand: ASROCK
SKU: 4710483946929
Price: 64.04 EUR
Availability: OutOfStock

EAN: 4710483946929

64,04 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® H610

CPU

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700);- Supports Intel® Hybrid Technology;- Supports Intel® Turbo Boost Max 3.0 Technology

Графика

- Intel® Xe Graphics Architecture (Gen 12);- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

Тип памет

- Dual Channel DDR4 Memory Technology;- 2 x DDR4 DIMM Slots;- Supports DDR4 non-ECC, un-buffered memory up to 3200;- Supports ECC UDIMM memory modules (operate in non-ECC mode);- Max. capacity of system memory: 64GB;- Supports Intel® Extreme Memory Profile (XMP) 2.0

Expansion slots

CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 3.0 x1 Slot (PCIE2)

Чипсет	Intel® H610
CPU	- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700);- Supports Intel® Hybrid Technology;- Supports Intel® Turbo Boost Max 3.0 Technology
Графика	- Intel® Xe Graphics Architecture (Gen 12);- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
Тип памет	- Dual Channel DDR4 Memory Technology;- 2 x DDR4 DIMM Slots;- Supports DDR4 non-ECC, un-buffered memory up to 3200;- Supports ECC UDIMM memory modules (operate in non-ECC mode);- Max. capacity of system memory: 64GB;- Supports Intel® Extreme Memory Profile (XMP) 2.0
Expansion slots	CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 3.0 x1 Slot (PCIE2)
Форм-фактор	Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Connectors	- 1 x SPI TPM Header;- 1 x Chassis Intrusion and Speaker Header;- 1 x CPU Fan Connector (4-pin);- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control);- 1 x 24 pin ATX Power Connector;- 1 x 8 pin 12V Power Connector;- 1 x Front Panel Audio Connector;- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports);- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Гаранция	36 Months

OS	Microsoft Windows® 10 64-bit / 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock My Favorites in UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash
Lan	- Gigabit LAN 10/100/1000 Mb/s;- Realtek 8111H
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Съхранение	Chipset;- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors

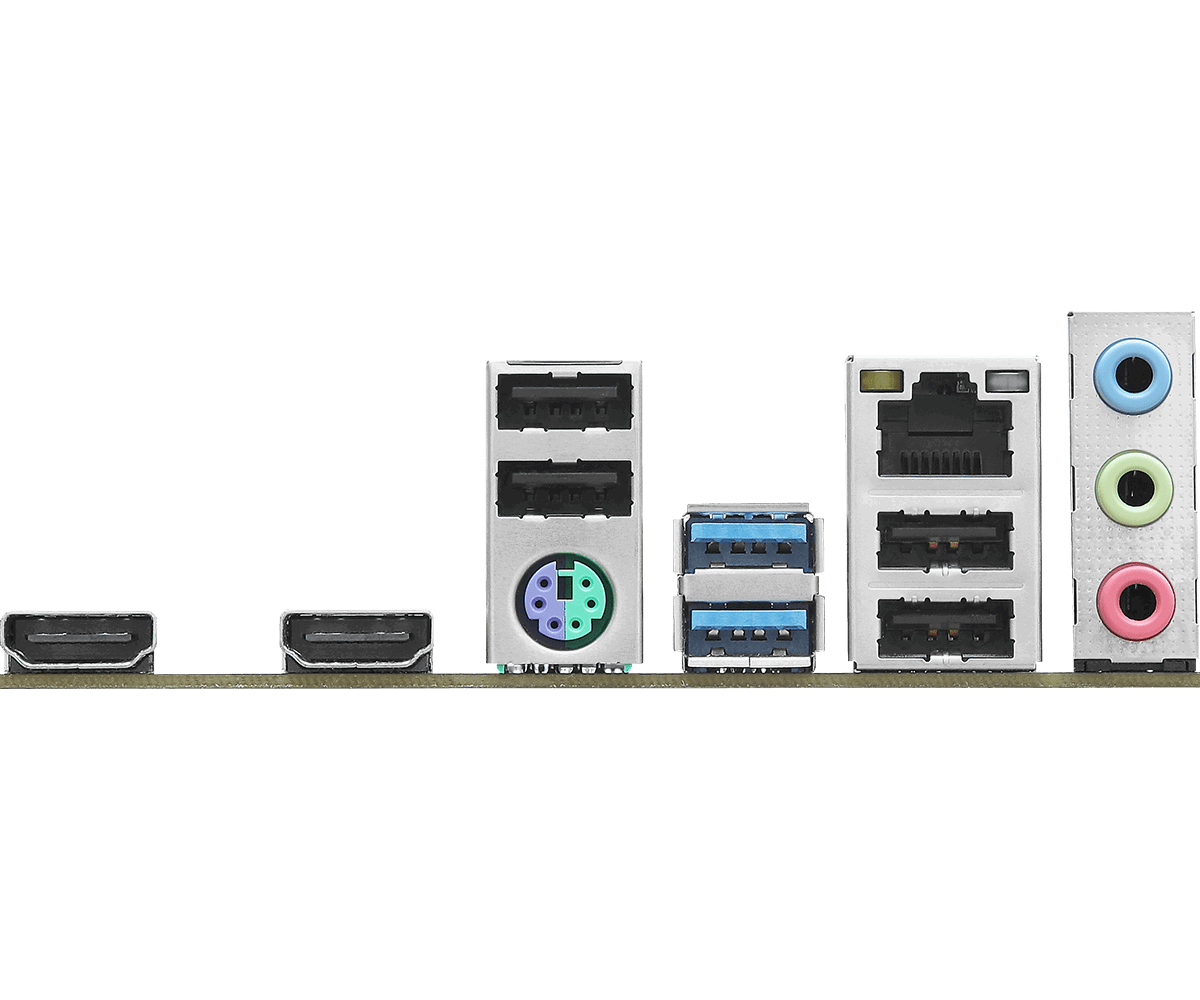

Rear panel I/O	- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front);- 6 x USB 2.0 (4 Rear, 2 Front);- 1 x PS/2 Mouse/Keyboard Port;- 2 x HDMI Ports;- 2 x USB 3.2 Gen1 Type-A Ports;- 4 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- HD Audio Jacks: Line in / Front Speaker / Microphone
Уебсайт на производителя	https://www.asrock.com/mb/Intel/H610M-H2M.2/index.asp
Производител	ASRock
