ASROCK Компоненти Изчерпан

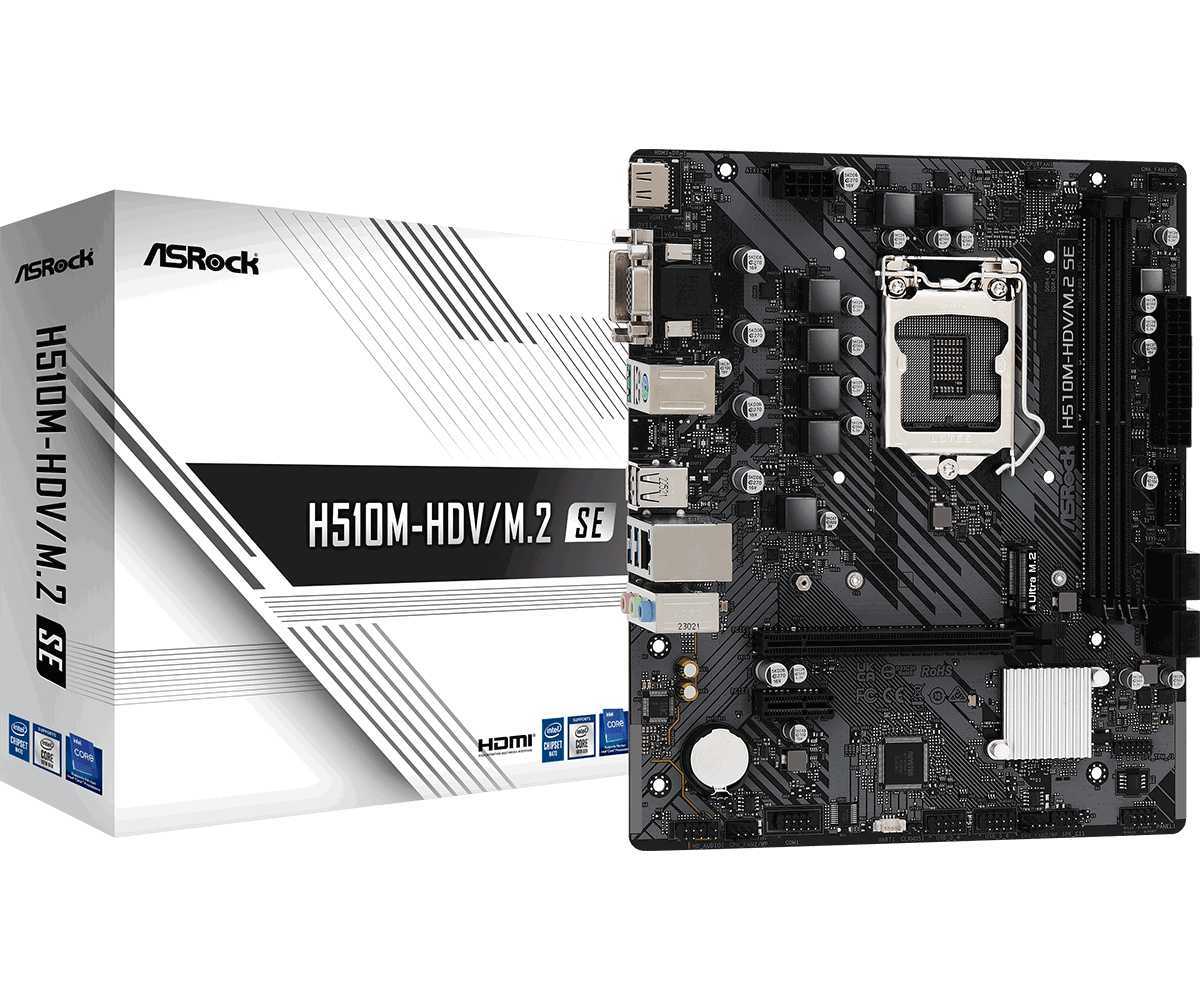

ASROCK H510M-HDV/M.2 SE /1200
EAN: 4710483943126
64,32 €
Цена с включено ДДС
Наложен платеж или банков превод Защитено SSL плащане
Доставка утре до 18:00 при поръчка до 16:00 днес
Основни характеристики
Чипсет
- Intel® H470
Графика
- 1 x HDMI; Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz; Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz; - 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz
Тип памет
- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0; - 15? Gold Contact in DIMM Slots
Expansion slots
Intel® 11th Gen & 10th Gen Processors: - 1 x PCIe 4.0 x16 Slot (PCIE1)*; Intel® 11th Gen Processors support PCIe 4.0 x16; Intel® 10th Gen Processors support PCIe 3.0 x16; Intel® H470 Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
Форм-фактор
- Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm
| Чипсет | - Intel® H470 |
| Графика | - 1 x HDMI; Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz; Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz; - 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz |
| Тип памет | - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0; - 15? Gold Contact in DIMM Slots |
| Expansion slots | Intel® 11th Gen & 10th Gen Processors: - 1 x PCIe 4.0 x16 Slot (PCIE1)*; Intel® 11th Gen Processors support PCIe 4.0 x16; Intel® 10th Gen Processors support PCIe 3.0 x16; Intel® H470 Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* |
| Форм-фактор | - Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm |
| Connectors | - 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Гаранция | 36 Months |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | - Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Съхранение | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors |

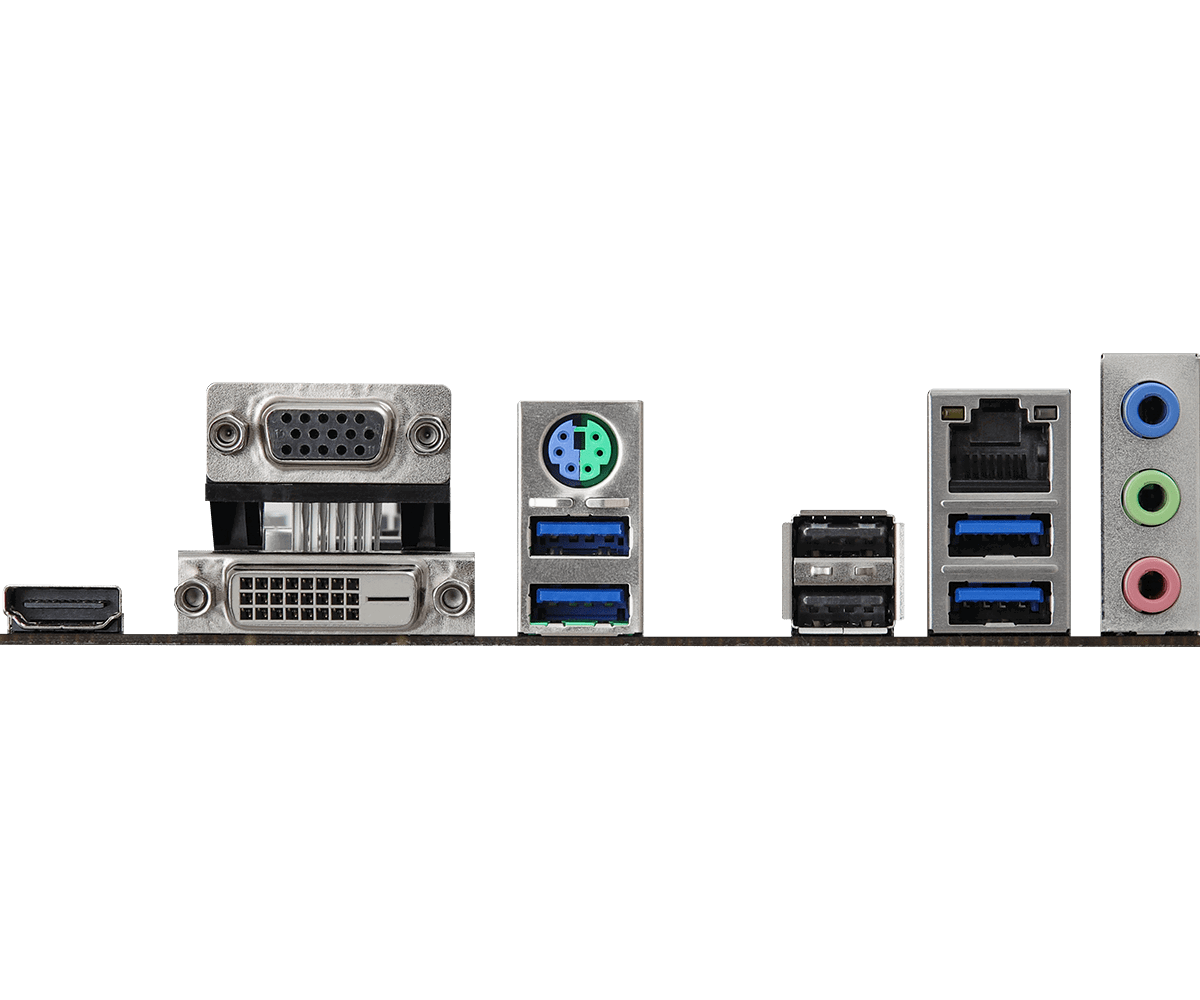

| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 2 x USB 2.0 Ports; - 4 x USB 3.2 Gen1 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Уебсайт на производителя | https://www.asrock.com/MB/Intel/H510M-HDVM.2%20SE/index.asp#Specification |
