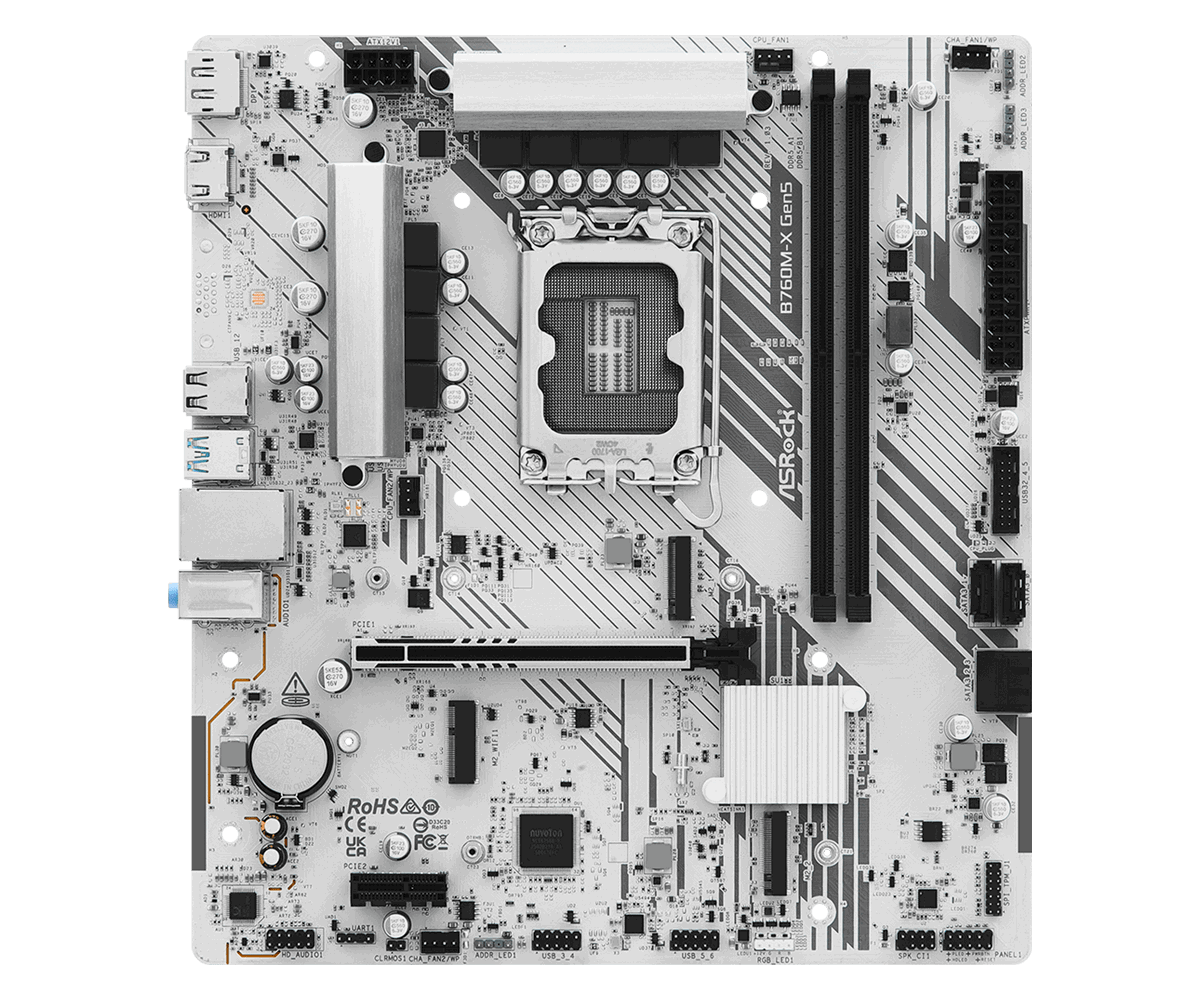

ASROCK B760M-X GEN5

Name: ASROCK B760M-X GEN5
Brand: ASROCK
Price: 94.79 EUR
Availability: InStock

EAN:

94,79 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

Intel® B760

Графика

Intel® Xe Graphics Architecture (Gen 12);1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz;1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Expansion slots

CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 3.0 x1 Slots (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Форм-фактор

Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm

Connectors

1 x SPI TPM Header;1 x Chassis Intrusion and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;1 x CPU Fan Connector (4-pin);1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control;2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;1 x 8 pin 12V Power Connector;1 x Front Panel Audio Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Чипсет	Intel® B760
Графика	Intel® Xe Graphics Architecture (Gen 12);1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz;1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Expansion slots	CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 3.0 x1 Slots (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Форм-фактор	Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm
Connectors	1 x SPI TPM Header;1 x Chassis Intrusion and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;1 x CPU Fan Connector (4-pin);1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control;2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;1 x 8 pin 12V Power Connector;1 x Front Panel Audio Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Гаранция	36 Months
OS	Microsoft Windows® 10 64-bit / 11 64-bit
Lan	2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Customized Priority Control

USB	Chipset:;- 1 x USB 3.2 Gen1 Type-C (Rear);- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front);- 6 x USB 2.0 (2 Rear, 4 Front)
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Съхранение	Chipset:;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

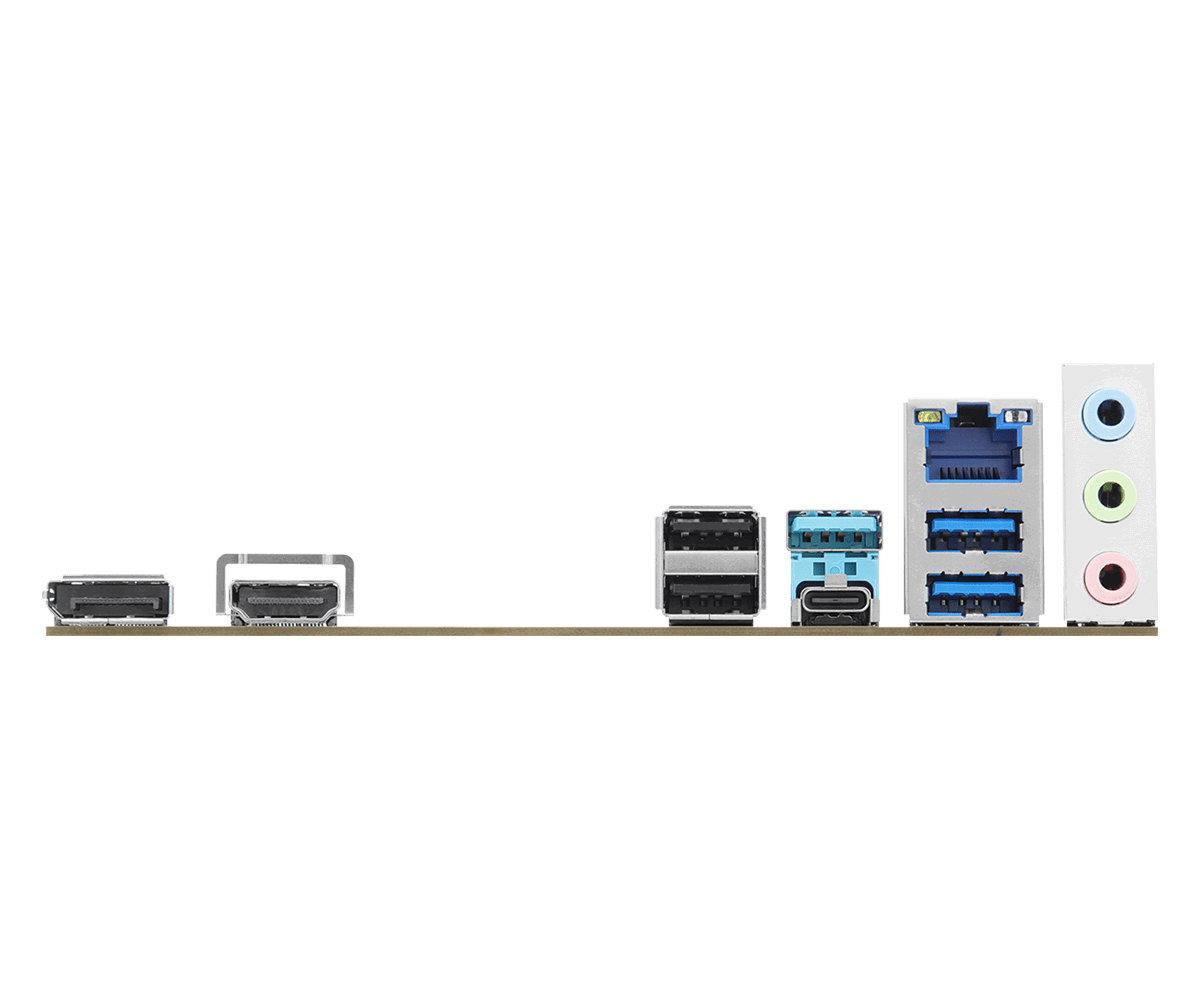

Rear panel I/O	2 x Antenna Mounting Points;1 x HDMI Port;1 x DisplayPort 1.4;1 x USB 3.2 Gen1 Type-C Port;3 x USB 3.2 Gen1 Type-A Ports;2 x USB 2.0 Ports;1 x RJ-45 LAN Port;HD Audio Jacks: Line in / Front Speaker / Microphone
Уебсайт на производителя	https://www.asrock.com/MB/Intel/B760M-X%20Gen5/index.asp
Производител	ASRock
