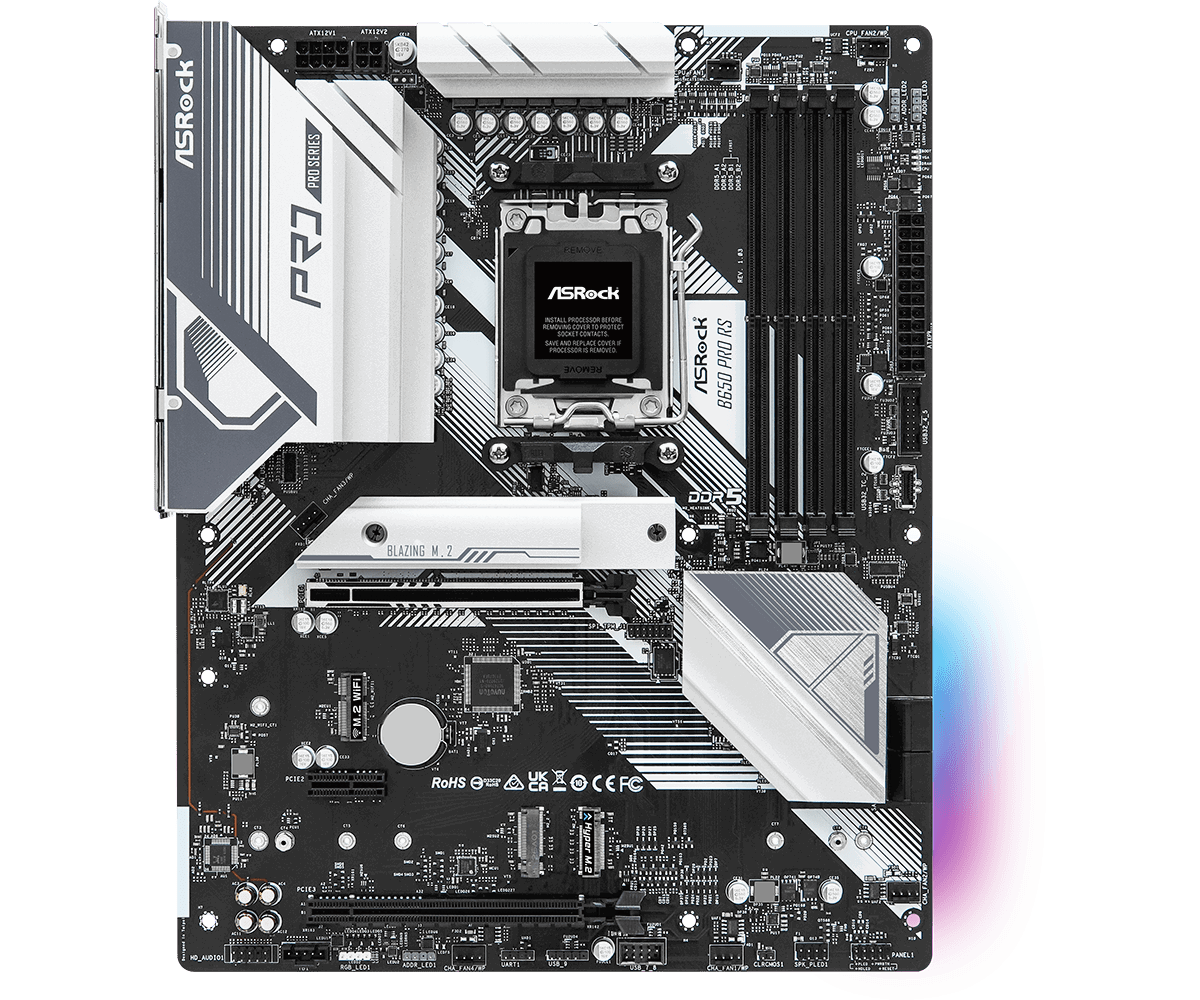

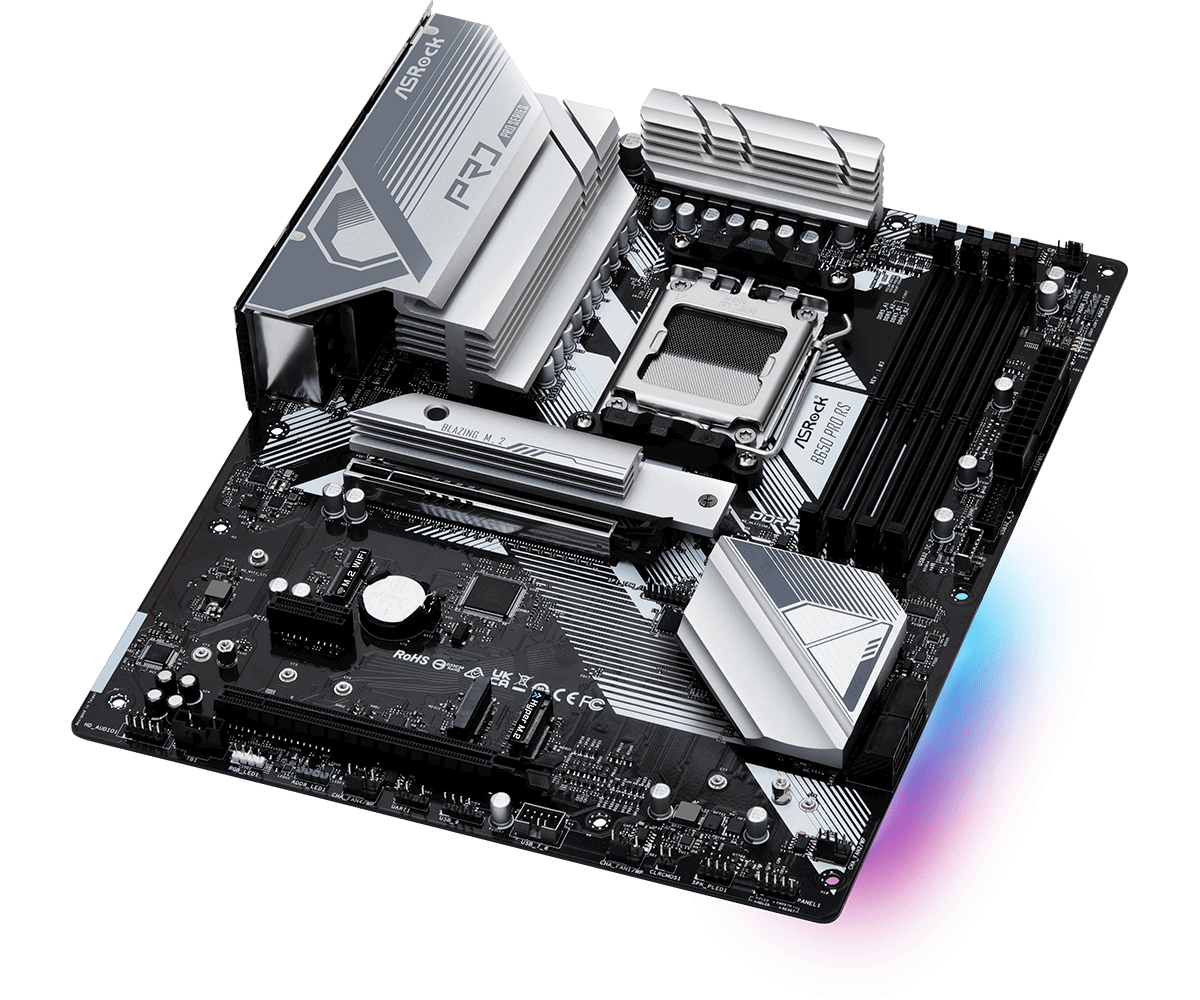

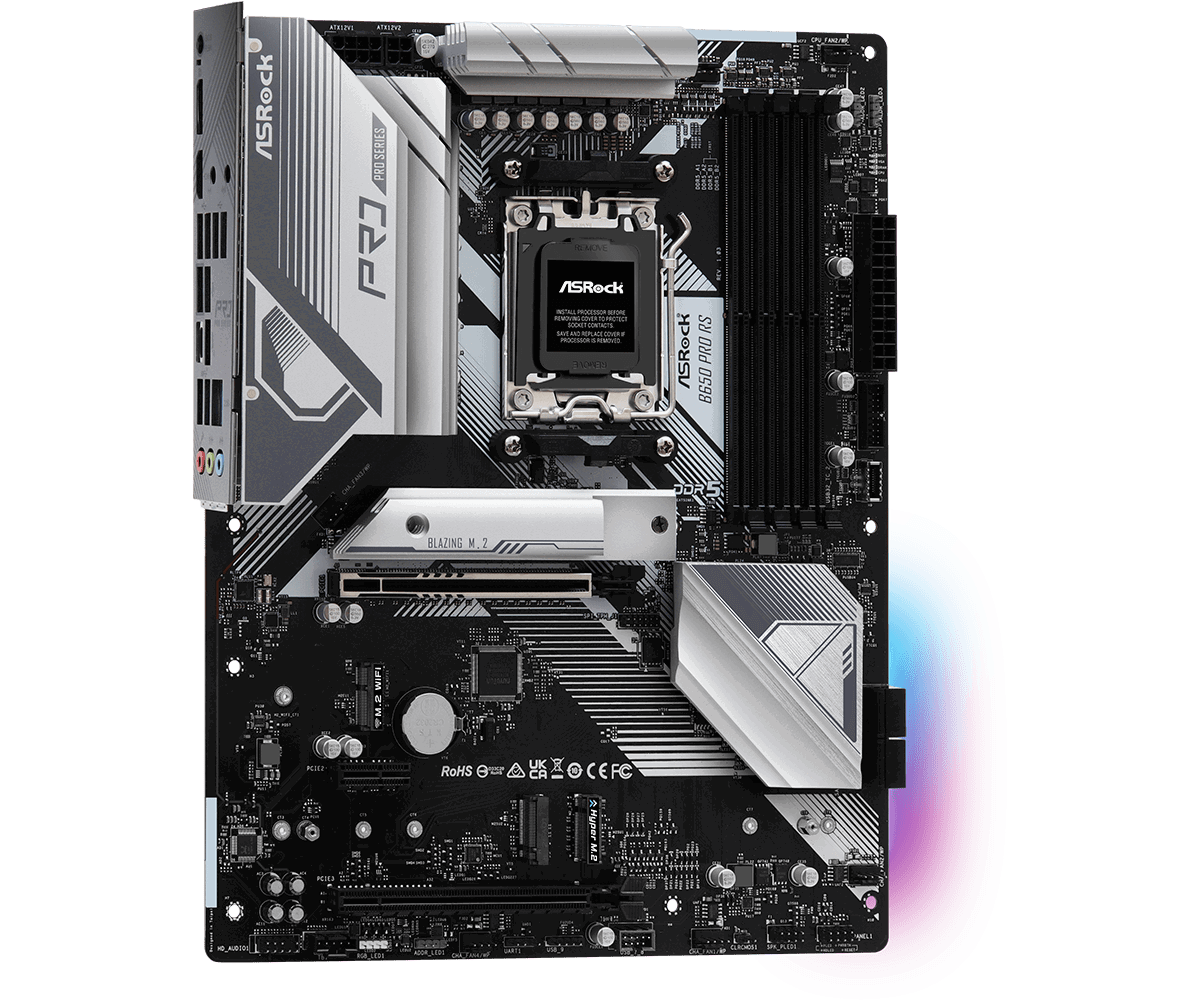

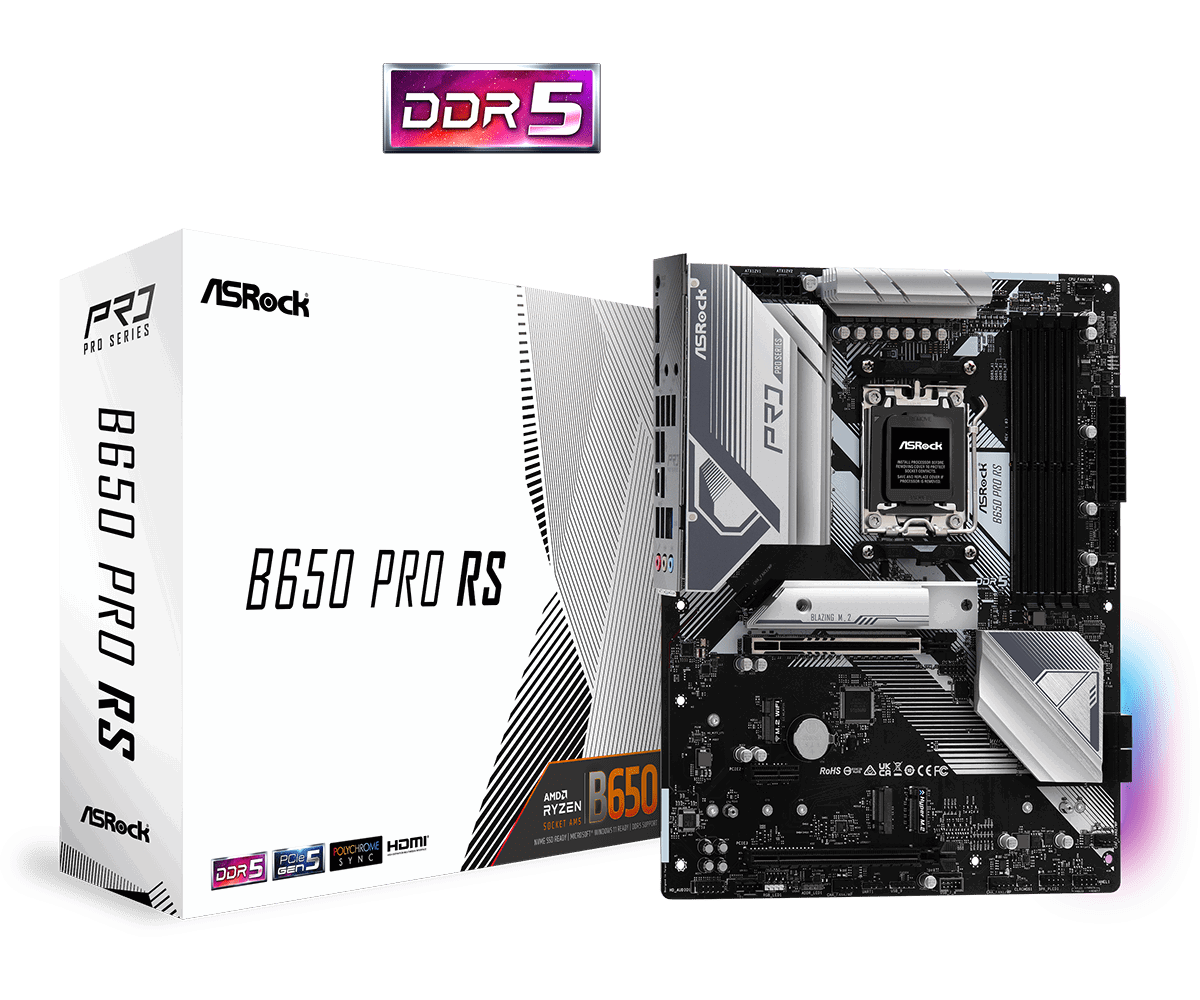

ASROCK B650 PRO RS /AM5

Name: ASROCK B650 PRO RS /AM5
Brand: ASROCK
SKU: 4710483940750
Price: 160.66 EUR
Availability: OutOfStock

EAN: 4710483940750

160,66 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

- AMD B650

Графика

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Тип памет

- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC); - Max. capacity of system memory: 128GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Expansion slots

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*; Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*; - Supports AMD CrossFire™; - 15? Gold Contact in VGA PCIe Slot (PCIE1)

Форм-фактор

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 8 Layer PCB

Чипсет	- AMD B650
Графика	Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Тип памет	- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC); - Max. capacity of system memory: 128GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Expansion slots	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode; Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - Supports AMD CrossFire™; - 15? Gold Contact in VGA PCIe Slot (PCIE1)
Форм-фактор	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 8 Layer PCB
Connectors	- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header; - 3 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x 4 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
Гаранция	36 Months

OS	- Microsoft® Windows® 10 64-bit / 11 64-bit
Lan	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Съхранение	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 2 x SATA3 6.0 Gb/s Connectors; ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors

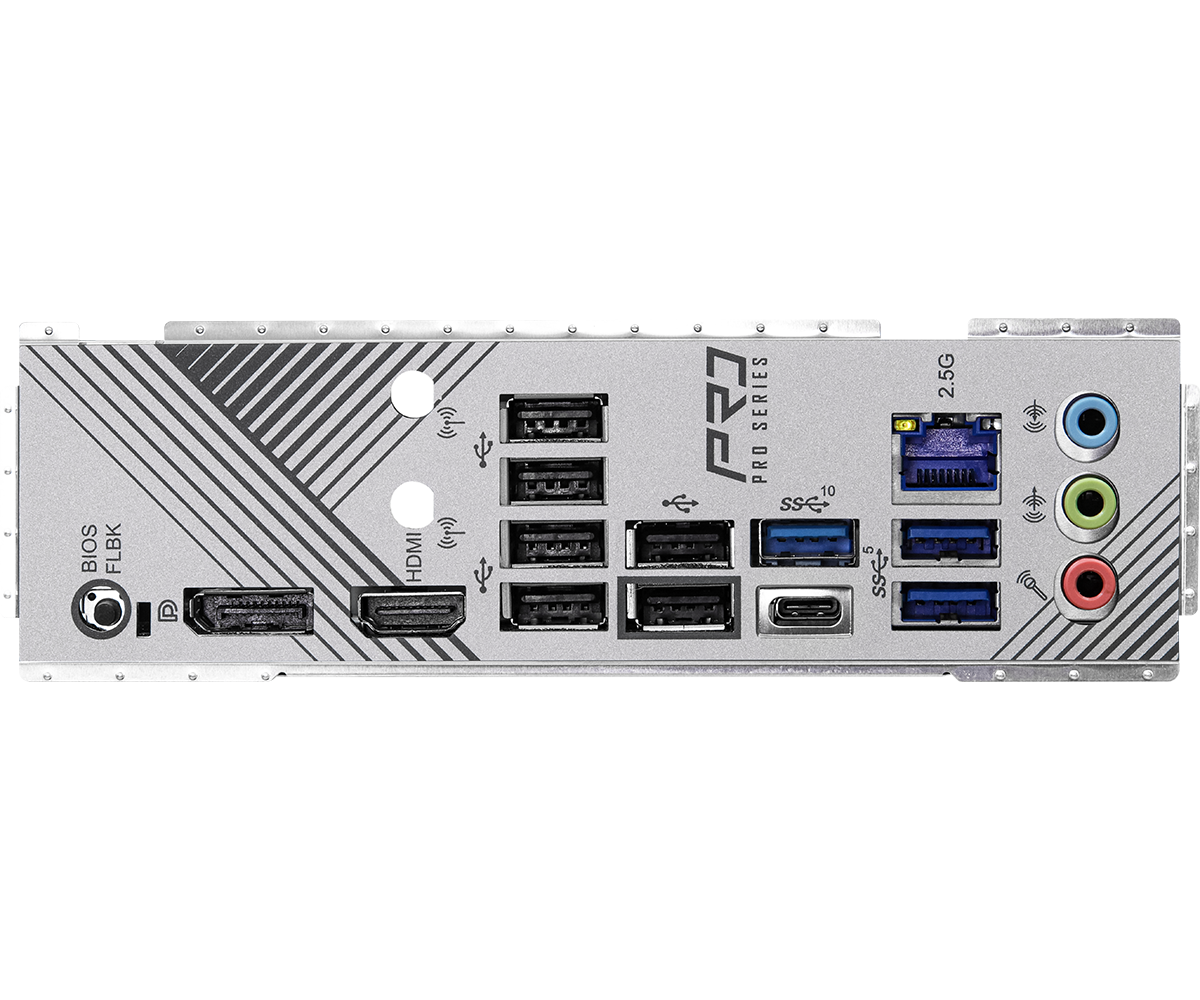

Rear panel I/O	- 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver); - 2 x USB 3.2 Gen1 Ports; - 6 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone
Уебсайт на производителя	https://www.asrock.com/mb/AMD/B650%20Pro%20RS/index.asp#Specification
