ASROCK A620M-HDV/M.2 /AM5

Name: ASROCK A620M-HDV/M.2 /AM5
Brand: ASROCK
Price: 81.61 EUR
Availability: OutOfStock

EAN:

81,61 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

- AMD A620

Графика

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Тип памет

- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC); - Max. capacity of system memory: 96GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Expansion slots

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15? Gold Contact in VGA PCIe Slot (PCIE1)

Форм-фактор

- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm; - 2oz Copper PCB

Чипсет	- AMD A620
Графика	Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Тип памет	- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC); - Max. capacity of system memory: 96GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Expansion slots	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15? Gold Contact in VGA PCIe Slot (PCIE1)
Форм-фактор	- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm; - 2oz Copper PCB
Connectors	- 1 x Power LED and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Гаранция	36 Months

OS	- Microsoft® Windows® 10 64-bit / 11 64-bit
Lan	- Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Съхранение	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes; - 2 x SATA3 6.0 Gb/s Connectors

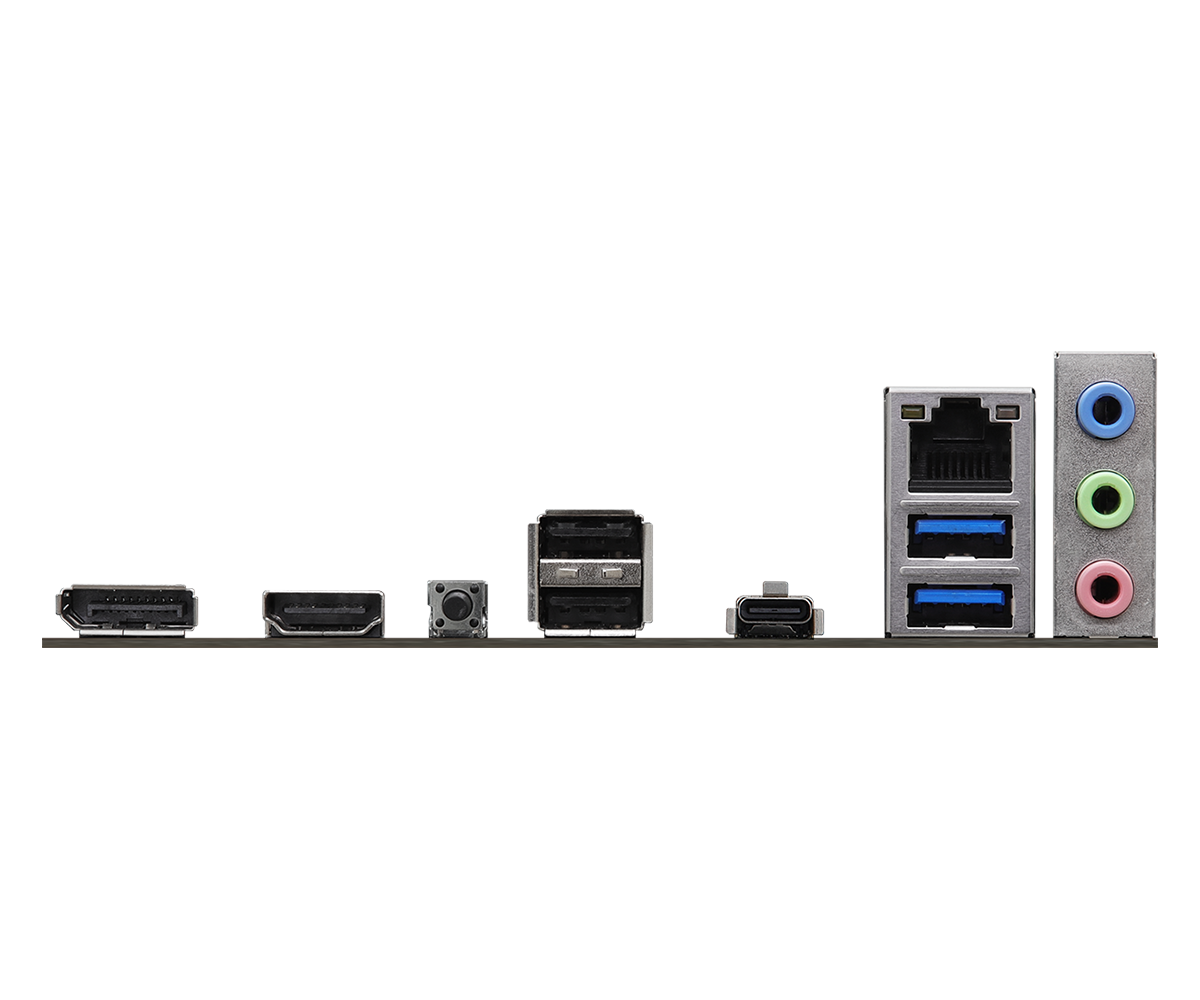

Rear panel I/O	- 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 2 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone
Уебсайт на производителя	https://www.asrock.com/MB/AMD/A620M-HDVM.2/index.asp#Specification
