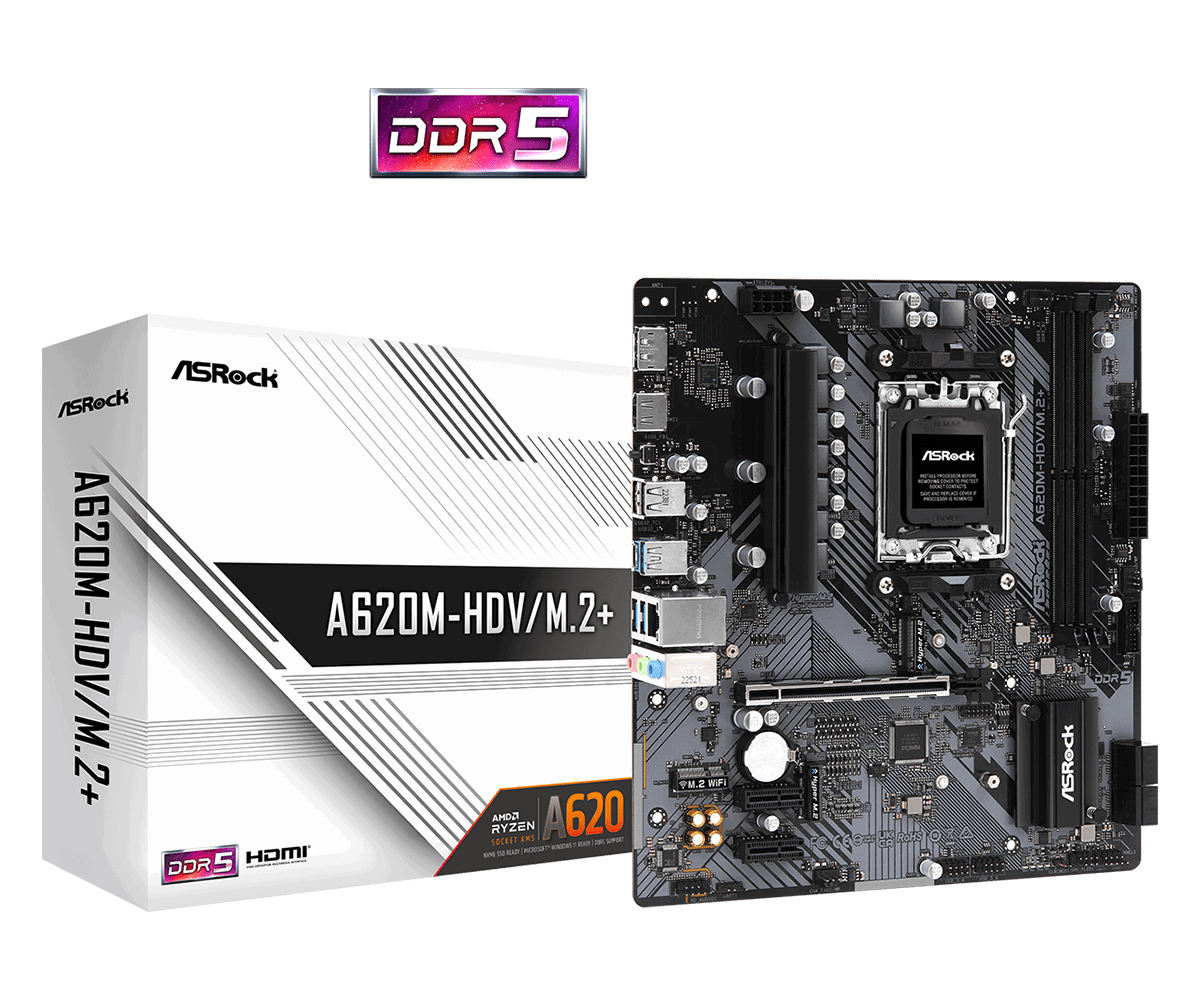

ASROCK A620M-HDV/M.2+

Name: ASROCK A620M-HDV/M.2+
Brand: ASROCK
Price: 96.40 EUR
Availability: OutOfStock

EAN:

96,40 €

Цена с включено ДДС

Наложен платеж или банков превод Защитено SSL плащане

Доставка утре до 18:00 при поръчка до 16:00 днес

Основни характеристики

Чипсет

AMD A620

Графика

Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Тип памет

- Dual Channel DDR5 Memory Technology;- 2 x DDR5 DIMM Slots;- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*;- Max. capacity of system memory: 128GB;- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Expansion slots

CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset;- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- 15? Gold Contact in VGA PCIe Slot (PCIE1)

Форм-фактор

Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

Чипсет	AMD A620
Графика	Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Тип памет	- Dual Channel DDR5 Memory Technology;- 2 x DDR5 DIMM Slots;- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*;- Max. capacity of system memory: 128GB;- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Expansion slots	CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset;- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- 15? Gold Contact in VGA PCIe Slot (PCIE1)
Форм-фактор	Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
Connectors	- 1 x SPI TPM Header;- 1 x Power LED and Speaker Header;- 1 x CPU Fan Connector (4-pin);- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*;- 1 x 24 pin ATX Power Connector;- 1 x 8 pin 12V Power Connector;- 1 x Front Panel Audio Connector;- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports);- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Гаранция	36 Months

OS	Microsoft Windows® 10 64-bit / 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);UEFI;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash
Lan	- Gigabit LAN 10/100/1000 Mb/s;- Realtek RTL8111H
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec);- Nahimic Audio
Съхранение	CPU;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset;- 4 x SATA3 6.0 Gb/s Connectors;- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

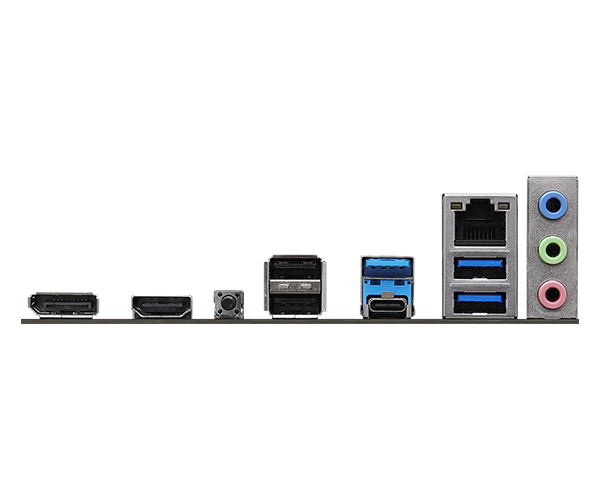

Rear panel I/O	- 1 x USB 3.2 Gen1 Type-C (Rear);- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front);- 6 x USB 2.0 (2 Rear, 4 Front);- 2 x Antenna Mounting Points;- 1 x HDMI Port;- 1 x DisplayPort 1.4;- 1 x USB 3.2 Gen1 Type-C Port;- 3 x USB 3.2 Gen1 Type-A Ports;- 2 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- 1 x BIOS Flashback Button;- HD Audio Jacks: Line in / Front Speaker / Microphone
Уебсайт на производителя	https://www.asrock.com/mb/AMD/A620M-HDVM.2+/index.asp
